Preparation for Use
TP04100A Interface & Applications
Rev
A: 0611 5/98
/?.,
A TEMPTRONlC
TII CORPORATION
2-12 System Input/Output Panels

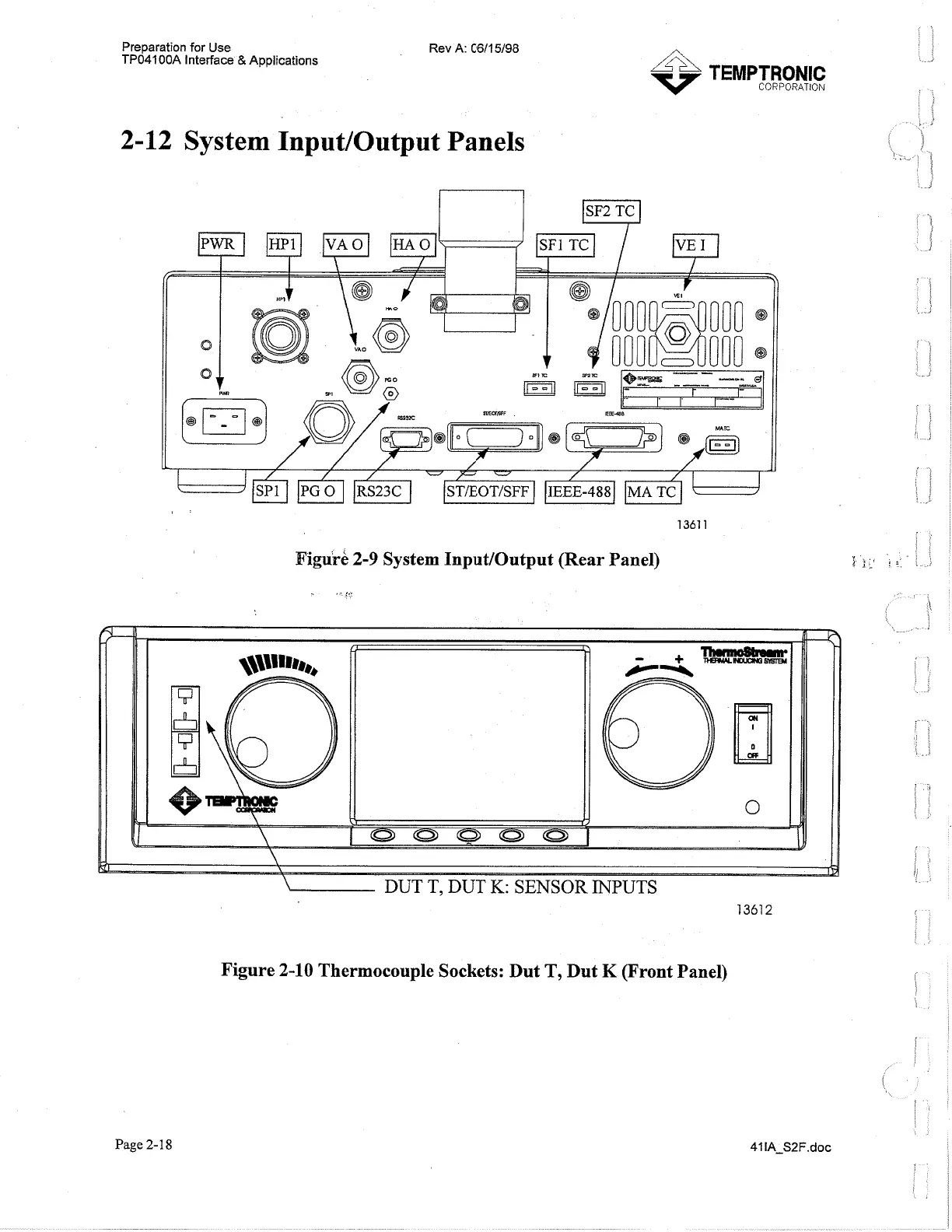

FigurC 2-9 System Input/Output (Rear Panel)
4tc
Page 2-18
Figure 2-10 Thermocouple Sockets: Dut T, Dut K (Front Panel)
