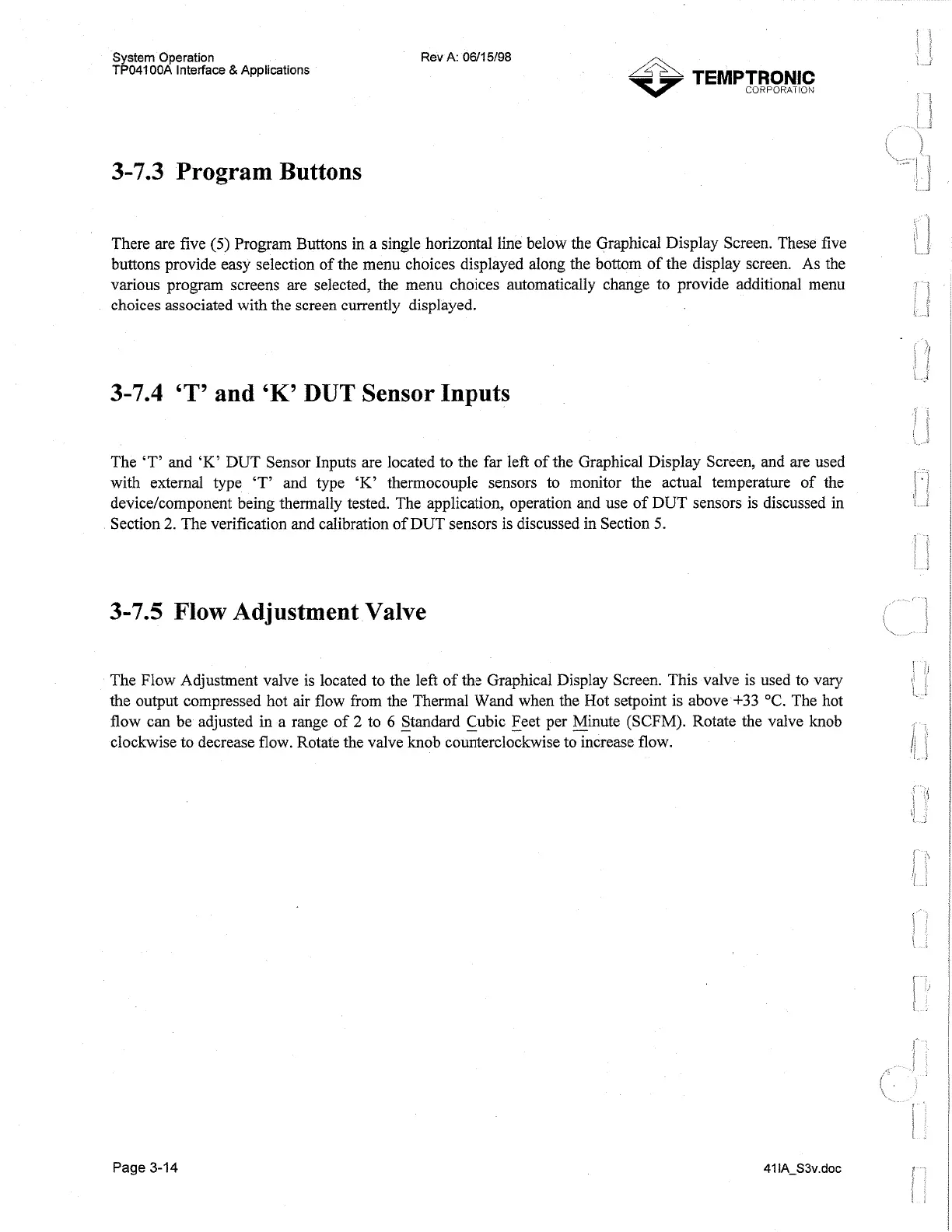

System Operation
TP04100A Interface
&
Applications
Rev
A: 0611
5/98
3-7.3 Program Buttons
There are five
(5)
Program Buttons in a single horizontal line below the Graphical Display Screen. These five
buttons provide easy selection of the menu choices displayed along the bottom of the display screen. As the
various program screens are selected, the menu choices automatically change to provide additional menu
choices associated with the screen currently displayed.
3-7.4 'T' and
'K'
DUT Sensor Inputs
The 'T' and
'K'
DUT Sensor Inputs are located to the far left of the Graphical Display Screen, and are used
with external type 'T' and type 'K' thermocouple sensors to monitor the actual temperature of the
device/component being thermally tested. The application, operation and use of DUT sensors is discussed in
Section
2.
The verification and calibration of DUT sensors is discussed in Section
5.
3-7.5 Flow Adjustment Valve
The Flow Adjustment valve is located to the left of the Graphical Display Screen. This valve is used to vary
the output compressed hot air flow from the Thermal Wand when the Hot setpoint is above
+33
"C.
The hot
flow can be adjusted in a range of
2
to
6
Standard Cubic Feet per Minute (SCFM). Rotate the valve knob
clockwise to decrease flow. Rotate the valveknob co~terclockwise to increase flow.
Page
3-14
