Tenda O6 User Manual

Web UI login
- 13 -
3.2 Layout of web UI

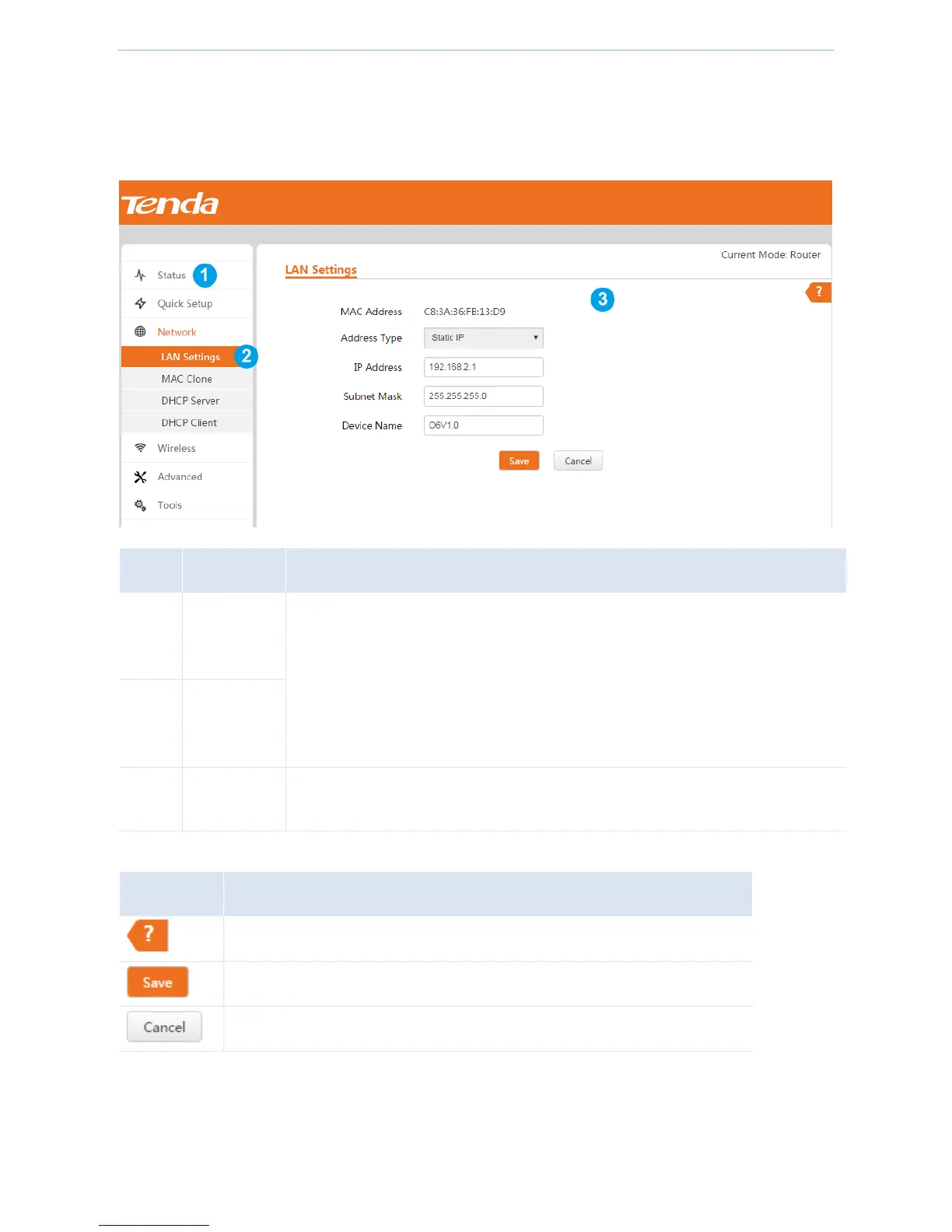

This web UI is divided into three parts: primary navigation bar, secondary navigation bar and configuration area,
described as follows.
Item
Name
Description
❶
Primary
Navigation
bar
The navigation bar organizes the device’s menu of all functions in the form of a
navigation tree. You can choose the function menu from the navigation bar with
selection result shown in the configuration area.
❷
Secondary
Navigation
bar
❸
Configuration
area
The area is used to configure and view settings.
The following table shows the commonly used buttons of the web UI.
Item
Description
Click the button to view the help info if you meet any problems during the setup.
Click the button to apply your settings.
Click the button to clear the settings you are editing.

Tenda O6 Specifications

General

Internal	No
Placement	Wall
Reset button	Yes
Certification	FCC/CE/RoHS
Product color	White
LED indicators	Status
International Protection (IP) code	IP67
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Channel bandwidth	35 MHz
Transmitting power	1 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current	0.5 A
AC input voltage	24 V
Power consumption (max)	9 W
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	16 dBi
USB 2.0 ports quantity	0
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.5 mm
Width	94.9 mm
Height	270 mm
