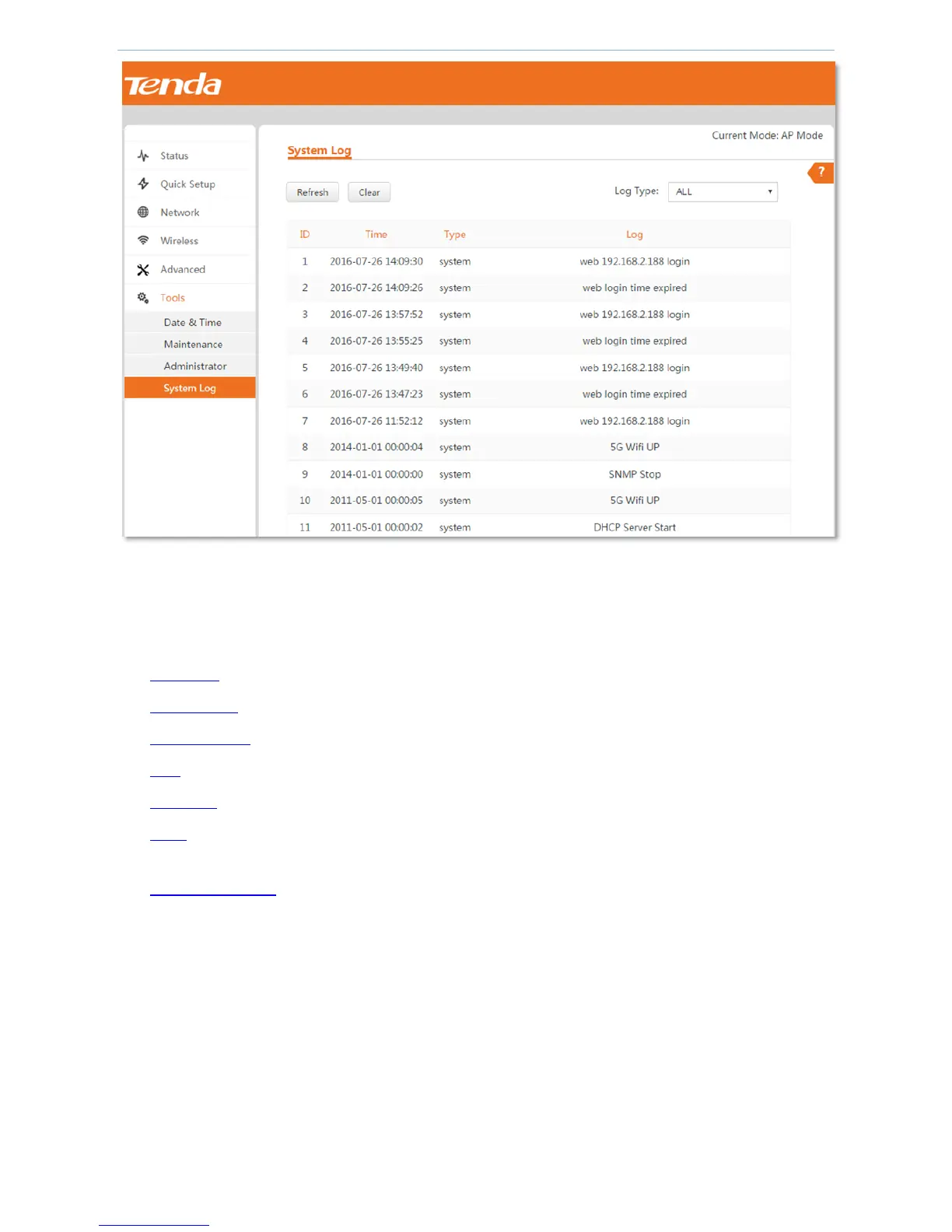

Web UI Functions
-65-
4.7 Other Functions in Router Mode
Other functions in router mode contain the following contents:
MAC Clone: Modify AP WAN MAC address.
Traffic Control: Set the user's minimum uploading rate and maximum downloading rate in a specified LAN.
Port Forwarding: Set port forwarding to enable Internet users to access intranet resources.
DMZ: Enable a host in the intranet to implement bidirectional unlimited communication with the Internet.
MAC Filter: Set limitations on a specified client from surfing the Internet.
DDNS: Establish a mapping relation between a changed WAN IP address of the device and a fixed domain
name. You need only to access this domain name during remote access.
Remote Web Access: Set Internet users' authority to access the device.
4.7.1 MAC Clone
You can try to clone the MAC address if you cannot access the Internet after performing settings on router mode.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda O6 and is the answer not in the manual?

Tenda O6 Specifications

General IconGeneral
InternalNo
PlacementWall
Reset buttonYes
CertificationFCC/CE/RoHS
Product colorWhite
LED indicatorsStatus
International Protection (IP) codeIP67
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Channel bandwidth35 MHz
Transmitting power1 dBmW
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates10, 100, 1000 Mbit/s
Maximum data transfer rate433 Mbit/s
Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current0.5 A
AC input voltage24 V
Power consumption (max)9 W
Antenna featuresIntegrated antenna
Antennas quantity1
Antenna gain level (max)16 dBi
USB 2.0 ports quantity0
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth67.5 mm
Width94.9 mm
Height270 mm
