Web UI Functions
-49-

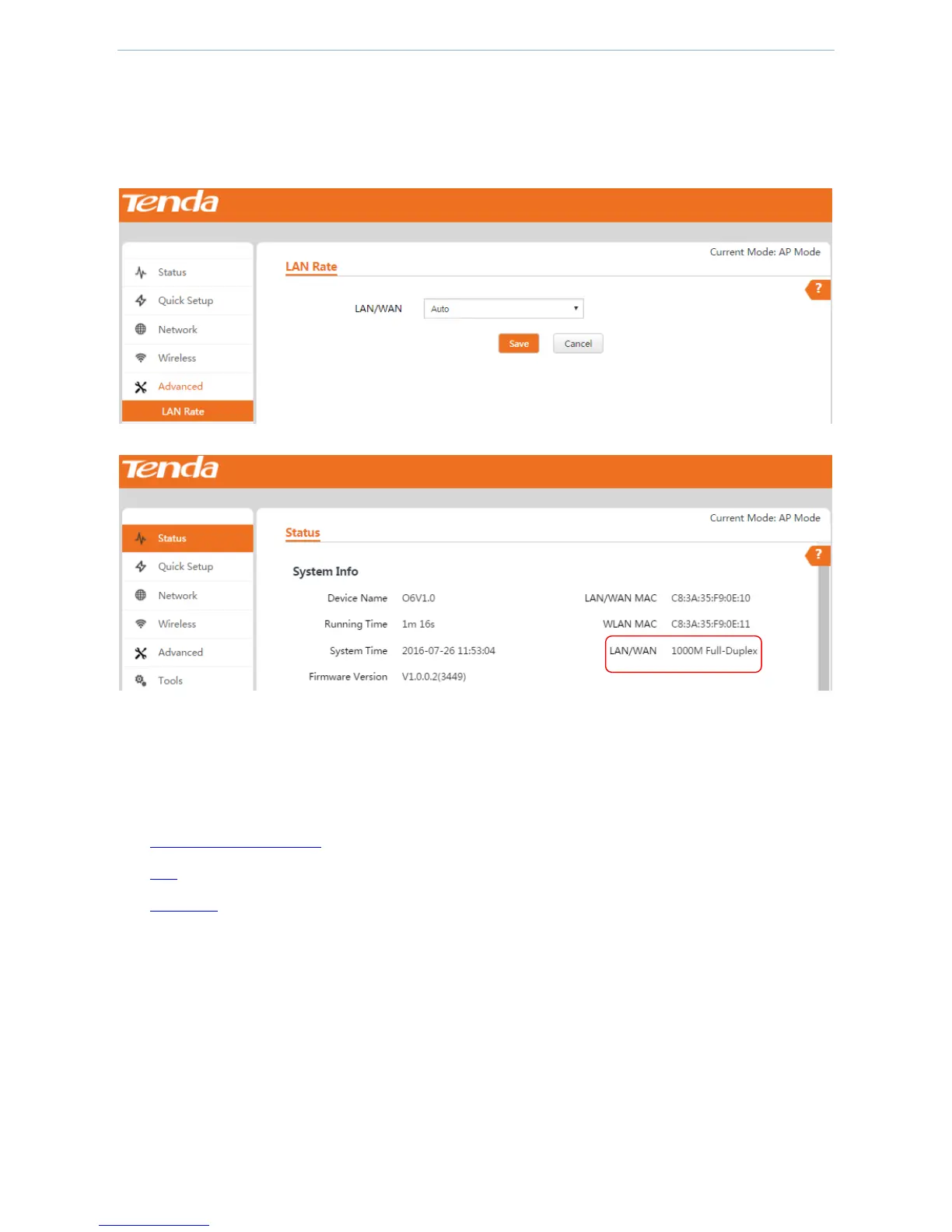

4.5.1 LAN Rate
On this page, you can select a transmission rate for the PoE LAN/WAN port. Make sure two connected devices
have the same rate. We recommend that you keep the default value, Auto, if you are not familiar with this
parameter.
If you want to see the current rate of the PoE LAN/WAN port, go to page Status and check the LAN/WAN status.
4.5.2 Diagnose
The device provides several diagnose tools to detect the network connection, including scanning signal (site
survey), ping and traceroute.
Site Survey: Scanning signal
Ping
Traceroute

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda O6 and is the answer not in the manual?

Tenda O6 Specifications

General IconGeneral
InternalNo
PlacementWall
Reset buttonYes
CertificationFCC/CE/RoHS
Product colorWhite
LED indicatorsStatus
International Protection (IP) codeIP67
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Channel bandwidth35 MHz
Transmitting power1 dBmW
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates10, 100, 1000 Mbit/s
Maximum data transfer rate433 Mbit/s
Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current0.5 A
AC input voltage24 V
Power consumption (max)9 W
Antenna featuresIntegrated antenna
Antennas quantity1
Antenna gain level (max)16 dBi
USB 2.0 ports quantity0
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth67.5 mm
Width94.9 mm
Height270 mm
