Tenda O6 User Manual

Web UI Functions
-17-

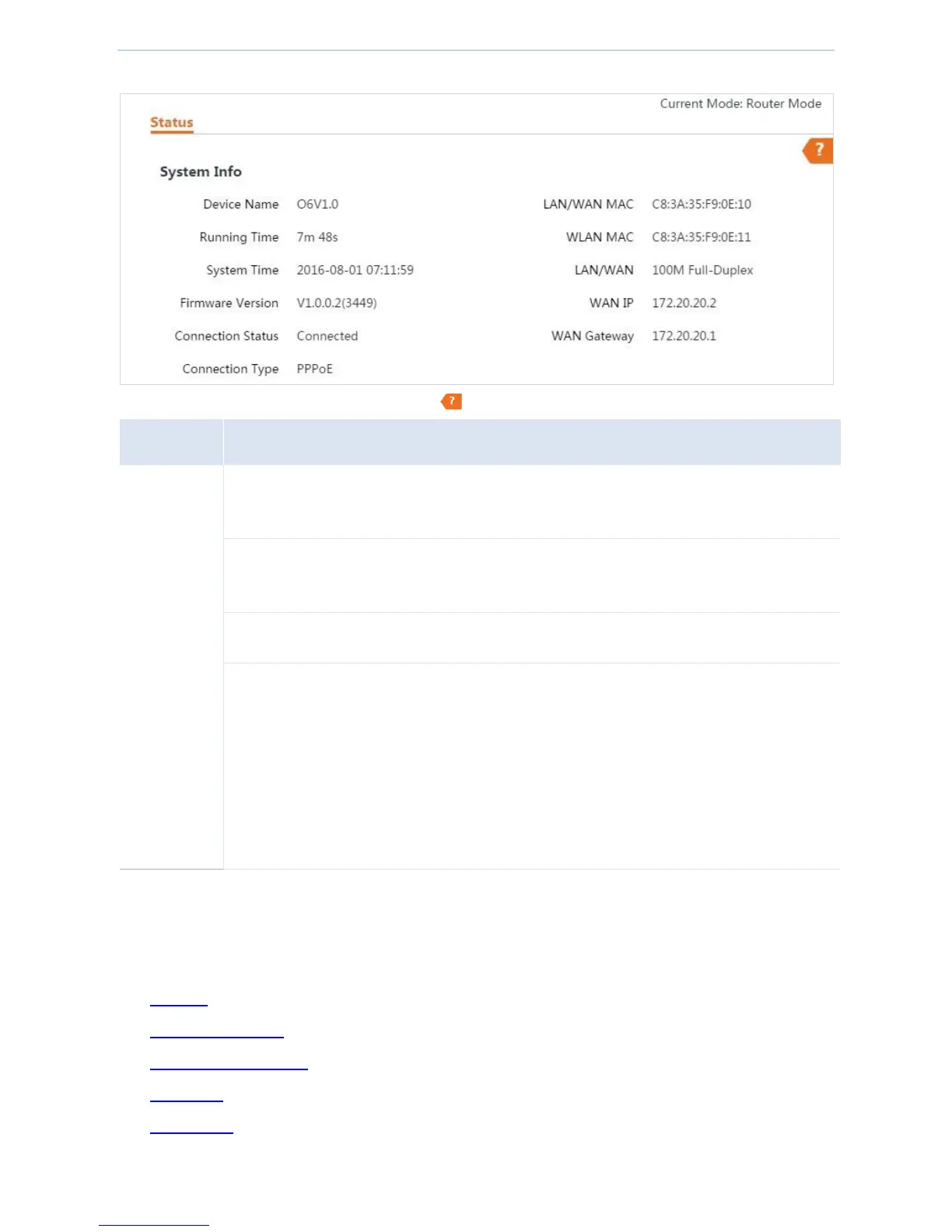

When the device works in router mode, the system info is displayed as follows:
Parameter Description (part of): (You can also click on the upper right page to get help.)
Parameter
Description
System Info
WAN IP: WAN IP address obtained from the upper DHCP server. When the device works in
router mode, the PoE LAN/WAN port works as WAN port.
WAN Gateway: Gateway address of the device. When the device accesses to an external
network, its data packets are forwarded by this gateway.
Connection Status: Current network connection status of the device.
Connection Type: Current connection type of the device. The device supports three connection
types, as follows:
 DHCP: WAN port of the device obtains an IP address from the upper DHCP server.
 Static IP: WAN port is connected through fixed IP address, subnet mask, default gateway, and
DNS server information.
 PPPoE: WAN port is dialed up through user name and password.
4.2 Quick setup
This device supports the following operation modes and the default operation mode is AP mode.
 AP Mode
 Station (Client) Mode
 Universal Repeater Mode
 WISP Mode
 Router Mode

Tenda O6 Specifications

General

Internal	No
Placement	Wall
Reset button	Yes
Certification	FCC/CE/RoHS
Product color	White
LED indicators	Status
International Protection (IP) code	IP67
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Channel bandwidth	35 MHz
Transmitting power	1 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current	0.5 A
AC input voltage	24 V
Power consumption (max)	9 W
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	16 dBi
USB 2.0 ports quantity	0
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.5 mm
Width	94.9 mm
Height	270 mm
