Tenda O6 User Manual

Get to Know the Device
- 5 -
1.3 Hardware descriptions

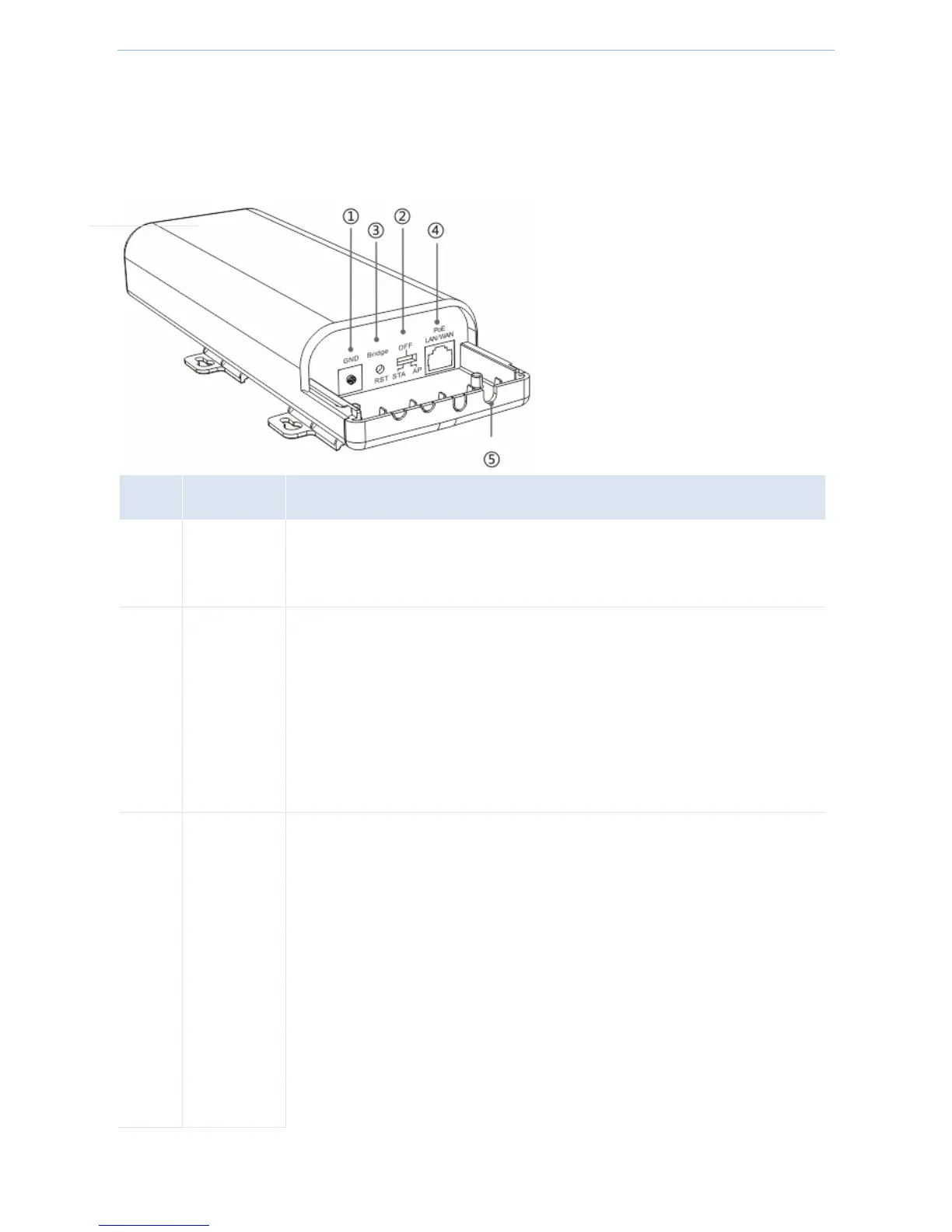

1.3.1 Front panel
Item
Port / Button
Description
①
GND
Used to protect the device from surge and lightning. To achieve that, please connect
the GND port to the grounding bar of a building with a grounding cable and the
included grounding screw.
②
OFF/STA/AP
Used to adjust operation mode of the device.
 OFF: the default position. When it is on OFF position, you can change
operation mode through web UI.
 STA: When it is on STA position, the device only works at station mode and you
can't change the operation mode through web UI.
 AP: When it is on AP position, the device only works at AP mode and you can't
change the operation mode through web UI.
③
Bridge/RST
Used to bridge two devices or reset the device.
 To bridge two devices:
1. Press and hold this button for 3~7 seconds on an O6 that works in AP
mode. When you release the button, LED1/LED2/LED3 starts blinking.
2. Within two minutes, press and hold this button for 3~7 seconds on
another O6 that works in Station mode. When you release the button,
LED1/LED2/LED3 starts blinking and the two devices start to bridge.
LED1/LED2/LED3 of the two devices will light off and when they light and keep
solid, it indicates that the two deivces bridge successfully.
 To reset the device:
Press and hold this button for over 15 seconds to restore the device to factory
default.

Tenda O6 Specifications

General

Internal	No
Placement	Wall
Reset button	Yes
Certification	FCC/CE/RoHS
Product color	White
LED indicators	Status
International Protection (IP) code	IP67
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Channel bandwidth	35 MHz
Transmitting power	1 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current	0.5 A
AC input voltage	24 V
Power consumption (max)	9 W
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	16 dBi
USB 2.0 ports quantity	0
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.5 mm
Width	94.9 mm
Height	270 mm
