Tenda O6 User Manual

Web UI Functions
-30-

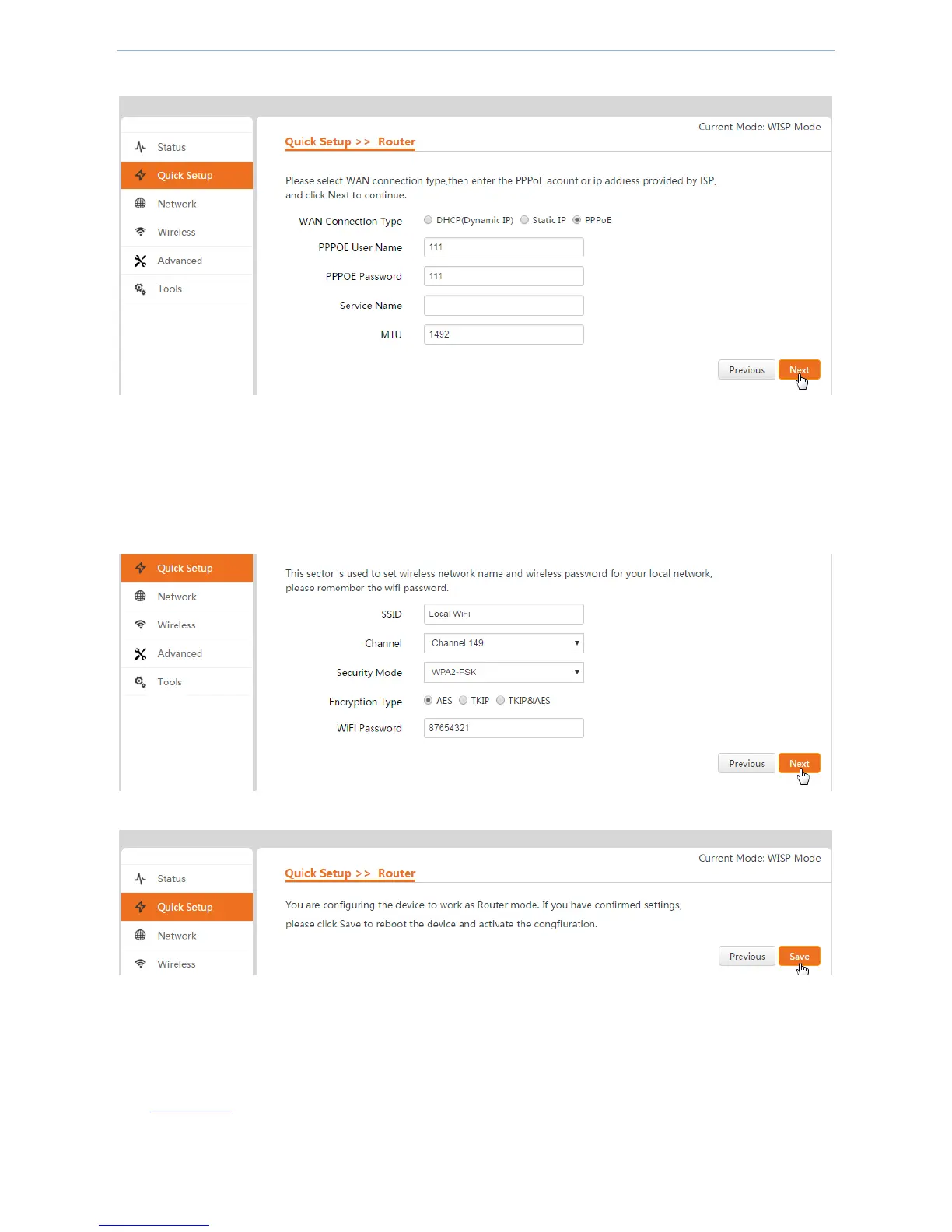

 Click Next.
4. Set up the wireless parameters of this device.
 SSID: Modify a SSID name, such as Local WiFi.
 Security Mode, Encryption Type: We recommend that you select WPA2-PSK, AES.
 WiFi Password: Set up wireless password, such as 12345678.
 Click Next.
5. On the pop-up page, click Save. After the device reboots, the configurations take effect.
4.3 Network
Network settings contain the following:
 LAN Settings: On this page, you can set up LAN IP address, which is used to log in to the web UI and
communicate with the local network.

Tenda O6 Specifications

General

Internal	No
Placement	Wall
Reset button	Yes
Certification	FCC/CE/RoHS
Product color	White
LED indicators	Status
International Protection (IP) code	IP67
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Channel bandwidth	35 MHz
Transmitting power	1 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current	0.5 A
AC input voltage	24 V
Power consumption (max)	9 W
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	16 dBi
USB 2.0 ports quantity	0
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.5 mm
Width	94.9 mm
Height	270 mm
