Web UI Functions
-34-

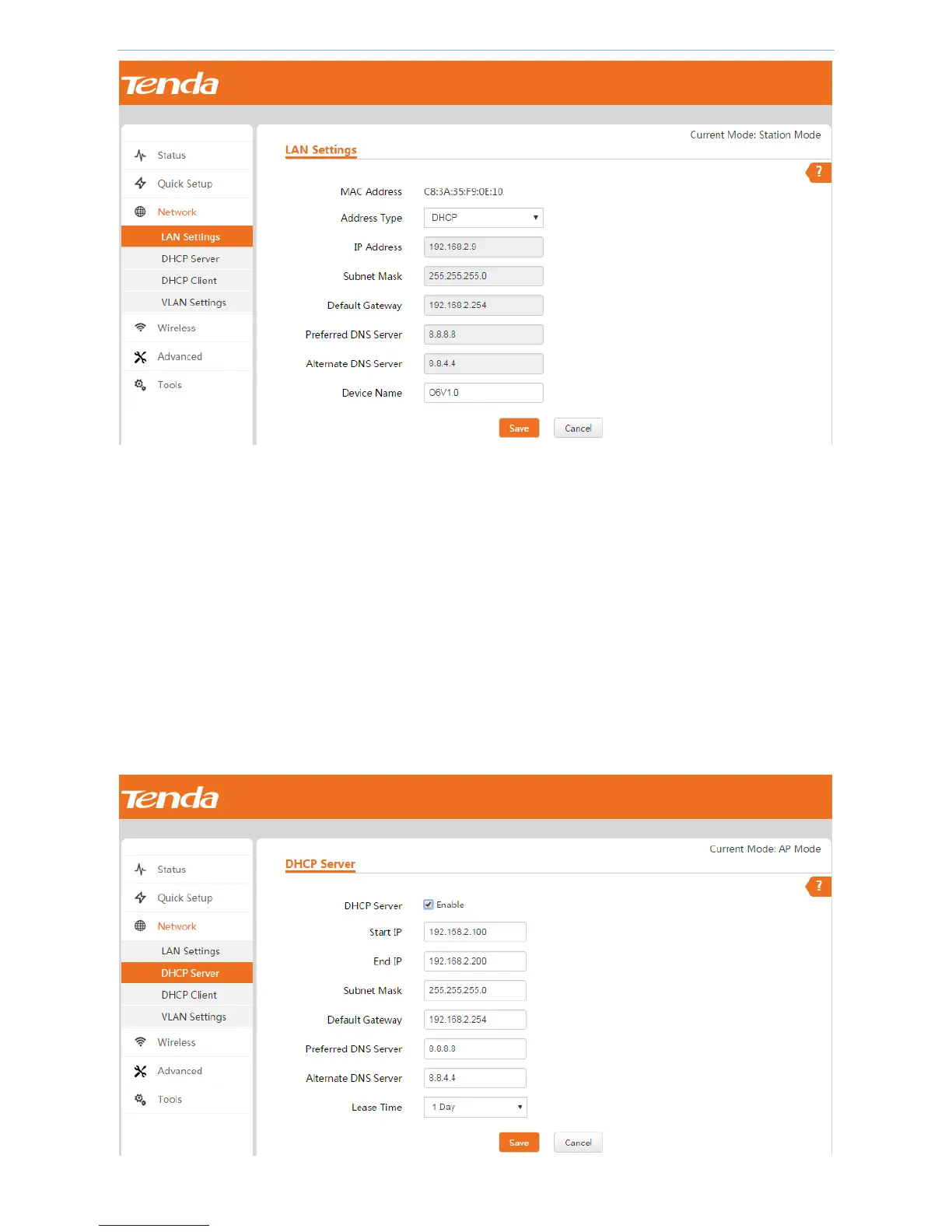

To obtain LAN IP address from another DHCP server:
1. Log in to the device’s web UI.
2. Go to Network > LAN Settings.
3. Address Type: Click the dropdown list and select DHCP.
4. Click Save to make these settings take effect.
4.3.2 DHCP Server
On this page, you can enable/disable and set up DHCP server parameters for the device’s clients. When you finish
configuring AP mode, Station (Client) mode or Universal Reapter mode, DHCP server is automatically disabled and
you need to manually enable this function if necessary.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda O6 and is the answer not in the manual?

Tenda O6 Specifications

General IconGeneral
InternalNo
PlacementWall
Reset buttonYes
CertificationFCC/CE/RoHS
Product colorWhite
LED indicatorsStatus
International Protection (IP) codeIP67
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Channel bandwidth35 MHz
Transmitting power1 dBmW
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates10, 100, 1000 Mbit/s
Maximum data transfer rate433 Mbit/s
Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current0.5 A
AC input voltage24 V
Power consumption (max)9 W
Antenna featuresIntegrated antenna
Antennas quantity1
Antenna gain level (max)16 dBi
USB 2.0 ports quantity0
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth67.5 mm
Width94.9 mm
Height270 mm
