Tenda O6 User Manual

Web UI Functions
-24-
Configure universal repeater mode
Tip
After you finish configuring universal repeater mode, this device’s SSID and WiFi password are changed to those of
the remote AP.

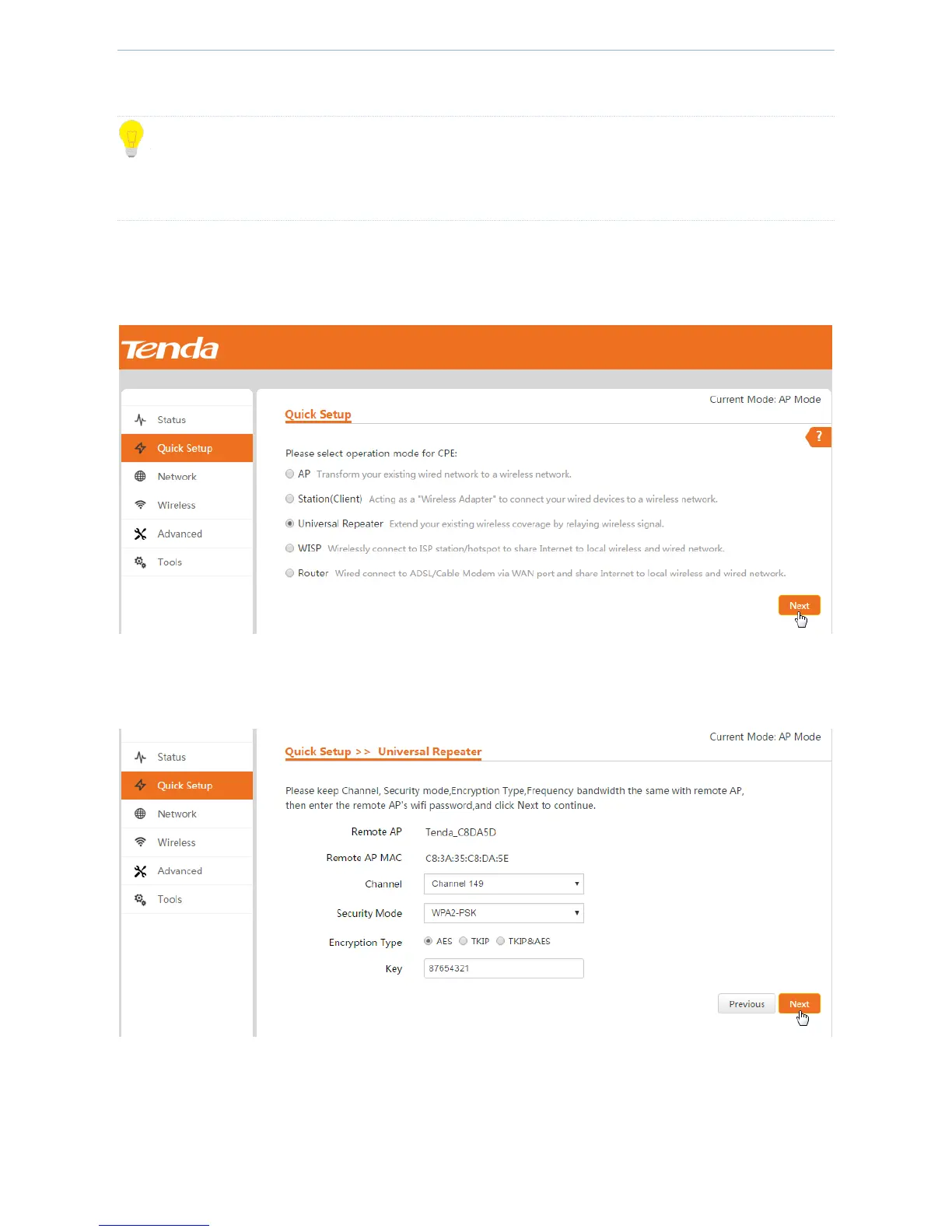

To configure universal repeater mode:
1. Log in to the device’s web UI.
2. Go to Quick Setup, select Universal Repeater, and click Next.
3. In the scanned wireless signal list, select the remote AP’s wireless network name (SSID), here we select
Tenda_C8DA5D, and click Next.
4. Enter the remote AP’s WiFi password (Key), here we enter 87654321, and click Next.
5. Set up IP info of this device.
 IP address: Modify this device’s IP address to a different one but on the same IP segment from that of the
remote AP. As the remote AP’s IP address is 192.168.0.2, we can enter 192.168.0.6 here.
 Subnet Mask：Set up a subnet mask.

Tenda O6 Specifications

General

Internal	No
Placement	Wall
Reset button	Yes
Certification	FCC/CE/RoHS
Product color	White
LED indicators	Status
International Protection (IP) code	IP67
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Channel bandwidth	35 MHz
Transmitting power	1 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current	0.5 A
AC input voltage	24 V
Power consumption (max)	9 W
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	16 dBi
USB 2.0 ports quantity	0
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.5 mm
Width	94.9 mm
Height	270 mm
