Tenda O6 User Manual

Web UI Functions
-37-
Parameter description
Parameter
Description

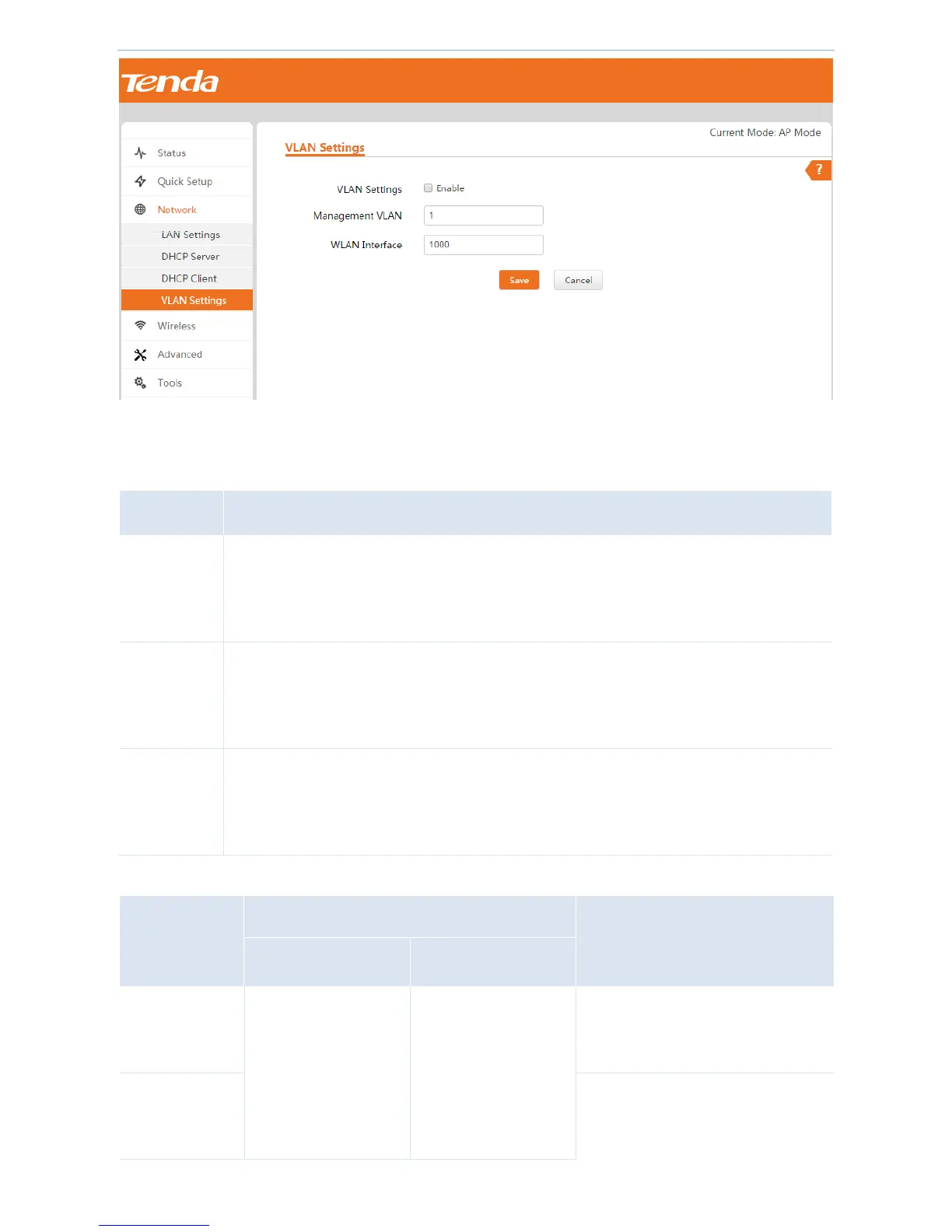

VLAN Settings
Enable of disable VLAN function of the device.
After you enable VLAN function, the PoE LAN/WAN port becomes a trunk port, which can
allow multiple VLANs to get through. By default, VLAN function is disabled.
Management
VLAN
Set up this device’s management VLAN ID. By default it is 1.
After the management VLAN is modified, only when the management computer is in the same
VLAN can it access this device’s web UI.
WLAN
Interface
Set up VLAN ID of this device’s wireless interface. By default it is 1000. The range is 1 ~ 4094.
After you set up this VLAN ID, the device’s wireless interface becomes an access port, which
only allows tagged packets in the same VLAN or untagged packets to get through.
The detailed receiving and sending procedures on each type of port are described as below:
Port Type
Procedures on receiving packets
Procedures on sending packets
Tagged packets
Untagged packets
Access port
Tagged packets are
forwarded to other ports
with the same VLAN ID
as the tagged packets.
Untagged packets are
forwarded to other ports
with the same VLAN ID
as the PVID of the
receiving port.
Delete the packets’ tag and send the
packets to a network device that
doesn’t support VLAN function.
Trunk port
VLAN ID = PVID, delete tag and send.
VLAN ID ≠PVID, keep tag and send.

Tenda O6 Specifications

General

Internal	No
Placement	Wall
Reset button	Yes
Certification	FCC/CE/RoHS
Product color	White
LED indicators	Status
International Protection (IP) code	IP67
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Channel bandwidth	35 MHz
Transmitting power	1 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current	0.5 A
AC input voltage	24 V
Power consumption (max)	9 W
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	16 dBi
USB 2.0 ports quantity	0
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.5 mm
Width	94.9 mm
Height	270 mm
