Tenda O6 User Manual

Web UI Functions
-55-

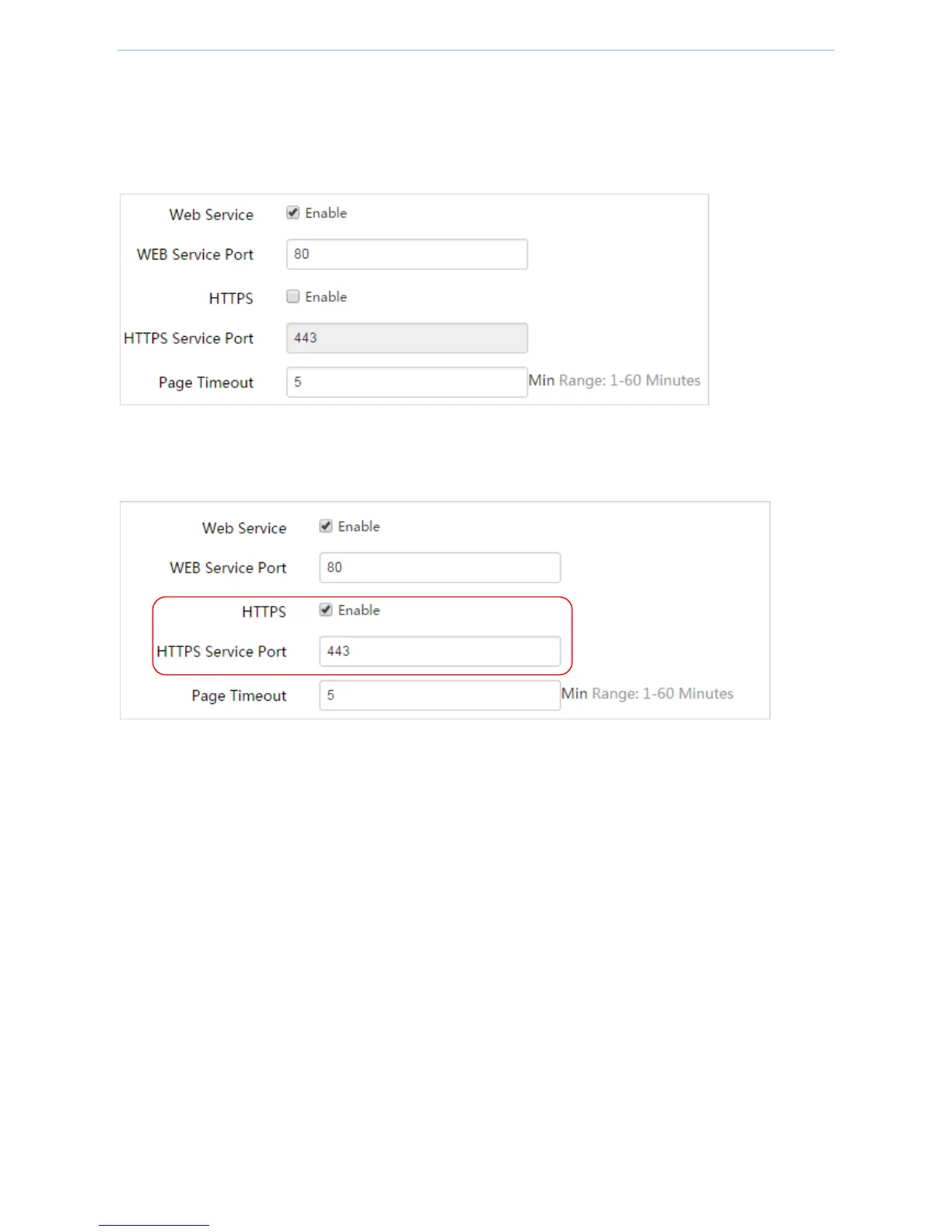

Web Service
The AP Web page access mode and page timeout time can be set through Web Service. This AP supports HTTP
and HTTPS access.By default, HTTP access is enabled. We recommend that you the default Web port number in
the absence of exceptional circumstances.
Steps for Enabling HTTPS Access:
In the HTTPS service option, click the Enable checkbox and then Save at the bottom of the page to enable the
HTTPS function.
After finishing settings, you can access the Web page in the form of "https://LAN IP:port number" (in this example,
https://192.168.2.1:443).
SNMP
This AP supports the SNMP agent function. SNMP management software can be used to manage the AP.
By default, the AP disables the SNMP agent function. If you want to enable SNMP agent, check the Enable
checkbox to enable SNMP and then click Save at the bottom of the page.

Tenda O6 Specifications

General

Internal	No
Placement	Wall
Reset button	Yes
Certification	FCC/CE/RoHS
Product color	White
LED indicators	Status
International Protection (IP) code	IP67
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Channel bandwidth	35 MHz
Transmitting power	1 dBmW
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	433 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Input current	0.5 A
AC input voltage	24 V
Power consumption (max)	9 W
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	16 dBi
USB 2.0 ports quantity	0
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	67.5 mm
Width	94.9 mm
Height	270 mm
