Service and Repair Manual August 2021
Scissor Components
144 GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT

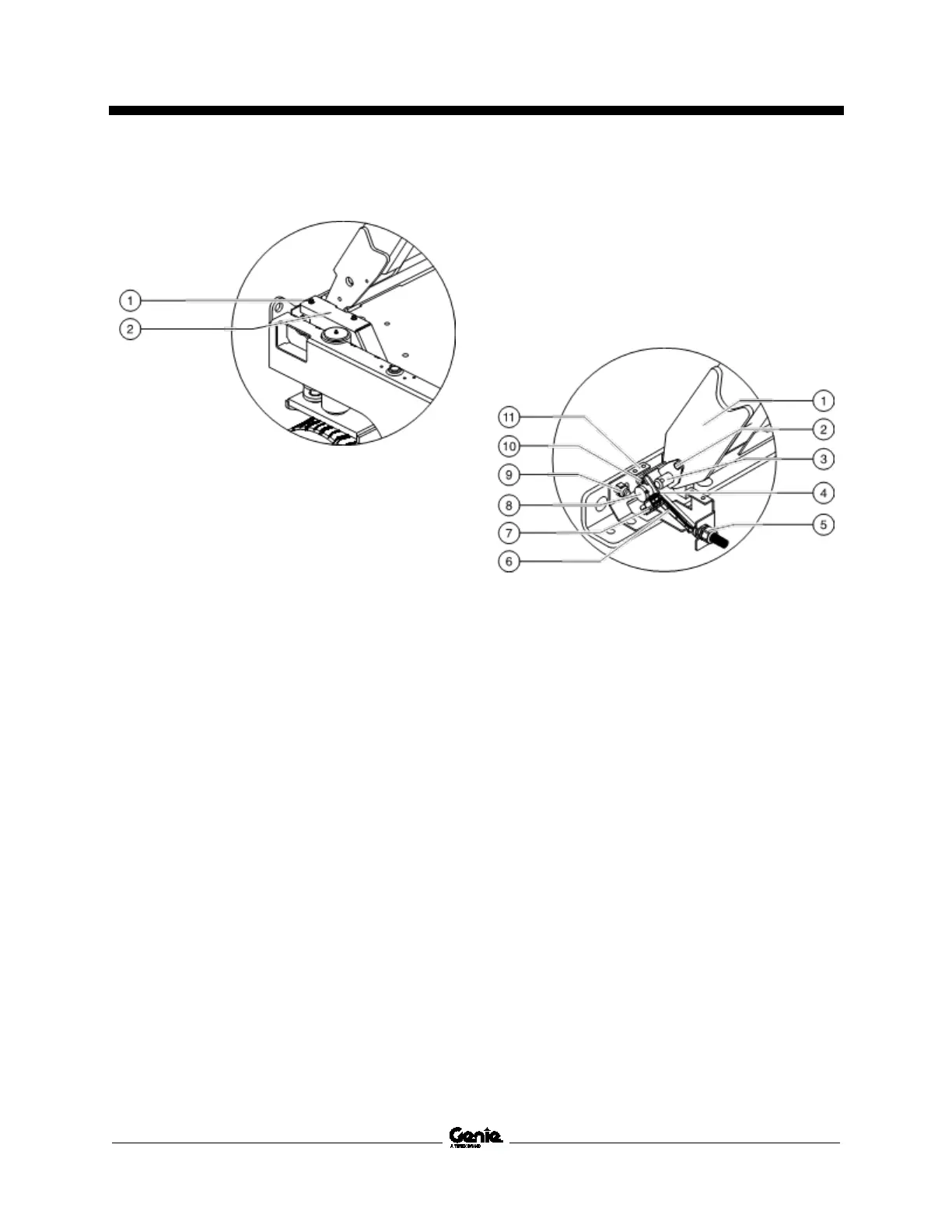

8 Remove the platform height sensor cover.
1 retaining fasteners
2 cover
9 Tag and disconnect the platform height
sensor from the platform height sensor
harness.
10 Remove the fastener securing the platform
height sensor assembly to the number 1 inner
arm.
11 Remove the platform height sensor assembly
from the number 1 pivot pin.
12 Remove the set screw securing the lever arm
to the platform height sensor.
13 Remove the lever arm from the platform
height sensor assembly.
14 Working with the platform height sensor
assembly, remove the Deutsch connector
from the plastic clip.
15 Remove the fasteners securing the platform
height sensor to the small platform height
sensor bracket.
16 Remove the platform height sensor from the
small angle sensor bracket.
17 Remove the plastic nut securing the squeeze
connector to the large platform height sensor
bracket.
18 Remove the squeeze connector from the
large platform height sensor bracket.
1 number 1 inner arm
2 fastener (platform height sensor assembly)
3 number 1 pivot pin
4 lever arm retaining screw
5 squeeze connector
6 lever arm
7 platform height sensor harness connection
8 platform height sensor
9 fastener (large platform height sensor
bracket)
10 fastener (platform height sensor)
11 platform height sensor assembly
