Service and Repair Manual August 2021
Platform Controls
18 GS
™
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT
The platform controls are used to operate the
machine from the platform.
Activating a function button sends a signal to the
Electronic Control Module (ECM). When the ECM
is in the function mode, the platform controls are
used to operate the various machine functions.
The platform controls consist of an Emergency
Stop button, electronic circuit board, proportional
control handle, drive/steer enable switch, alarm,
function buttons and LED display.
For further information or assistance, contact
Genie Product Support.

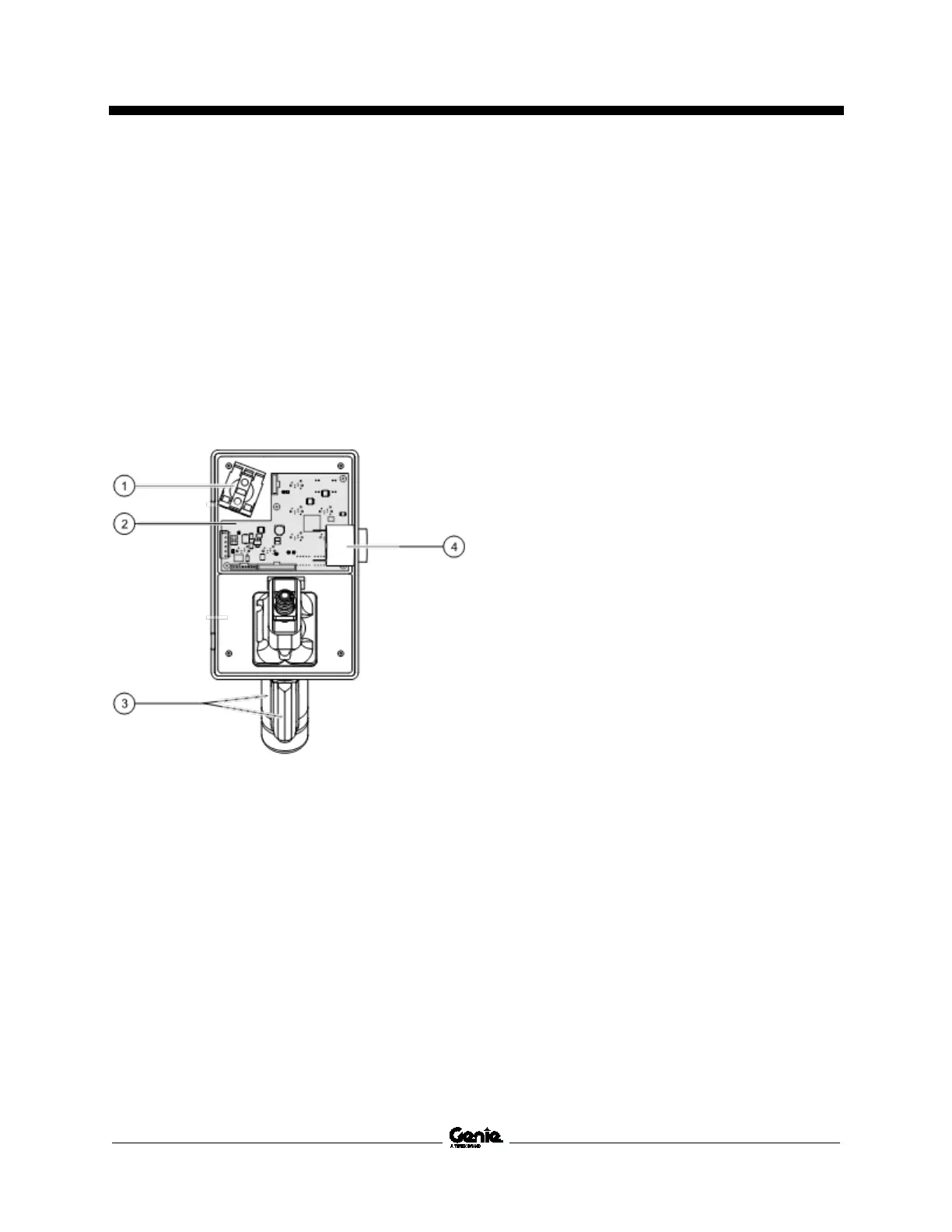

1 red Emergency Stop button P2
2 platform controls circuit board U2
3 proportional control handle and drive/steer
enable switch JC1
4 alarm H3
