August 2021 Service and Repair Manual

Brake Release Hand Pump Components

Part No. 1309020GT GS

™

-30m • 32m • 30 • 32 • 46 • 55 73

8-1

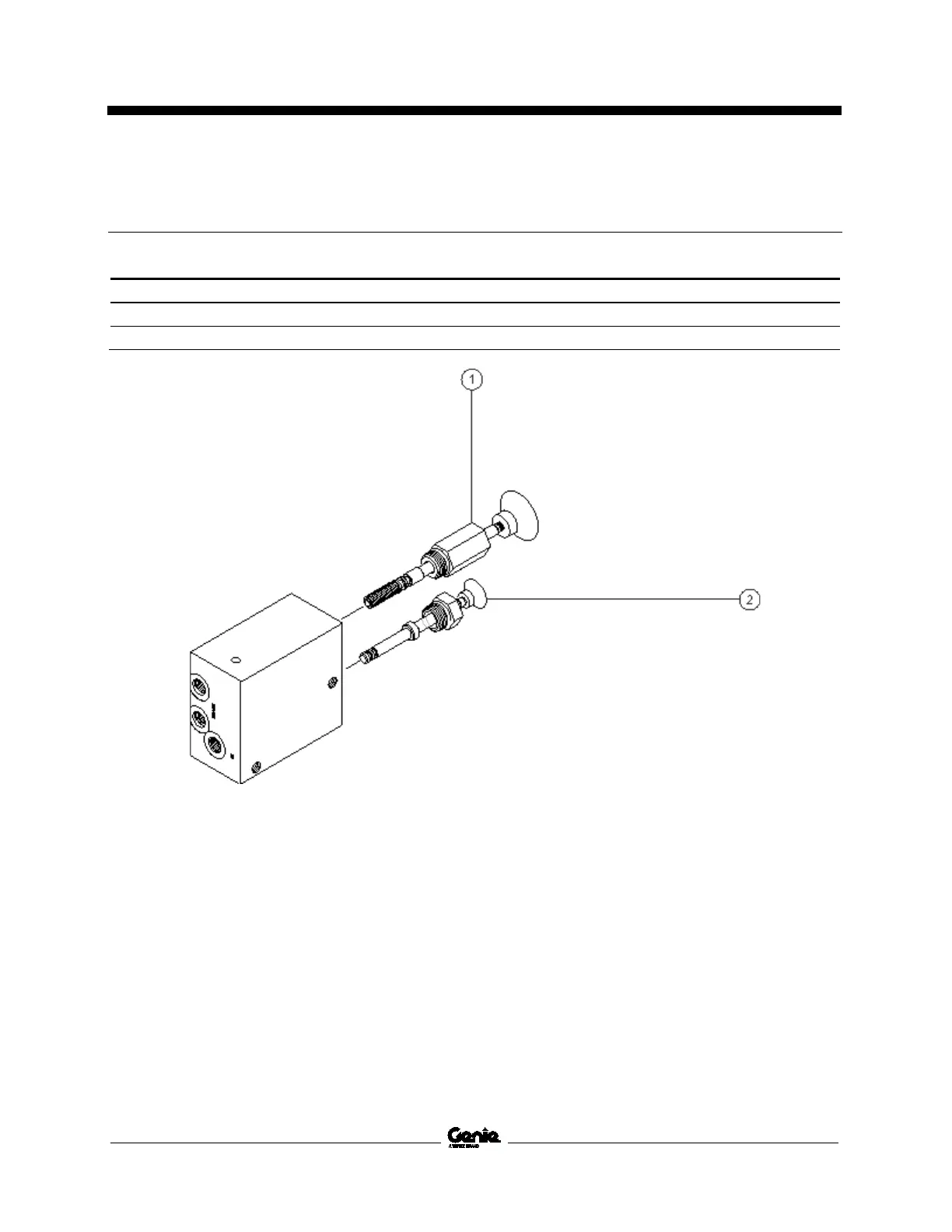

Brake Release Hand Pump Components - Models with hydraulic drive

The brake release hand pump manifold is mounted behind the entry ladder.

Index No.

Description

Schematic Item Function

Torque

Hand pump

L Manual brake release 30 ft-lbs / 41 Nm

Needle valve

M Manual brake release enable 45-50 in-lbs / 5 Nm
