August 2021 Service and Repair Manual
Scissor Components
Part No. 1309020GT GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 143
12 Remove the lever arm from the platform
height sensor assembly.

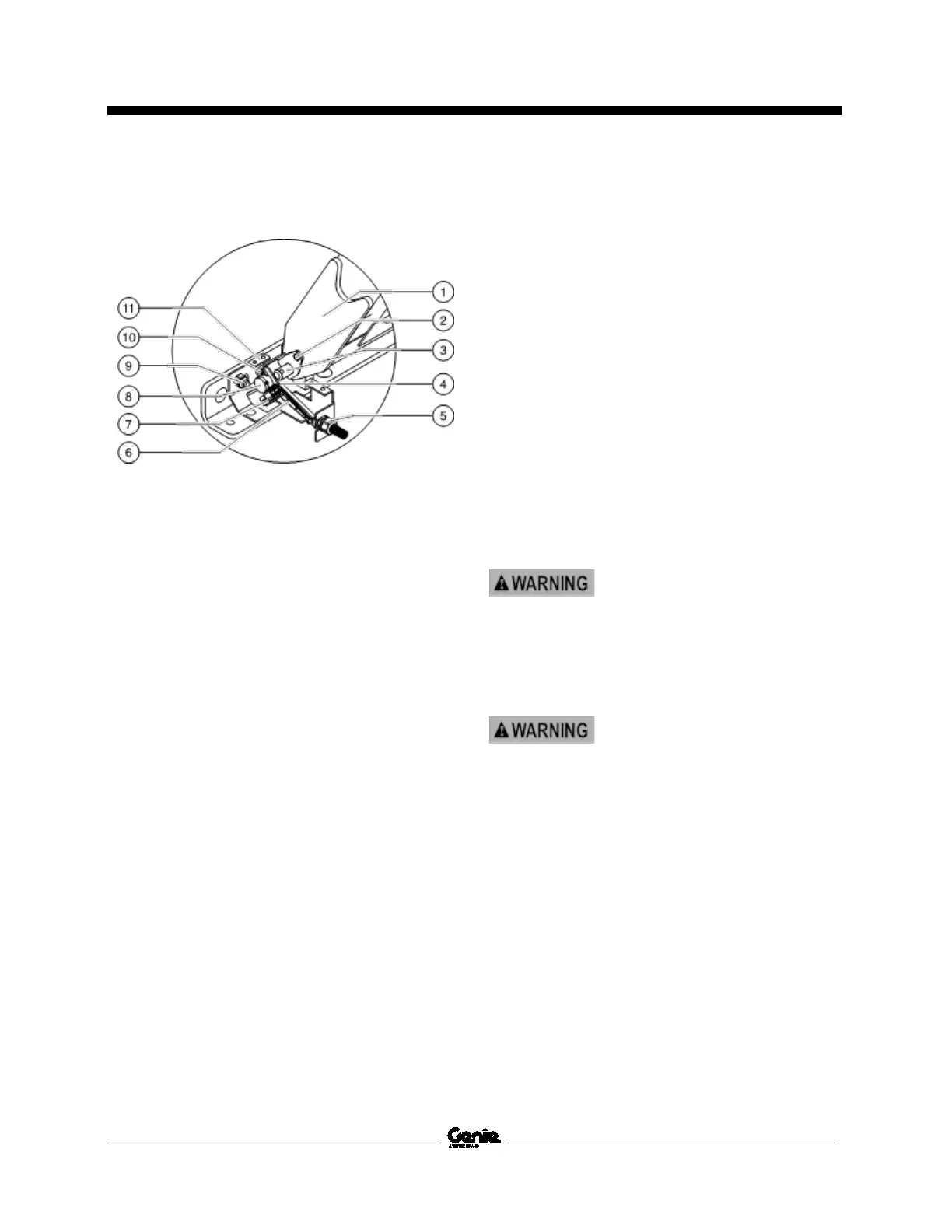

1 number 1 inner arm
2 fastener (platform height sensor assembly)
3 number 1 pivot pin
4 lever arm retaining screw
5 squeeze connector
6 lever arm
7 platform height sensor harness connection
8 platform height sensor
9 fastener (platform height sensor bracket)
10 fastener (platform height sensor)
11 platform height sensor assembly
How to D isa ss embl e t he Pl atf or m Heig ht Sens or A ss embl y - All ot her model s
How to Disassemble the Platform
Height Sensor Assembly - All
other models
Note: When a Platform Height Sensor Assembly is
removed or replaced, the platform overload
system must be calibrated. Refer to Repair
Procedure, How to Calibrate the Platform
Overload System and perform the no load
calibration procedure.
1 GS-4655: Raise the platform approximately
13 feet / 4 m.
2 All other models: Raise the platform 7 to
9 feet / 2,1 to 2,8 m.
3 Lift the safety arm, move it to the center of the
scissor arm and rotate down to a vertical
position.
4 Lower the platform onto the safety arm.
Crushing hazard. Keep hands
clear of the safety arm when
lowering the platform.
5 Turn the key switch to the off position.
6 Disconnect the battery pack from the
machine.
Electrocution/burn hazard.
Contact with electrically charged
circuits could result in death or
serious injury. Remove all rings,
watches and other jewelry.
7 Remove the fasteners securing the large
platform height sensor cover to the large
platform height sensor bracket.
