Terex Genie GS-1330m User Manual

August 2021 Service and Repair Manual
Manifolds
Part No. 1309020GT GS
™
-30m • 32m • 30 • 32 • 46 • 55 51
5-5

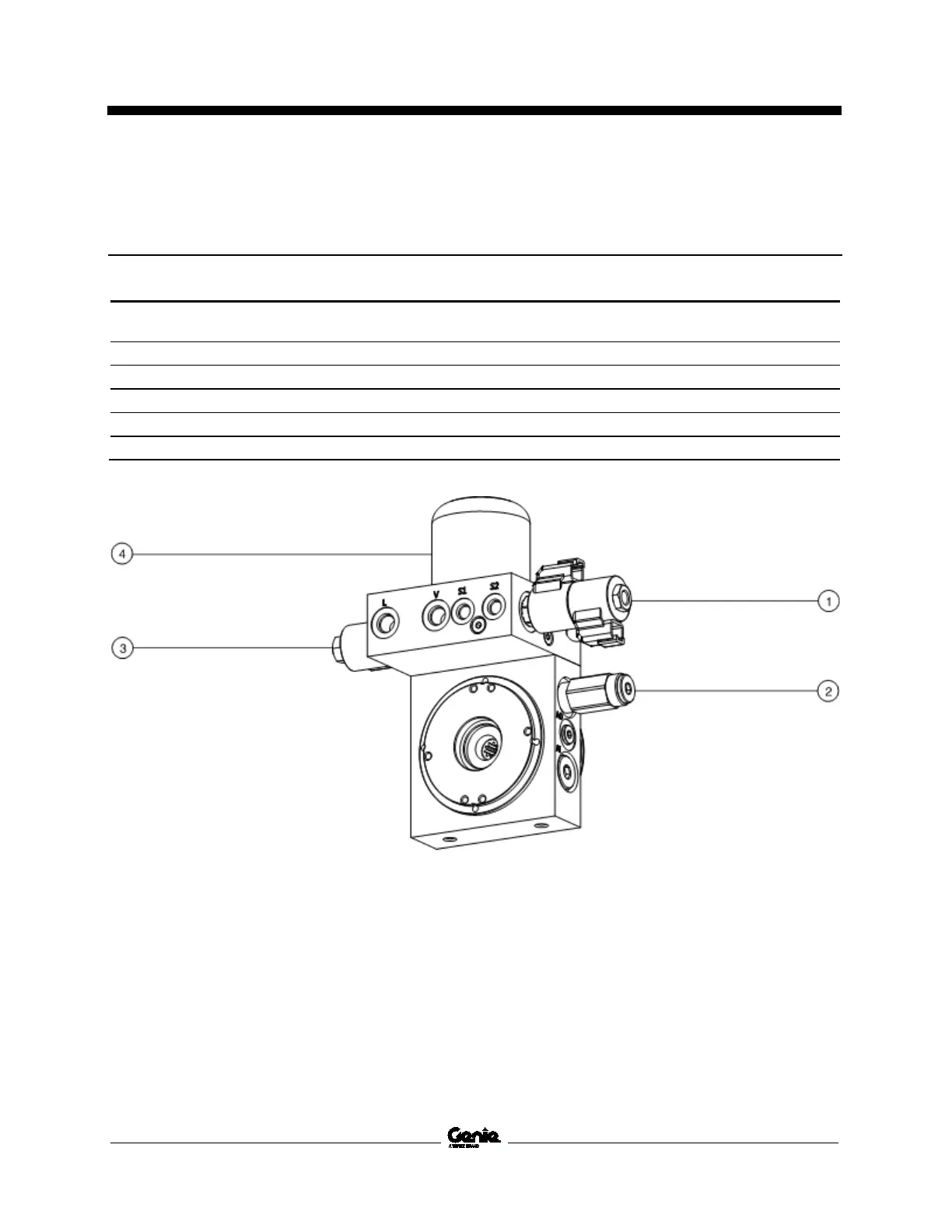

Function Manifold Components – Models with electric drive, All other
models
The function manifold is mounted on the hydraulic pump.
Index No. Description
Schematic
Item
Function Torque
1
Solenoid valve, 3 position 4 way
HB
Steer left/right
20 ft-
lbs / 27 Nm
2
Relief valve, 290
0 psi / 200 bar HA
System relief
20 ft-
lbs / 27 Nm
3
Solenoid valve,
2 position 4 way HD Platform up
20 ft-lbs / 27 Nm
4
Hydraulic filter, 1
8 psi / 1,2 bar HC Filters hydraulic fluid
13-17 ft-lbs / 18-
23 Nm
-
Coil nut
HB, HD -
5-7 ft-lbs / 7-
9 Nm
How to Install a Valve Cartridge
1 Dip the cartridge in clean oil to lube the O-rings.
2 Screw the cartridge in by hand until the top O-ring is met, then torque to specifications.
3 If required, install the valve coil(s) onto the valve stem. Install the coil nut onto the valve stem and
torque to specifications.
