Service and Repair Manual August 2021
Manifolds
58 GS
™
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT
5-10
Outrigger Cylinder Manifold Components – GS-3232
The outrigger function manifold is mounted behind an inspection door, at the battery side of the machine.
Note: 'alpha-numeric' callouts refer to corresponding notes on the electrical schematic.
Index No.
Description
Schematic Item
Function
Torque
1
Solenoid valve,
2 position 2 way CA, CB, CC, CD
Outriggers
extend / retract
25 ft-
lbs / 34 Nm
2
Orifice Plug, 0.03
7 inch / 0,94 mm CE Outrigger retract —
3
Check Valve, pilot operated
CF
Retract flow
control
20 ft-
lbs / 27 Nm
4
Pressure transducer
CG
Outrigger auto
level
16 ft-
lbs / 21,7 Nm
—
Coil nut
CA, CB, CC, CD
—
4-5 ft-lbs / 5-
7 Nm

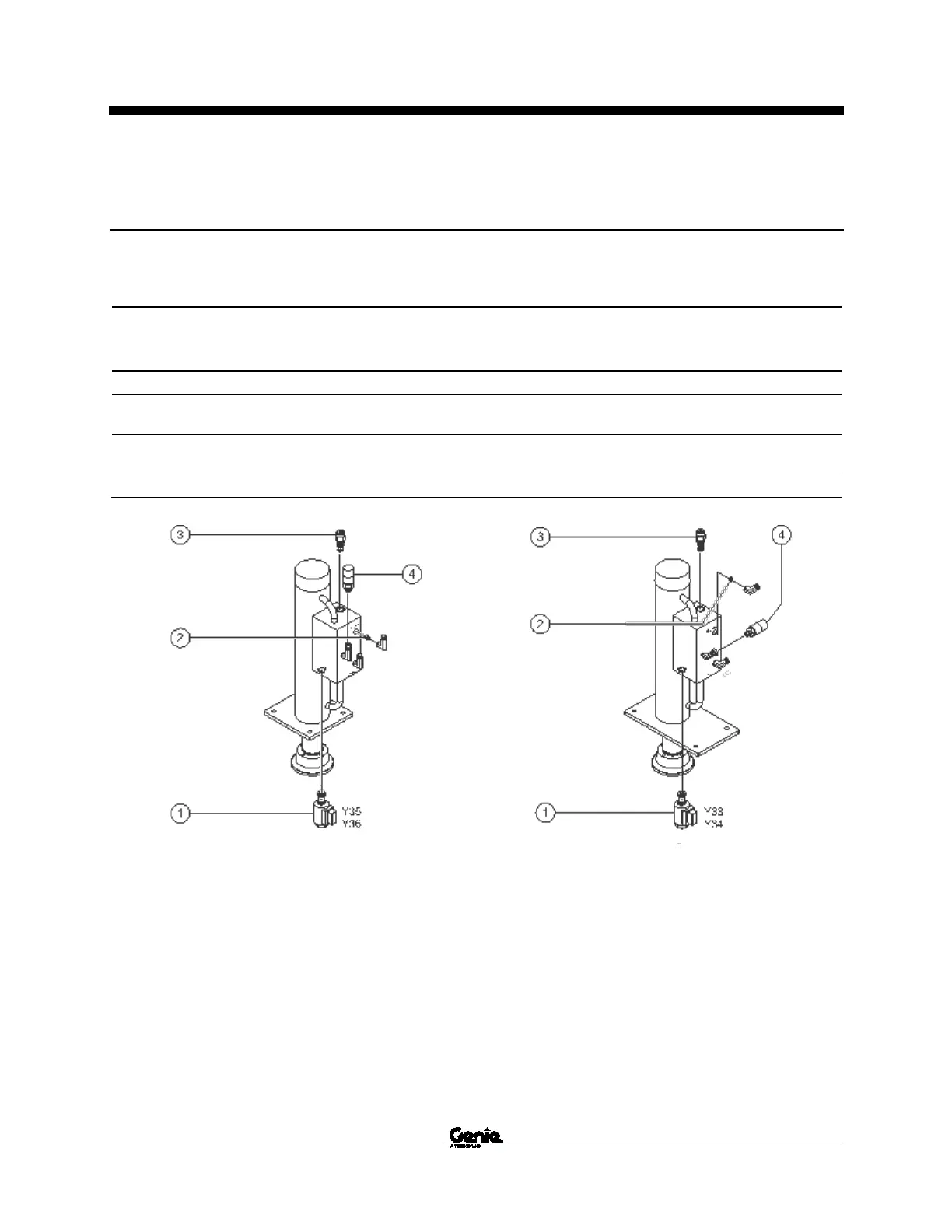

Front Outrigger Cylinder Rear Outrigger Cylinder
How to Install a Valve Cartridge
1 Dip the cartridge in clean oil to lube the O-rings.
2 Screw the cartridge in by hand until the top O-ring is met, then torque to specifications.
3 If required, install the valve coil(s) onto the valve stem. Install the coil nut onto the valve stem and
torque to specifications.
