August 2021 Service and Repair Manual
Steer Axle Components
Part No. 1309020GT GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 71
2 Locate and remove the two brake release
access plugs on the front of the electric drive
motors. Set the plugs aside.
Note: Do not misplace the plugs. Failure to not
reinstalling the plugs will result in component
damage.

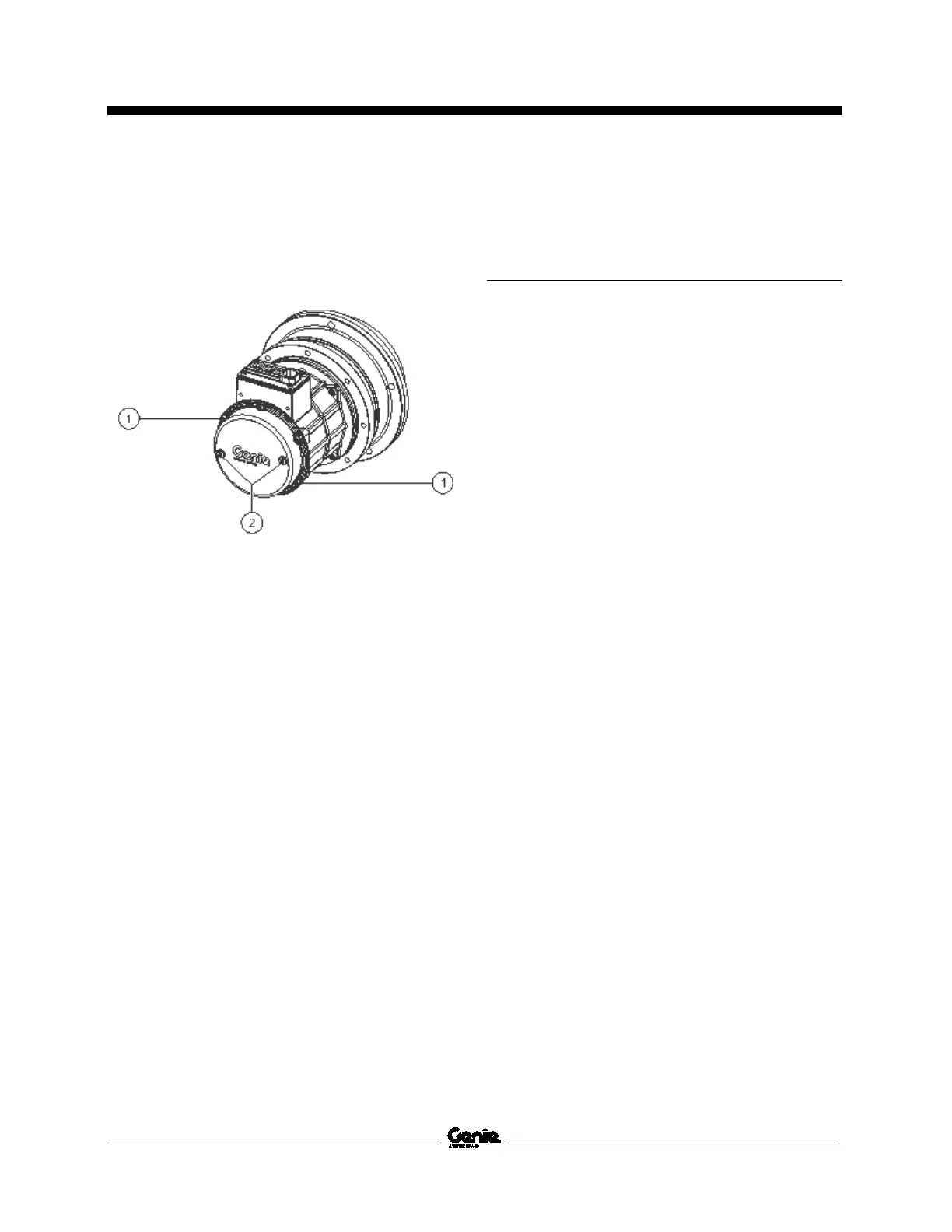

1 retaining fasteners
2 brake release access plugs
3 Remove two of the retaining fasteners from
opposite sides of the electric motor cover.
4 Install the retaining fasteners into the brake
release access holes. Turn both fasteners in
even increments until the brakes are
released. Do not over tighten the fasteners.
5 Move the machine to an area that has a firm,
level surface and is free of obstructions.
6 Chock the wheels at both ends of the
machine.
7 Remove the retaining fasteners from the
brake release access holes to reengage the
brakes.
8 Install the retaining fasteners securing the
motor cover and the brake release access
plugs.
6-6
Thrust Washers - GS-1432m, GS-
1932m, GS-1932m Lite, GS-1932m
XH
How to Remove a Thrust Washer
1 Remove the drive motor. Refer to Repair
Procedure, How to Remove a Drive Motor.
2 Remove the steer bellcrank. Refer to Repair
Procedure, How to Remove the Steer
Bellcrank.
3 Remove the snap rings and shims from the
king pin.
4 Remove the yoke assembly from the
machine.
5 Remove the thrust washer from the king pin.
To Next Page
