Terex Genie GS-1330m User Manual

Service and Repair Manual August 2021
Manifolds
48 GS
™
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT
5-2

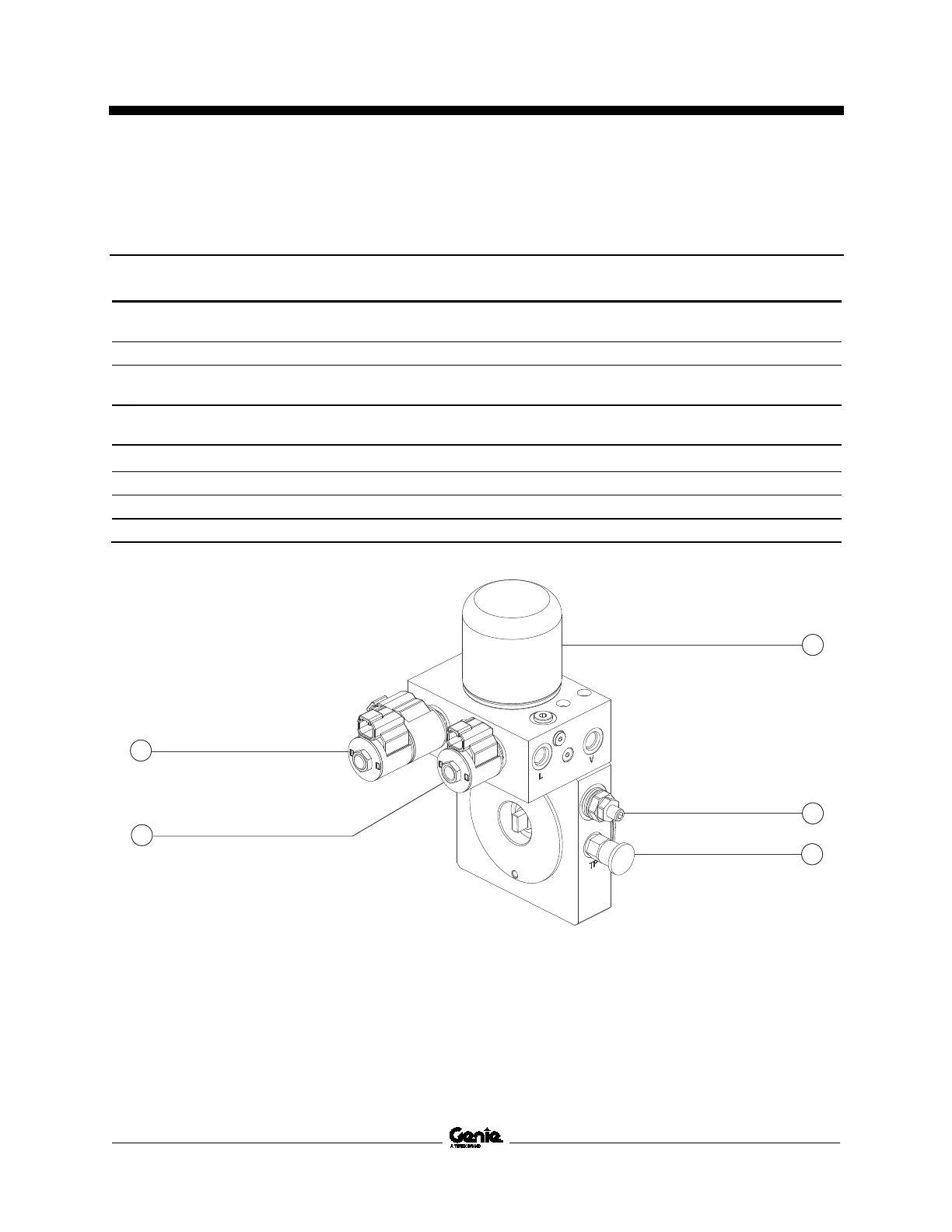

Function Manifold Components – GS-1432m, GS-1932m,
GS-1932m Lite, GS-1932m XH
The function manifold is mounted on the hydraulic pump.
Index No. Description
Schematic
Item
Function Torque
1
Hydraulic filter, 23 psi / 1,6 bar
HC
Filters hydraulic fluid
13-17 ft-lbs / 18-
23 Nm
2
Relief valve, 180
0 psi / 124 bar, GS-
1432m
HA
System relief
22 ft-
lbs / 30 Nm
2
Relief valve, 240
0 psi / 165 bar, GS-
1932m, GS
-1932m Lite, GS-1932m XH
HA
System relief
22 ft-
lbs / 30 Nm
3
Diagnostic port
Test port
4
Solenoid valve,
2 position 4 way HD Platform up
20 ft-lbs / 27 Nm
5
Solenoid valve,
3 position 4 way HB Steer left/right
20 ft-
lbs / 27 Nm
-
Coil nut
HB, HD -
4-5 ft-lbs / 5-
7 Nm
How to Install a Valve Cartridge
1 Dip the cartridge in clean oil to lube the O-rings.
2 Screw the cartridge in by hand until the top O-ring is met, then torque to specifications.
3 If required, install the valve coil(s) onto the valve stem. Install the coil nut onto the valve stem and
torque to specifications.
4
5
2
3
1
