Machine Setup
How to Setup the Machine from
Ground Controls
The ground controls can be used to setup the
machine parameters from the ground. Features
that can be adjusted from the ground controls
include machine Model, Options and Speed setup.
This menu can only be entered from ground
controls with the key switch in the ground controls
position.
-over hazard. Do not adjust
function speeds higher than
specified in this procedure.
Setting the function speeds
greater than specifications could
cause the machine to tip over
resulting in death or seri
ous
-over hazard. This procedure
must only be performed by a
trained service professional.
Attempting this procedure
without the necessary skills
could result in death or serious
injury.
Note: Select a test area that is firm, level and free
of obstructions.
1 Turn the key switch to ground controls.
2 Press and hold the ground control scroll up
and scroll down buttons.

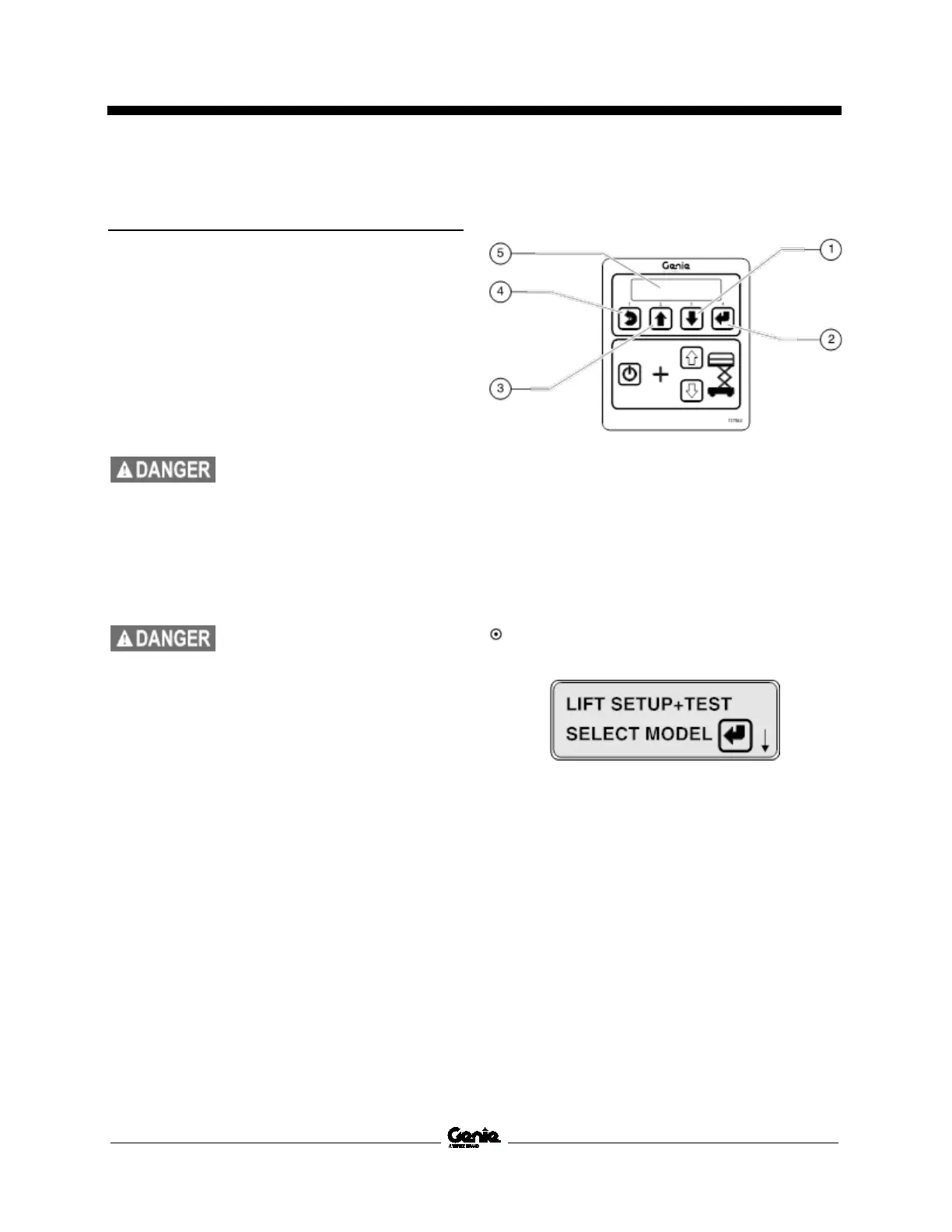

Ground Control Menu Buttons
1 scroll down button
2 enter button
3 scroll up button
4 escape button
5 LCD display
3 Pull out the red Emergency Stop button to the
on position at the ground controls.
Result: The ground controls LCD display will
show the following:
4 Use the ground control menu buttons to select
machine Model, Options and Speed Setup
parameters. Follow the menu structure
indicated on the ground control LCD display.
To Next Page
