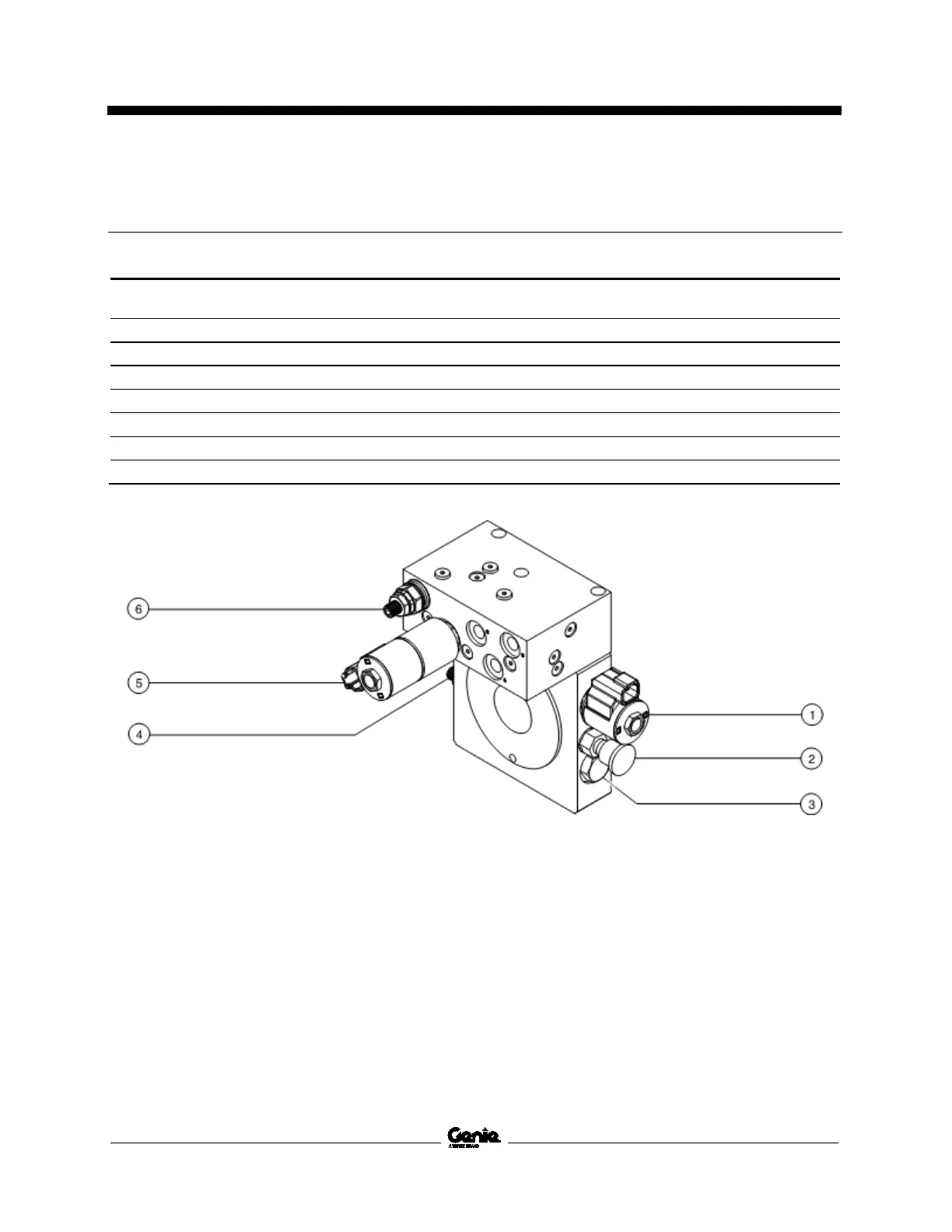

Function Manifold Components – GS-1330m
The function manifold is mounted on the hydraulic pump.
Index No. Description
Schematic
Item
Function Torque
1
Solenoid valve,
2 position 4 way EC Platform up
20 ft-lbs /
27 Nm
2
Diagnostic port
EF Test port ---
3
Check valve
EE Drive circuit
25 ft-
lbs / 34 Nm
4
Relief valve, 225
0 psi / 155 bar ED System relief
22 ft-lbs / 30 Nm
5
Solenoid valve,
3 position 4 way EA Steer left/right
20 ft-
lbs / 27 Nm
6
Relief valve, 1600 psi / 110 bar
EB
Steer relief
22 ft-
lbs / 30 Nm
---
Coil nut
EA, EC
---
4-5 ft-lbs / 5-
7 Nm
How to Install a Valve Cartridge
1 Dip the cartridge in clean oil to lube the O-rings.
2 Screw the cartridge in by hand until the top O-ring is met, then torque to specifications.
3 If required, install the valve coil(s) onto the valve stem. Install the coil nut onto the valve stem and
torque to specifications.
