Service and Repair Manual August 2021
Manifolds
54 GS
™
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT
5-7

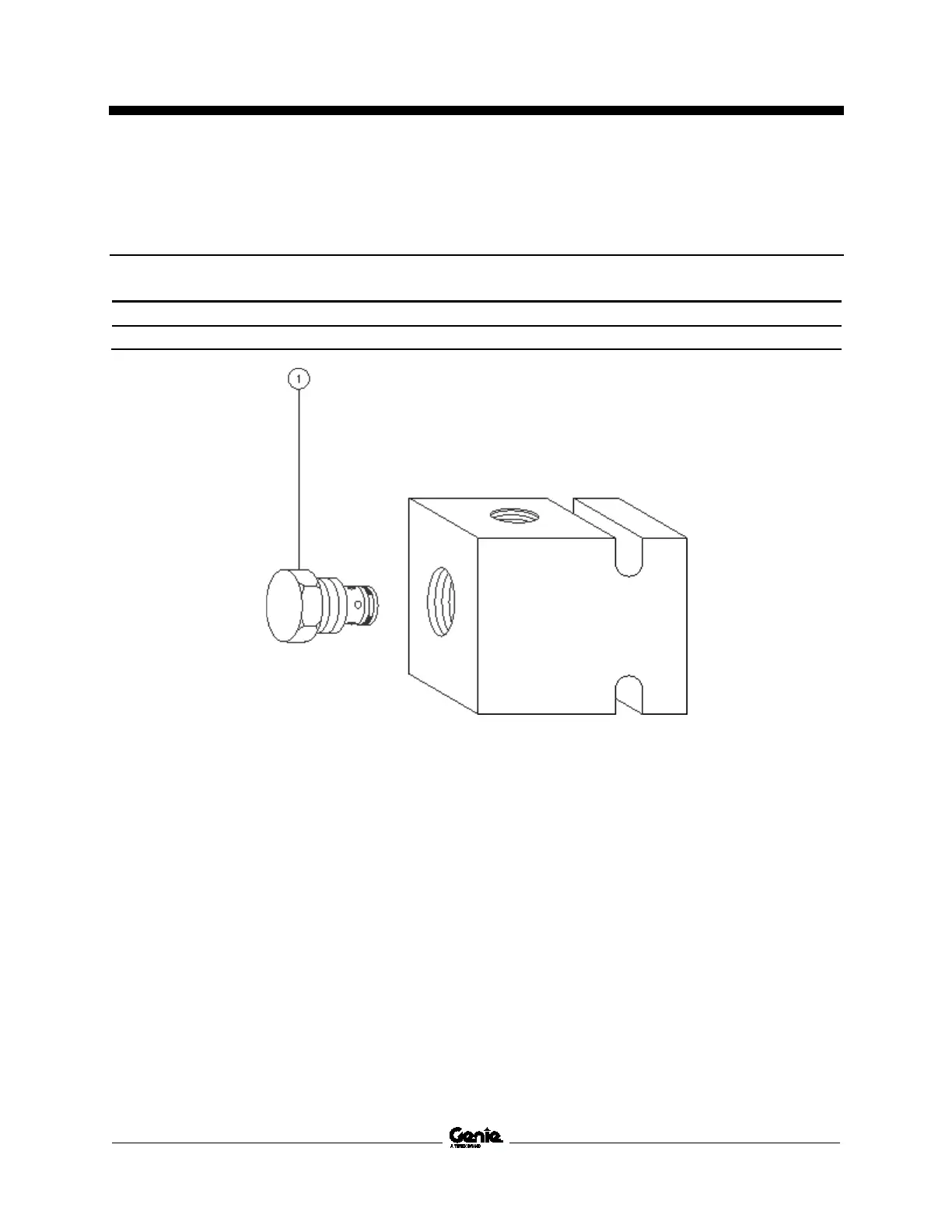

Check Valve Manifold Components – Models with hydraulic drive,
GS-1530, GS-1532, GS-1930, GS-1932, GS-1932 XH
The check valve manifold is mounted on the function manifold.
Index No.
Description
Schematic Item Function
Torque
1
Check valve, 20
0 psi / 13,8 bar S Drive circuit
20 ft-
lbs / 27 Nm
How to Install a Valve Cartridge
1 Dip the cartridge in clean oil to lube the O-rings.
2 Screw the cartridge in by hand until the top O-ring is met, then torque to specifications.
3 If required, install the valve coil(s) onto the valve stem. Install the coil nut onto the valve stem and
torque to specifications.
