Service and Repair Manual August 2021
Battery Charger
170 GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT
11-1
Battery Charger
The charger contains selectable charging profiles
stored in its internal memory to charge batteries.
These profiles are specific to each battery type.
The charging profile must be programmed to
match the specific battery type on the machine.

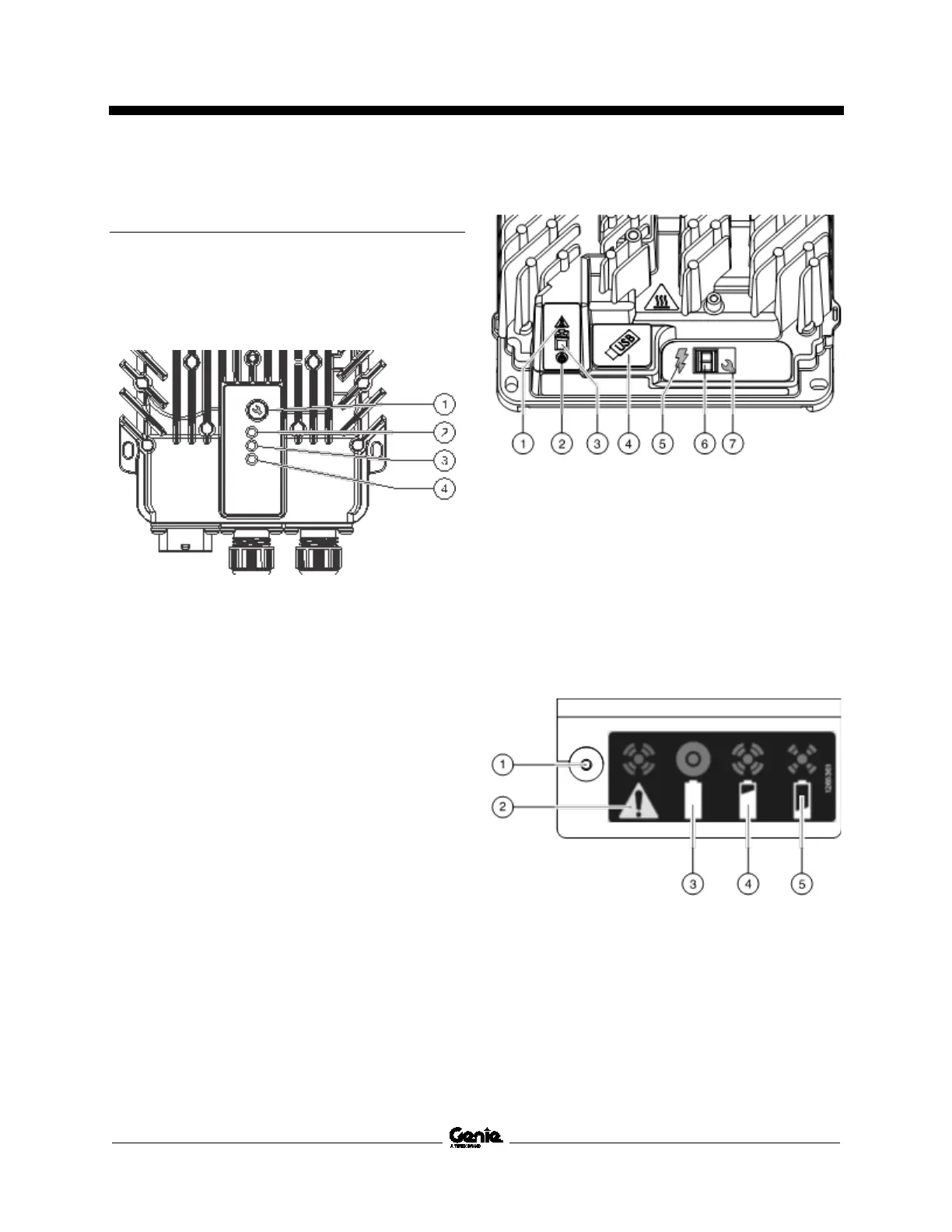

Charger status indicators
GS-1432m, GS-1932m, GS-1932m Lite, GS-1932m XH
1 Charge profile selection button
2 Battery charging indicator
3 Error / Fault indicator
4 AC power indicator
Charger status indicators
All other models
1 Error / Fault / USB indicator
2 AC power indicator
3 Battery charging indicator
4 USB port
5 Charging output indicator
6 Charger profile / Error display
7 Charge profile selection button
Remote charger status indicators
1 Error / Fault / USB indicator
2 Error / Fault
3 Charge complete
4 Charging, high state of charge
5 Charging, low state of charge
