August 2021 Service and Repair Manual
Scissor Components
Part No. 1309020GT GS
â„¢
-30m • 32m • 30 • 32 • 46 • 55 85

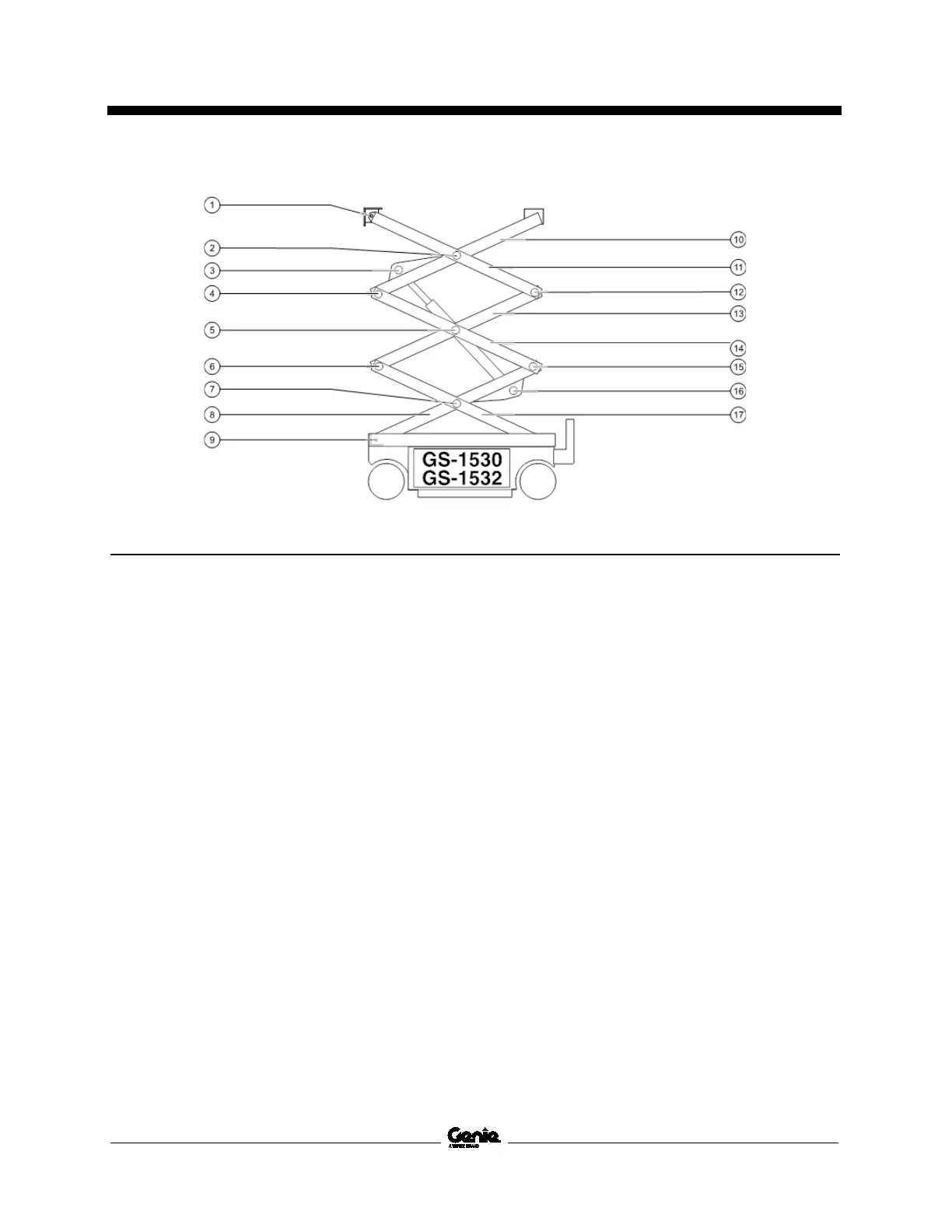

Steer End Non-steer End
1 - Number 4 pivot pin
10 - Number 3 inner arm
2 - Number 3 center pivot pin (Qty. 2)
11 - Number 3 outer arm
3 - Lift cylinder rod-end pivot pin
12 - Number 3 pivot pin (non-steer end)
4 - Number 3 pivot pin (steer end)
13 - Number 2 inner arm
5 - Number 2 center pivot pin (Qty. 2)
14 - Number 2 outer arm
6 - Number 2 pivot pin (steer end)
15 - Number 2 pivot pin (non-steer end)
7 - Number 1 center pivot pin (Qty. 2)
16 - Lift cylinder barrel-end pivot pin
8 - Number 1 inner arm
17 - Number 1 outer arm
9 - Number 1 pivot pin
