Texas Instruments LMK04828 - TAPE AND REEL INFORMATION; REEL DIMENSIONS; QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE

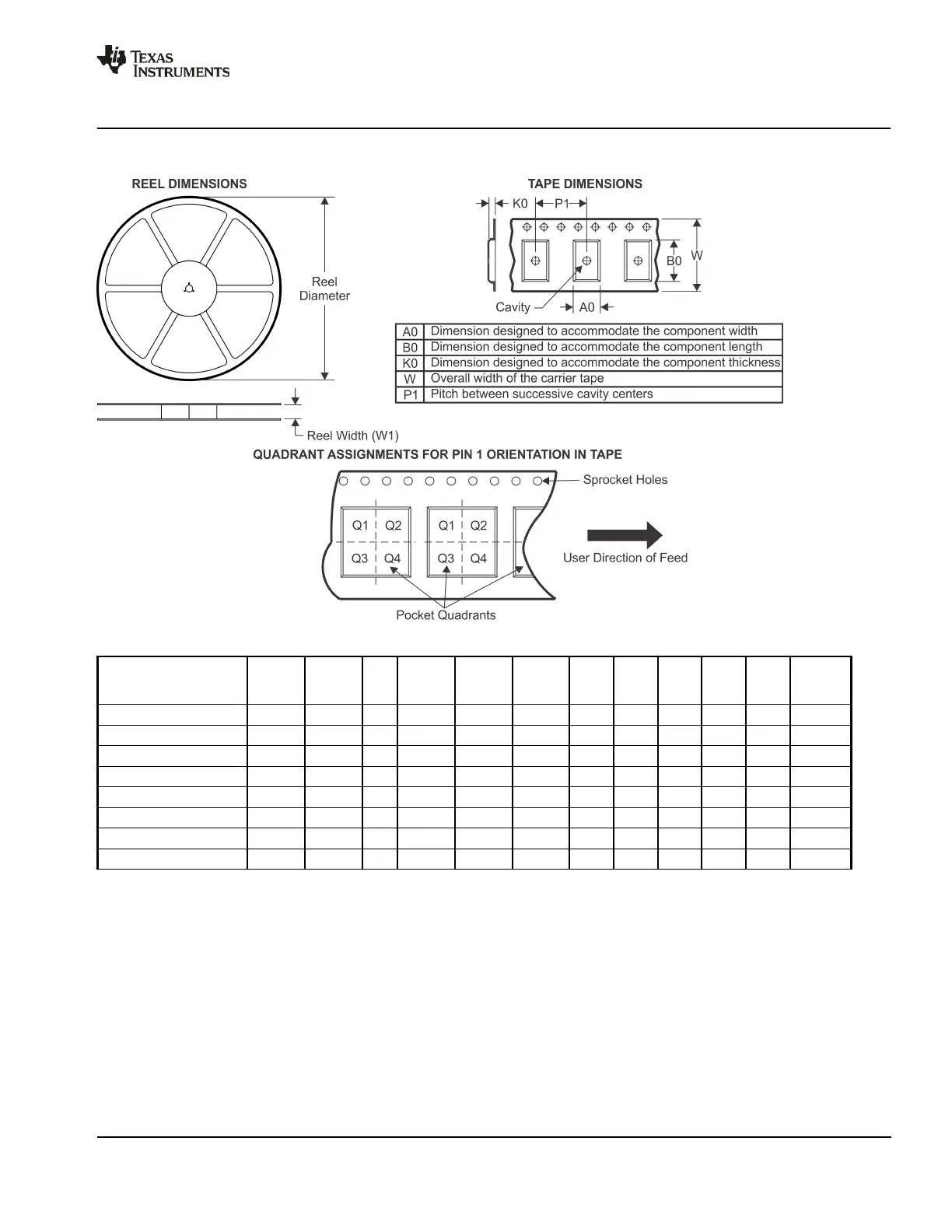

TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package
Type
Package
Drawing
Pins SPQ Reel
Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm)
B0
(mm)
K0
(mm)
P1
(mm)
W
(mm)
Pin1
Quadrant
LMK04821NKDR WQFN NKD 64 1000 330.0 16.4 9.3 9.3 1.3 12.0 16.0 Q1
LMK04821NKDT WQFN NKD 64 250 178.0 16.4 9.3 9.3 1.3 12.0 16.0 Q1
LMK04826BISQ/NOPB WQFN NKD 64 1000 330.0 16.4 9.3 9.3 1.3 12.0 16.0 Q1
LMK04826BISQE/NOPB WQFN NKD 64 250 178.0 16.4 9.3 9.3 1.3 12.0 16.0 Q1
LMK04826BISQX/NOPB WQFN NKD 64 2000 330.0 16.4 9.3 9.3 1.3 12.0 16.0 Q1
LMK04828BISQ/NOPB WQFN NKD 64 1000 330.0 16.4 9.3 9.3 1.3 12.0 16.0 Q1
LMK04828BISQE/NOPB WQFN NKD 64 250 178.0 16.4 9.3 9.3 1.3 12.0 16.0 Q1
LMK04828BISQX/NOPB WQFN NKD 64 2000 330.0 16.4 9.3 9.3 1.3 12.0 16.0 Q1
PACKAGE MATERIALS INFORMATION
www.ti.com 15-Sep-2018
Pack Materials-Page 1
