GPIO
Signal
1
Sampling Window
Output
From Qualifier
1 1 1 1 1 1 1 1 1 1 10 0 0 0 0 0 0 0 0 0
SYSCLKOUT
QUALPRD = 1
(SYSCLKOUT/2)
See Note (A)
Sampling period, determined by GPxQUAL
[QUALPRD]
(SYSCLKOUT cycle x 2 x QUALPRD) x 5
TMS320F2810, TMS320F2811, TMS320F2812
TMS320C2810, TMS320C2811, TMS320C2812
SPRS174T –APRIL 2001–REVISED MAY 2012
www.ti.com
6.19 General-Purpose Input/Output (GPIO) – Input Timing
A. This glitch is ignored by the input qualifier. The QUALPRD bit field specifies the qualification sampling period. It can
vary from 00 to 0xFF. Input qualification is not applicable when QUALPRD = 00. For any other value “n”, the
qualification sampling period is 2n SYSCLKOUT cycles (that is, at every 2n SYSCLKOUT cycle, the GPIO pin will be
sampled). Six consecutive samples must be of the same value for a given input to be recognized.
B. For the qualifier to detect the change, the input must be stable for 10 SYSCLKOUT cycles or greater. In other words,
the inputs should be stable for (5 × QUALPRD × 2) SYSCLKOUT cycles. This would enable five sampling periods for
detection to occur. Since external signals are driven asynchronously, a 13-SYSCLKOUT-wide pulse provides reliable
recognition.

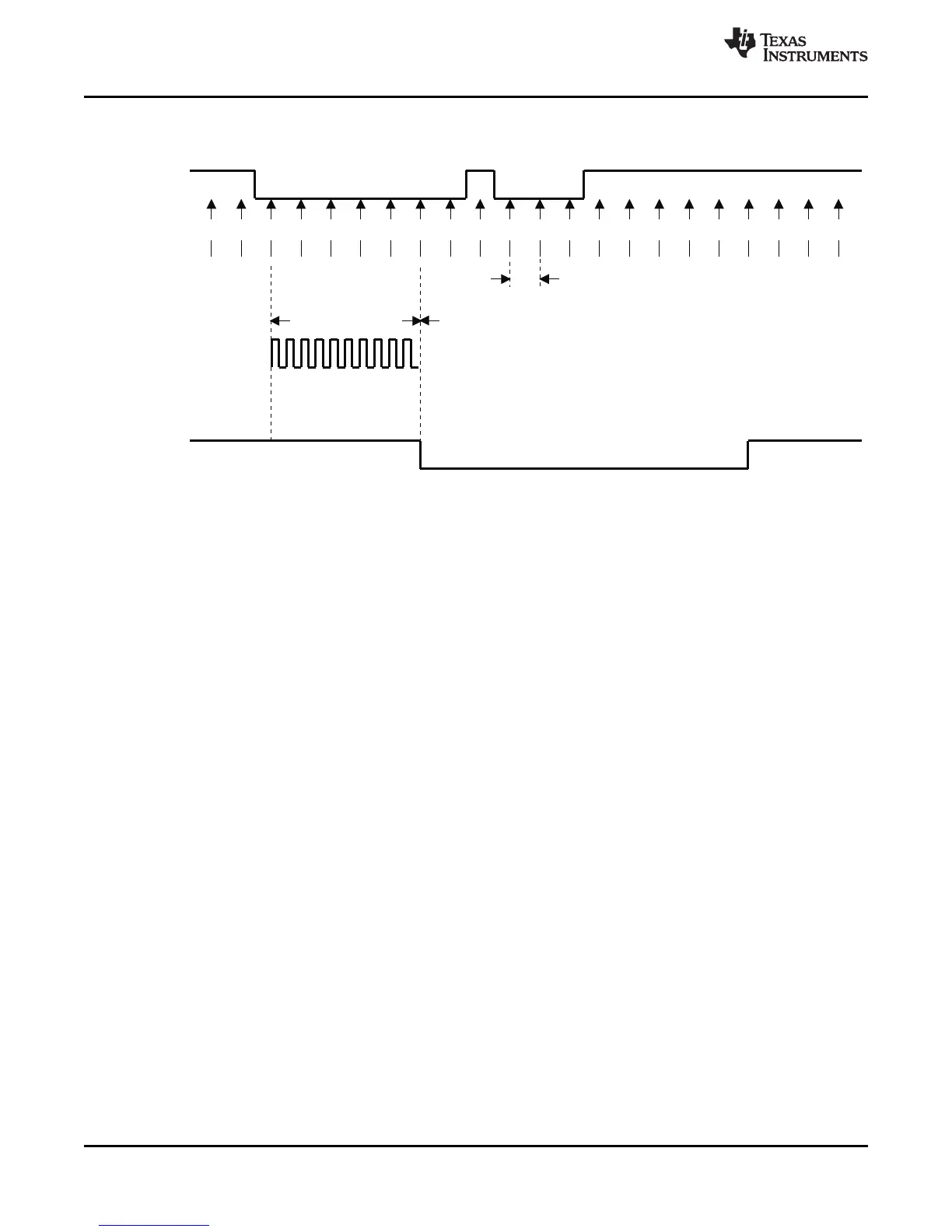

Figure 6-24. GPIO Input Qualifier – Example Diagram for QUALPRD = 1
