M51
M50
M47
CLKX
FSX
DX
DR
M44
M48
M49
M43
LSB MSB
M52
Bit 0
Bit(n-1) (n-2) (n-3) (n-4)
Bit 0
Bit(n-1) (n-2) (n-3) (n-4)
TMS320F2810, TMS320F2811, TMS320F2812
TMS320C2810, TMS320C2811, TMS320C2812
www.ti.com
SPRS174T APRIL 2001REVISED MAY 2012
Table 6-56. McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 10b, CLKXP = 1)
(1)
MASTER SLAVE
NO. UNIT
MIN MAX MIN MAX
M49 t
su(DRV-CKXH)
Setup time, DR valid before CLKX high 30 8P 10 ns
M50 t
h(CKXH-DRV)
Hold time, DR valid after CLKX high 1 8P 10 ns
M51 t
su(FXL-CKXL)
Setup time, FSX low before CLKX low 8P + 10 ns
M52 t
c(CKX)
Cycle time, CLKX 2P 16P ns
(1) 2P = 1/CLKG.
For all SPI slave modes, CLKX has to be minimum 8 CLKG cycles. Also CLKG should be LSPCLK/2 by setting CLKSM = CLKGDV = 1.
With maximum LSPCLK speed of 75 MHz, CLKX maximum frequency will be LSPCLK/16 , that is 4.6875 MHz and P = 13.3 ns.
Table 6-57. McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 10b, CLKXP = 1)
(1)
MASTER SLAVE
NO. PARAMETER UNIT
MIN MAX MIN MAX
M43 t
h(CKXH-FXL)
Hold time, FSX low after CLKX high 2P ns
M44 t
d(FXL-CKXL)
Delay time, FSX low to CLKX low P ns
Disable time, DX high impedance following last data bit
M47 t
dis(FXH-DXHZ)
6 6P + 6 ns
from FSX high
M48 t
d(FXL-DXV)
Delay time, FSX low to DX valid 6 4P + 6 ns
(1) 2P = 1/CLKG.
For all SPI slave modes, CLKX has to be minimum 8 CLKG cycles. Also CLKG should be LSPCLK/2 by setting CLKSM = CLKGDV = 1.
With maximum LSPCLK speed of 75 MHz, CLKX maximum frequency will be LSPCLK/16 , that is 4.6875 MHz and P = 13.3 ns.

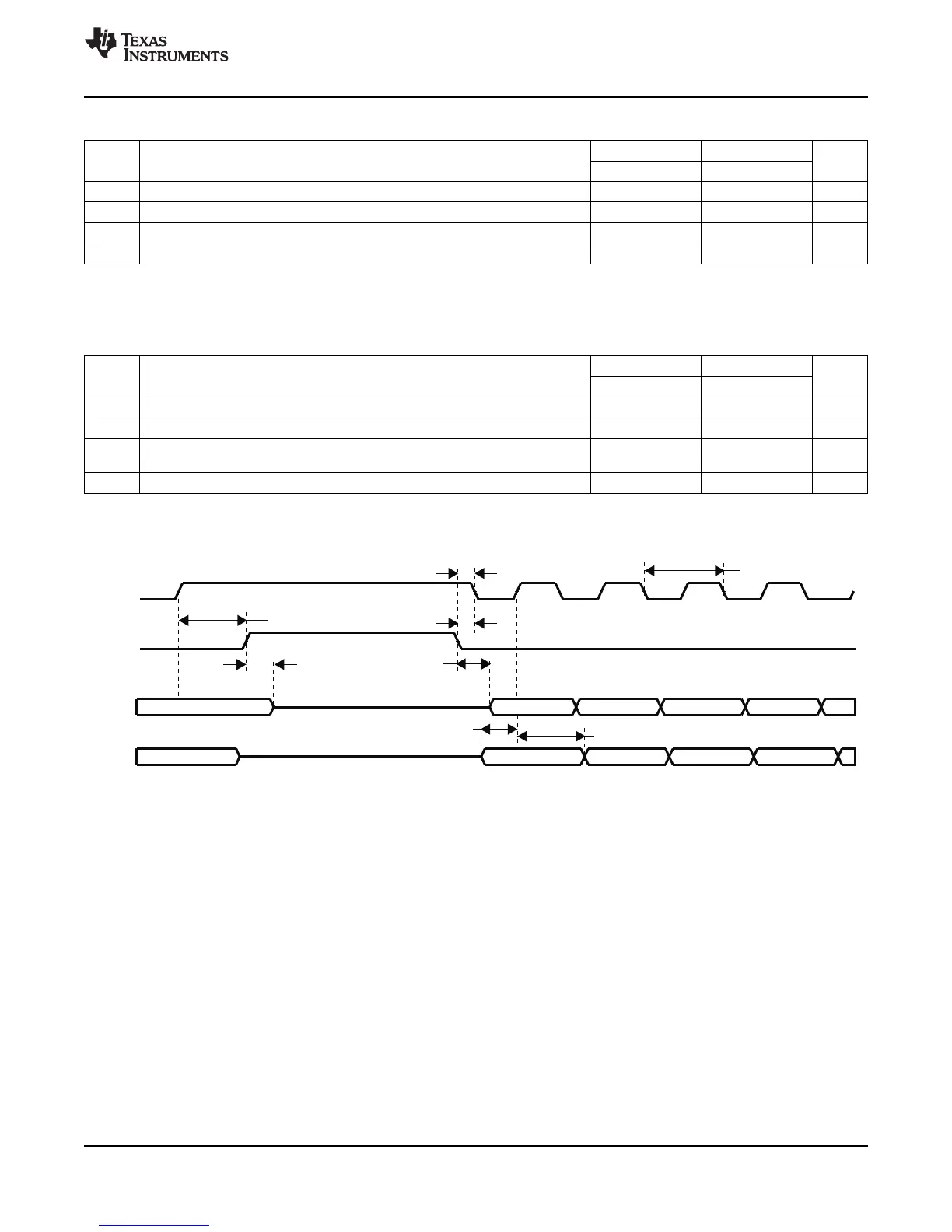

Figure 6-47. McBSP Timing as SPI Master or Slave: CLKSTP = 10b, CLKXP = 1
Copyright © 2001–2012, Texas Instruments Incorporated Electrical Specifications 155
Submit Documentation Feedback
Product Folder Link(s): TMS320F2810 TMS320F2811 TMS320F2812 TMS320C2810 TMS320C2811 TMS320C2812
