Texas Instruments TMS320C2810 User Manual

Bit 0
Bit 0
CLKX
FSX
DX
DR
M35
M37
M40
M39
M38
M34
LSB MSB
M41
M42
Bit(n-1)
Bit(n-1)
(n-2)
(n-2)
(n-3)
(n-3)
(n-4)
(n-4)
TMS320F2810, TMS320F2811, TMS320F2812
TMS320C2810, TMS320C2811, TMS320C2812
SPRS174T –APRIL 2001–REVISED MAY 2012 www.ti.com
Table 6-54. McBSP as SPI Master or Slave Timing Requirements (CLKSTP = 11b, CLKXP = 0)
(1)
MASTER SLAVE
NO. UNIT
MIN MAX MIN MAX
M39 t
su(DRV-CKXH)
Setup time, DR valid before CLKX high 30 8P – 10 ns
M40 t
h(CKXH-DRV)
Hold time, DR valid after CLKX high 1 8P – 10 ns
M41 t
su(FXL-CKXH)
Setup time, FSX low before CLKX high 16P + 10 ns
M42 t
c(CKX)
Cycle time, CLKX 2P 16P ns
(1) 2P = 1/CLKG.
For all SPI slave modes, CLKX has to be minimum 8 CLKG cycles. Also CLKG should be LSPCLK/2 by setting CLKSM = CLKGDV = 1.
With maximum LSPCLK speed of 75 MHz, CLKX maximum frequency will be LSPCLK/16 , that is 4.6875 MHz and P = 13.3 ns.
Table 6-55. McBSP as SPI Master or Slave Switching Characteristics (CLKSTP = 11b, CLKXP = 0)
(1)
MASTER SLAVE
NO. PARAMETER UNIT
MIN MAX MIN MAX
M34 t
h(CKXL-FXL)
Hold time, FSX low after CLKX low P ns
M35 t
d(FXL-CKXH)
Delay time, FSX low to CLKX high 2P ns
Disable time, DX high impedance following last data bit
M37 t
dis(CKXL-DXHZ)
P + 6 7P + 6 ns
from CLKX low
M38 t
d(FXL-DXV)
Delay time, FSX low to DX valid 6 4P + 6 ns
(1) 2P = 1/CLKG.
For all SPI slave modes, CLKX has to be minimum 8 CLKG cycles. Also CLKG should be LSPCLK/2 by setting CLKSM = CLKGDV = 1.
With maximum LSPCLK speed of 75 MHz, CLKX maximum frequency will be LSPCLK/16 , that is 4.6875 MHz and P = 13.3 ns.

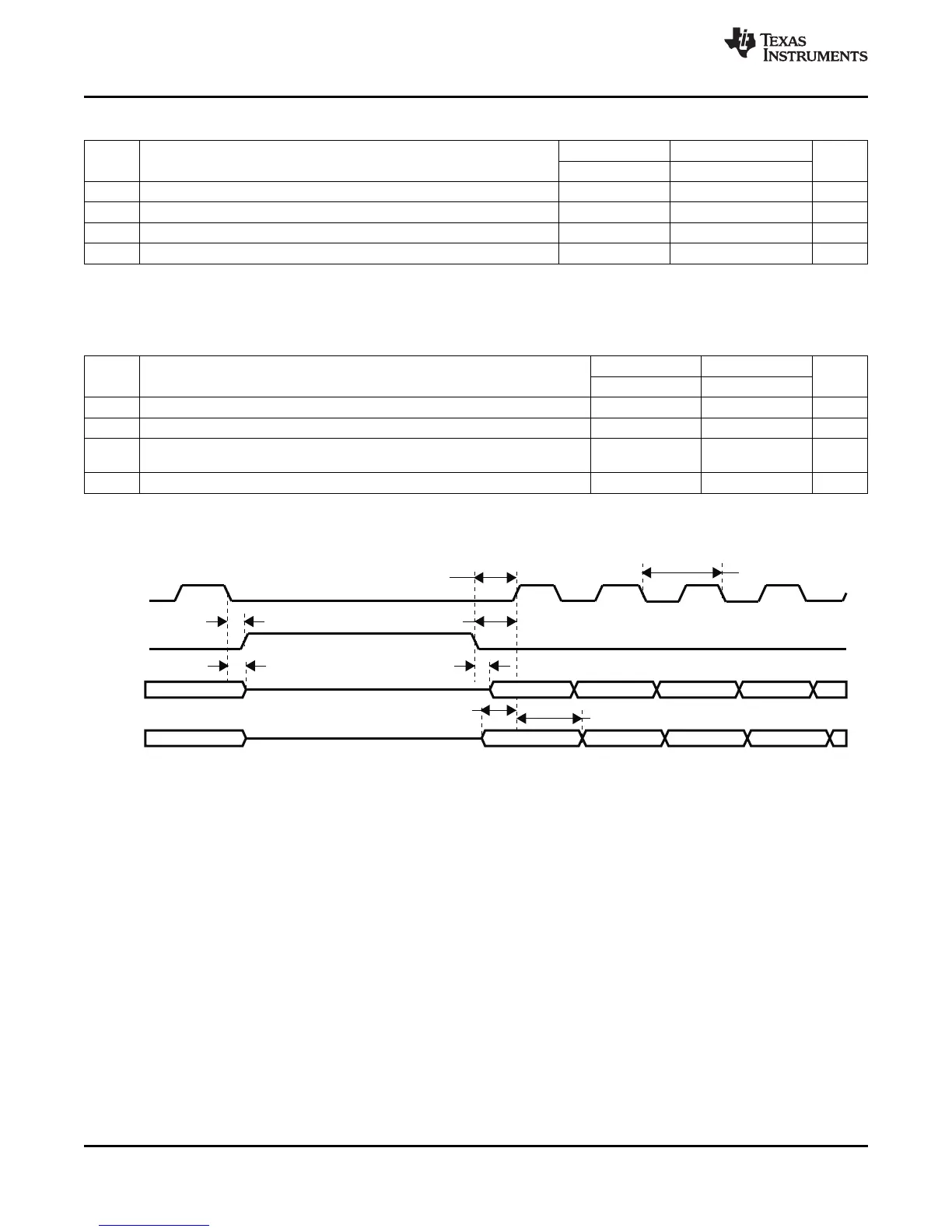

Figure 6-46. McBSP Timing as SPI Master or Slave: CLKSTP = 11b, CLKXP = 0
154 Electrical Specifications Copyright © 2001–2012, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Link(s): TMS320F2810 TMS320F2811 TMS320F2812 TMS320C2810 TMS320C2811 TMS320C2812
