Thames Side Smart Series - Digital Output and Input Settings

Configuration and Calibration
3-16
3.7 Digital outputs
(Accessible only after having installed the Digital Outputs accessory)
Within the digital outputs configuration level, parameters showed in Figure 3.7.1 can be
found.
d
d
do
_
_
_u
o
h
bt
t
4
4
4
lin_b out_b
gross
on
0net inrangss
net
neg
p_rel
printtare
n_rel p_prel
pc_ctr
n_prel 0ero
tot
3
3
3
2
2
2
1
1
1
h
off
off
off
o
l
t
u
y
dr
y
u
u
op
t
i
r
pl
t
cut
p
e
e
l
n

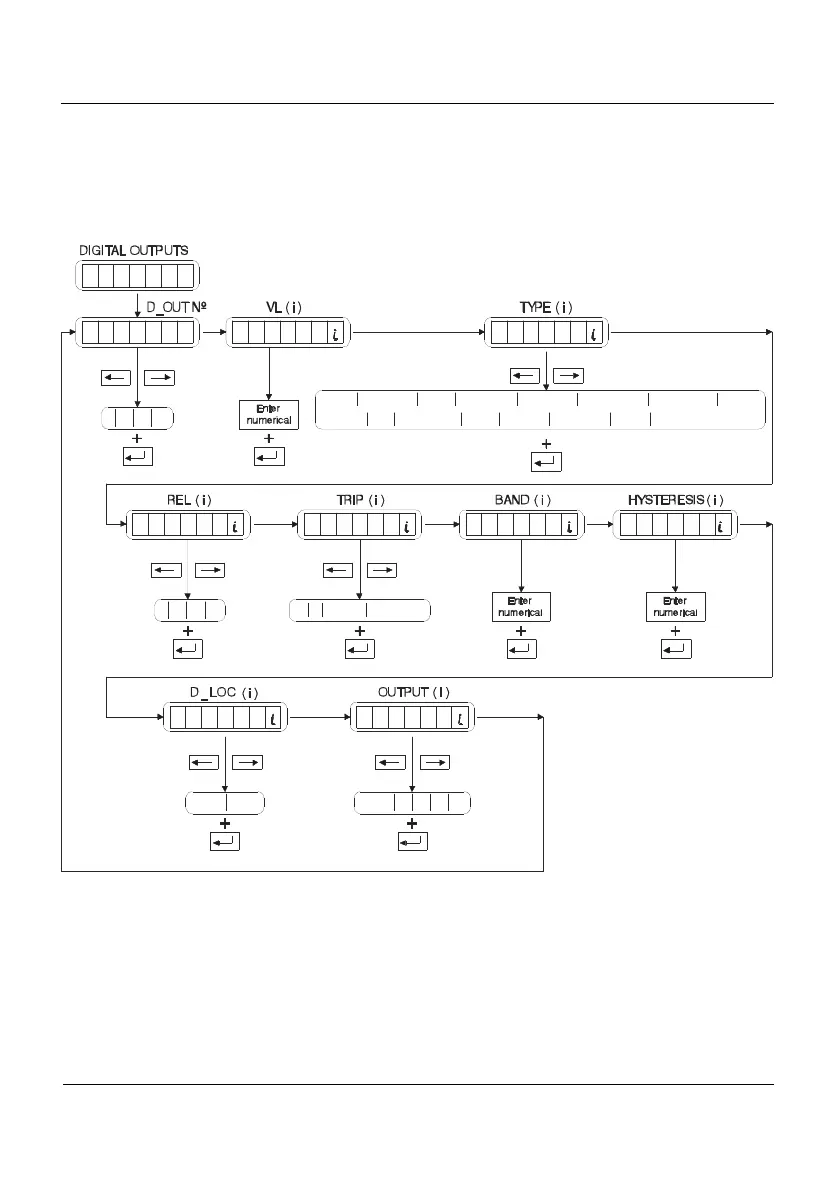

Figure 3.7.1 Digital outputs
3.7.1 D_OUT Nº (d_out n)
Select the number of output.
These are the options:
1, 2, 3, 4
3.7.2 VL(i) (ul)
Value with which the selected output operates.
