Connector description
5-5

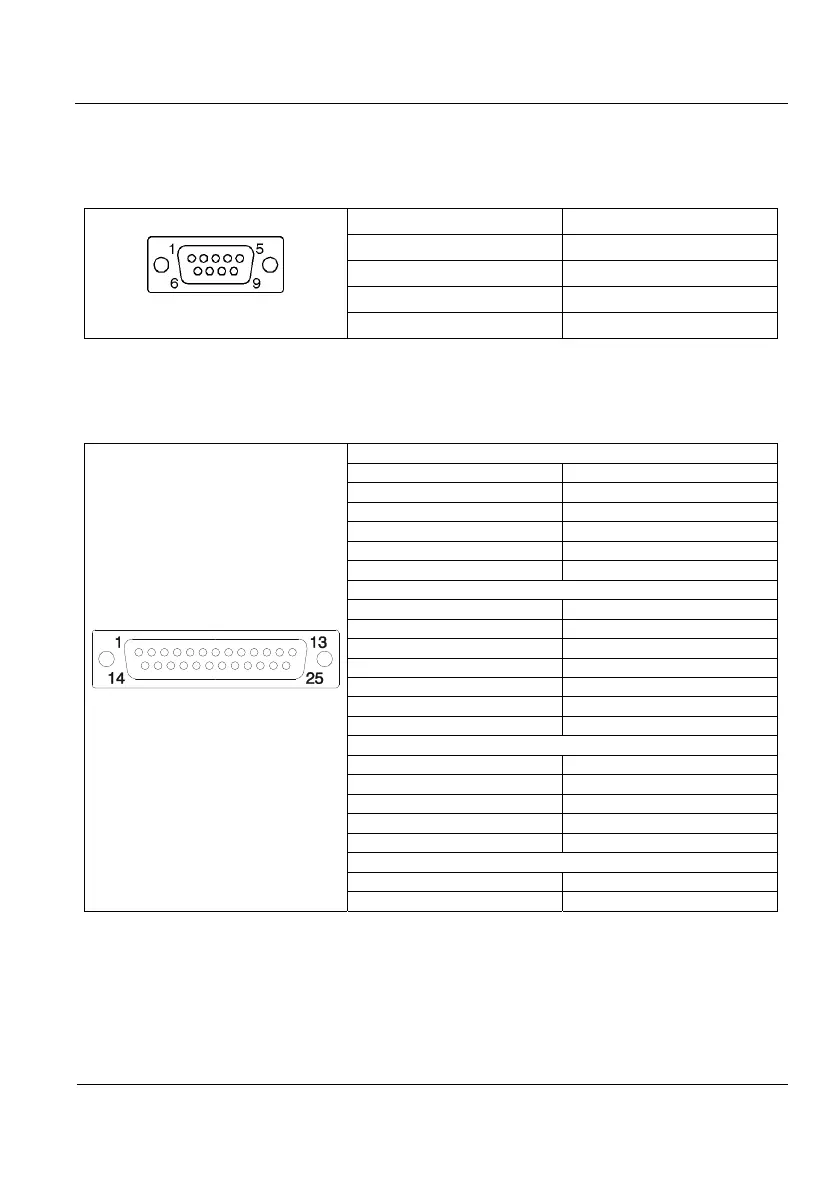

5.4.1 RS-232 (Tx) Connector
The indicator connector is a male SUB-D 9.
SUB-D 9 aerial female connector
Pin allocation
welding's side view
PIN SIGNAL
2 -
3 TxD
5 GND
7 RTS
Tabla 5.4.1.1 RS-232 (Tx). Connector Allocation
5.5 Digital/Analog input/Output and RS-485 connector
The indicator connector is a male SUB-D 25.
SUB-D 25 aerial female connector
Pin allocation
welding's side view
DIGITAL INPUT
PIN SIGNAL
5 IN1
18 IN2
6 IN3
19 IN4
4 GND
DIGITAL OUTPUT
PIN SIGNAL
9 Vext
10 D-OUT1
22 D-OUT2
11 D-OUT3
23 D-OUT4
4 GND
ANALOG OUTPUT
PIN SIGNAL
2 V+
3,15 V-
1 I+
14 I-
RS-485
16 DATA +
17 DATA -
Tabla 5.5.1 Digital/Analog input/Output and RS-485 connector allocation
