Hilliard Clutch Maintenance
128
1
2
3
4
5
6
7
8
9
8
7
10
11
12
13
14
7
8
15
16
15
8
7
14
17
aea558
(3 belt grooves)

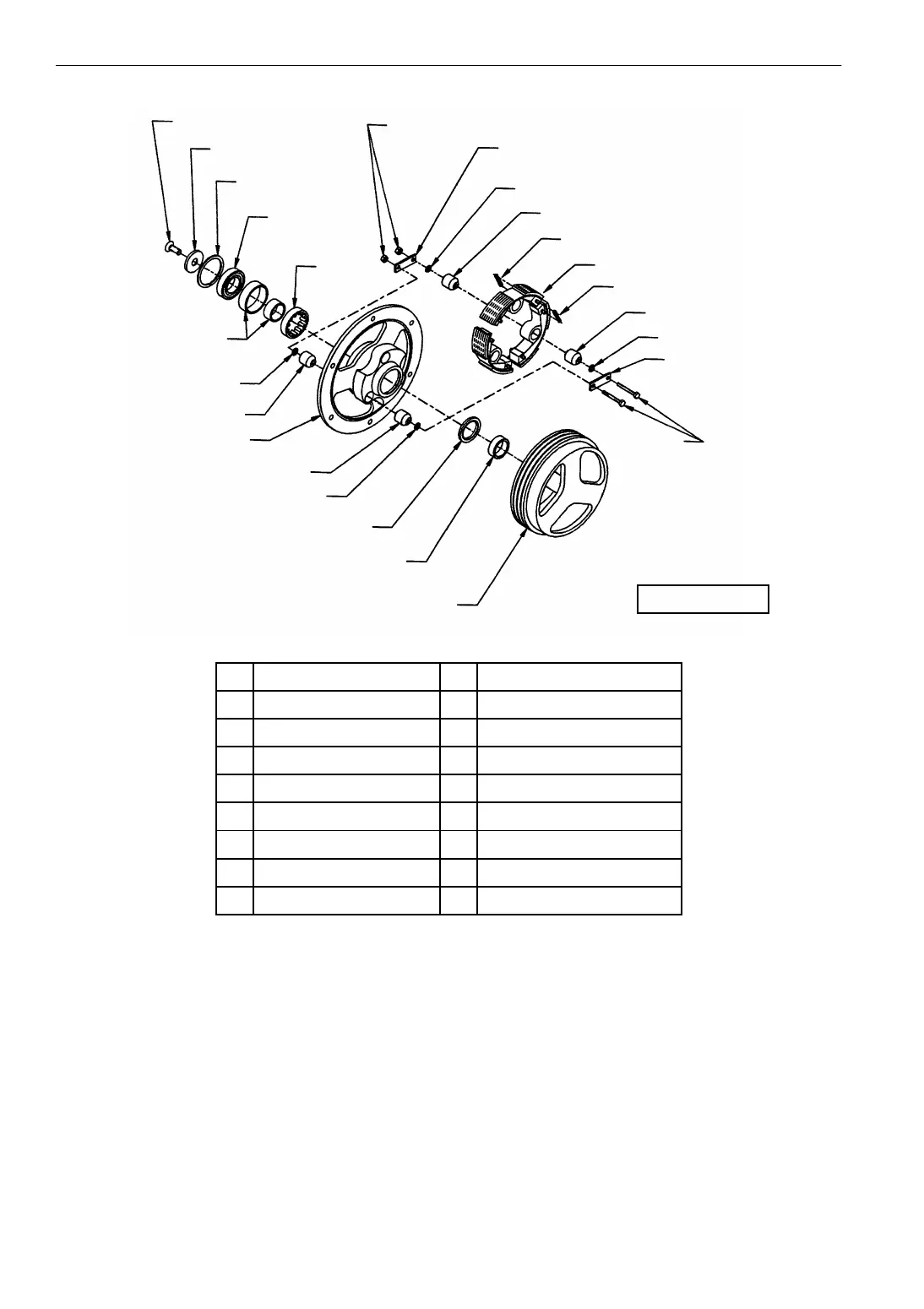

1. Screw 10. Grease Seal
2. Washer 11. Roller Bearing Inner Race
3. Snap-Ring 12. Pulley Housing
4. Ball Bearing 13. Elastic Stop Nuts (6)
5. Large & Small Spacers 14. Connector Link (6)
6. Rolling Bearing 15. Spring (6)
7. Lockwasher (12) 16. Shoe Assembly (3)
8. Bushing (6) 17. Screws (6)
9. Hub
Clutch Assembly
