Thermo King RD-MT - Unit Controls; TG-V Multi-Temp Control Box

To Next Page

To Previous Page

Unit Description

1. One Temp/Two Temp Switch 6. Preheat/Start Switch

2. Auto Start/Stop - Continuous Run Switch 7. Run Hourmeter (Optional on Model 50)

3. Stop Start Light (Optional) 8. Electric Operation Hourmeter (Optional on Model 50)

4. Engine Reset 9. Engine Hourmeter

5. On/Off Switch

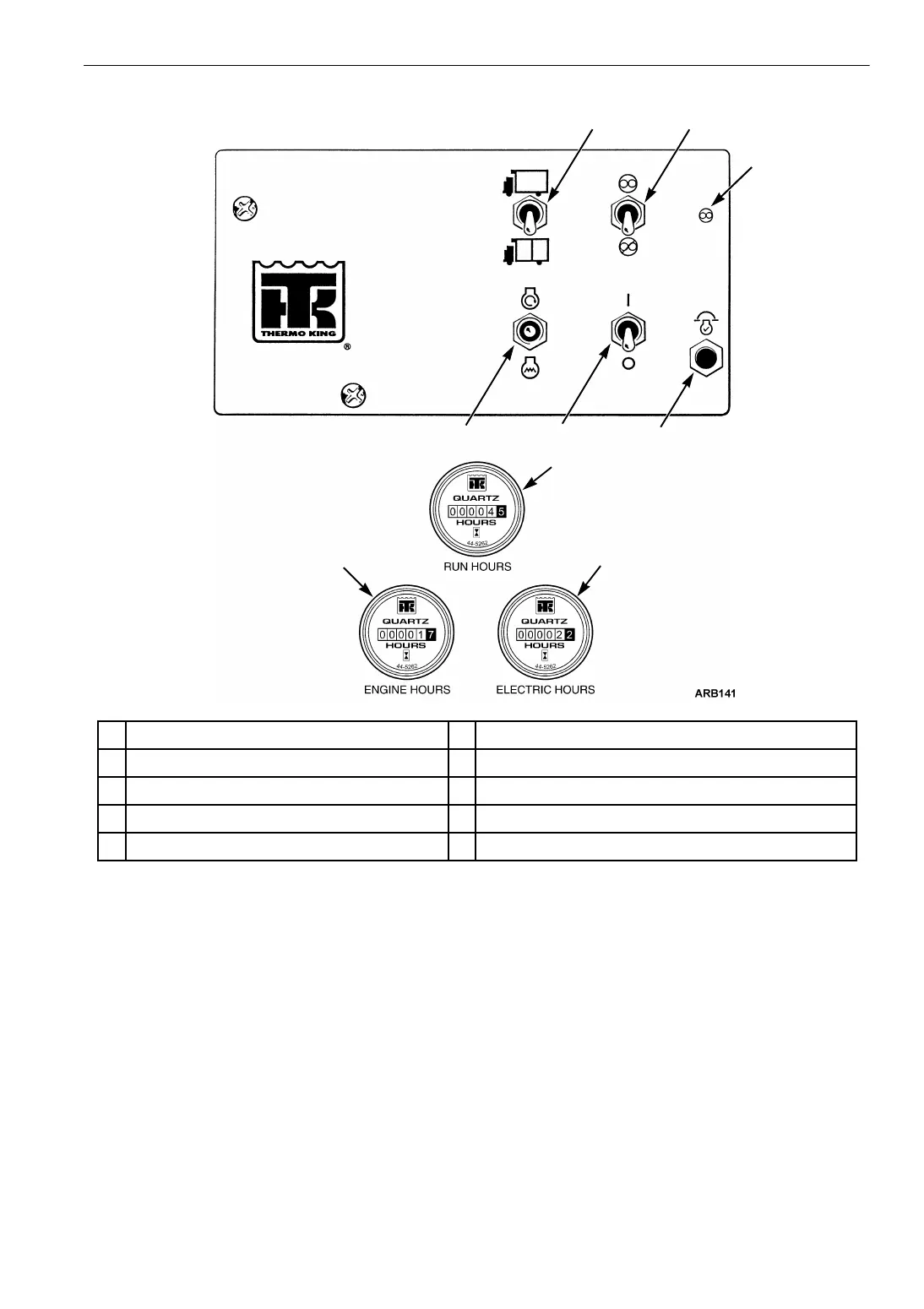

Figure 15: TG-V Multi-Temp Control Box
