Engine Maintenance

An air restriction indicator is installed in the air

intake elbow. Visually inspect the restriction

indicator periodically to assure the air filter is not

restricted. Service the air filter when the yellow

diaphragm indicates 22 in. (559 mm) of vacuum.

Press the reset button on the bottom of the

restriction indicator after servicing the air filter.

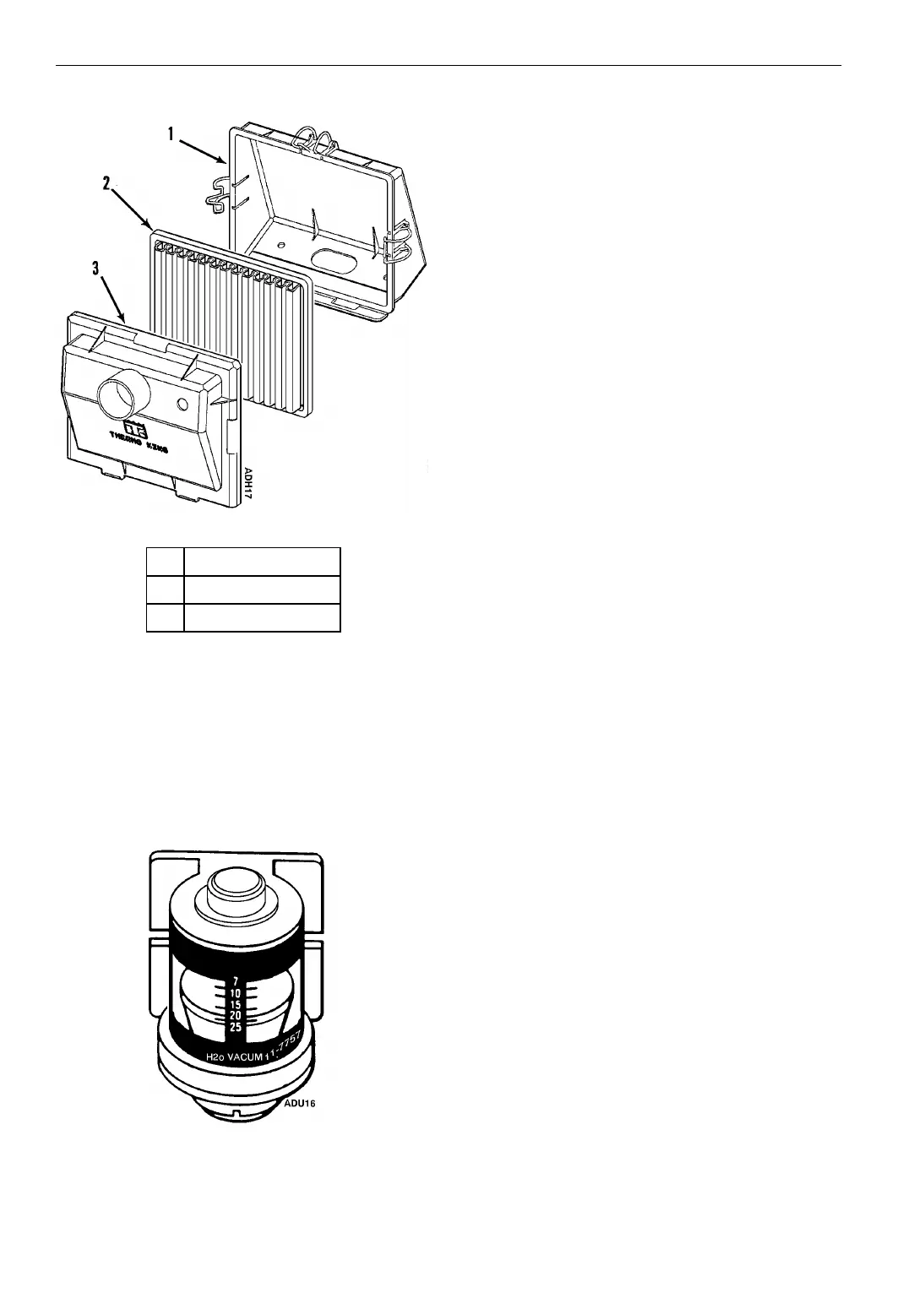

Figure 33: Air Restriction Indicator

1. Air Filter Box

2. Air Filter

3. Air Filter Cover

Figure 32: Dry Air Cleaner (Optional)
