Thermo Scientific TSQ Quantum Access MAX User Manual

6
Maintenance
Cleaning the Q00 Ion Optics
94 TSQ Series Hardware Manual Thermo Scientific
b. Carefully feed the cable harness back through the roughing pump adapter and out of
the front of the cage assembly to ensure that it does not get trapped between the cage
and the ion source mount assembly while you are removing the cage assembly. See
Figure 55.

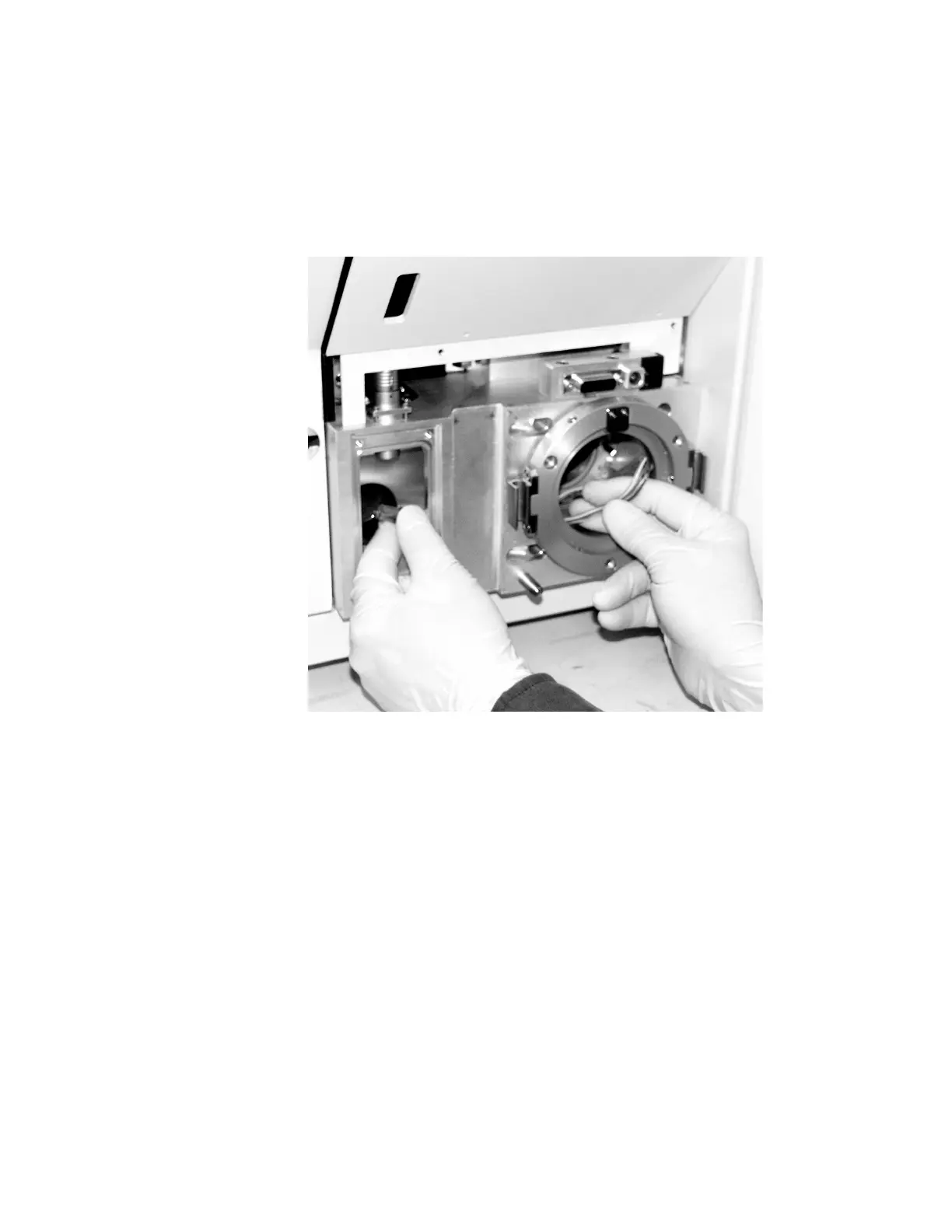

Figure 55. Pulling the ion source cable harness out of the ion optics cage assembly

Thermo Scientific TSQ Quantum Access MAX Specifications

General

Brand	Thermo Scientific
Model	TSQ Quantum Access MAX
Category	Laboratory Equipment
Language	English
