Functional Description
Data System
48 TSQ Series Hardware Manual Thermo Scientific

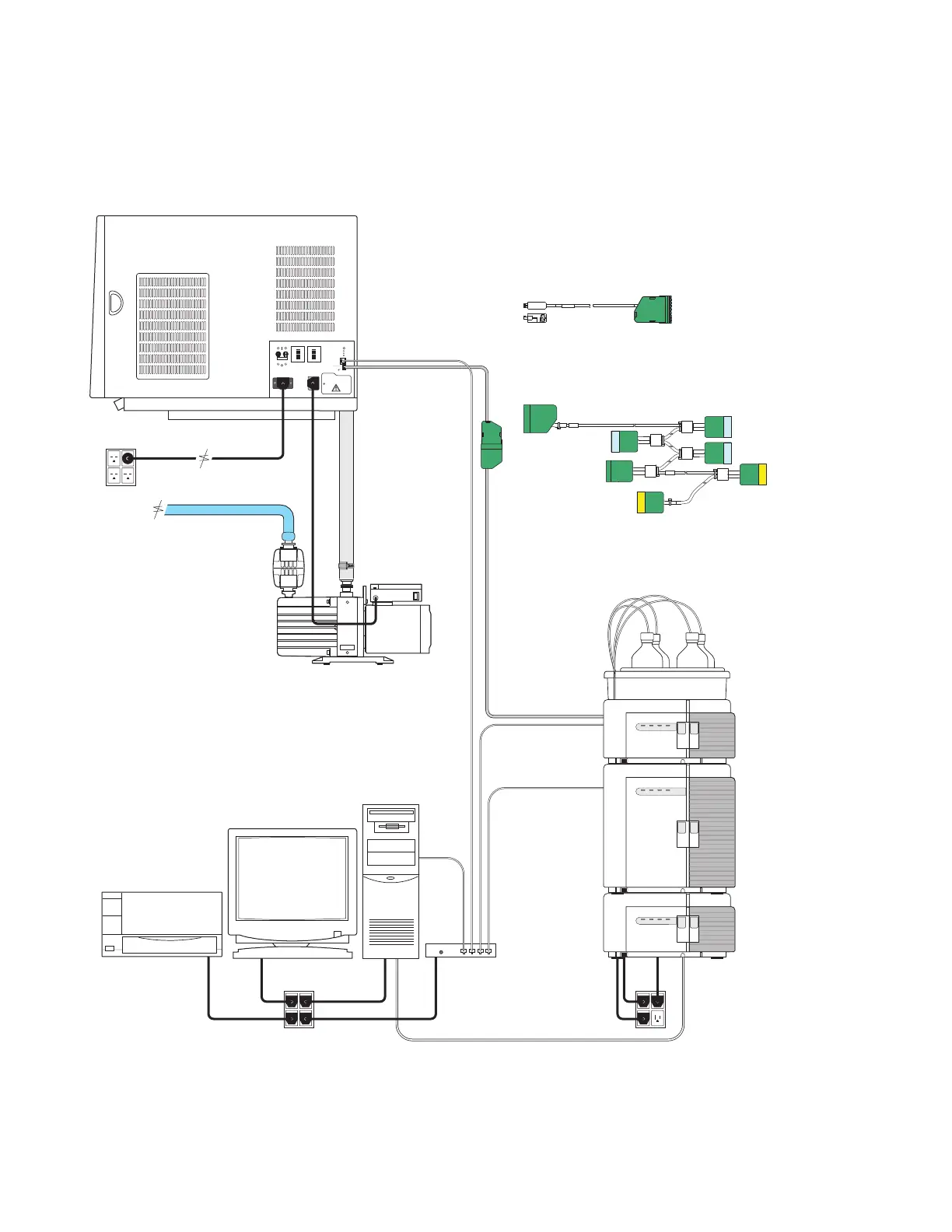

Figure 34. LC/MS system with a TSQ Series mass spectrometer, an Accela Autosampler, an Accela LC Pump, and an
Accela PDA Detector
I
0
Oil Mist Filter
Main Power
Off
Electronics Vacuum
Qualified
Service
Personnel
Only
Operating Mode
Service Mode
Power In
Operating Mode
Service Mode
System Reset
Pump On
Vent Valve Closed
Ethernet Link OK
Ethernet
100 Base T
+ 30V Max
Start In
Refer to Manual
Forepump
V ~230 50/60 Hz, 5.0 A Max
V ~230 50/60 Hz, 15.0 A Max
On
DETECTOR
DETECTOR
DETECTOR
PUMP
PUMP
A/S
M/S
Power Communication Run Degas
ACCELA
Pump
Power Communication Run Lamps
ACCELA
PDA Detector
Power Communication Run Temperature
ACCELA
Autosampler
TSQ mass spectrometer
Power panel
TSQ adapter cable
(synchronization)
Accela system interconnect cable
(synchronization)
Accela HPLC system
PDA detector
Autosampler
Data system
LC pump
Ethernet switch
Ethernet cables
(communication)
USB cable (communication)
