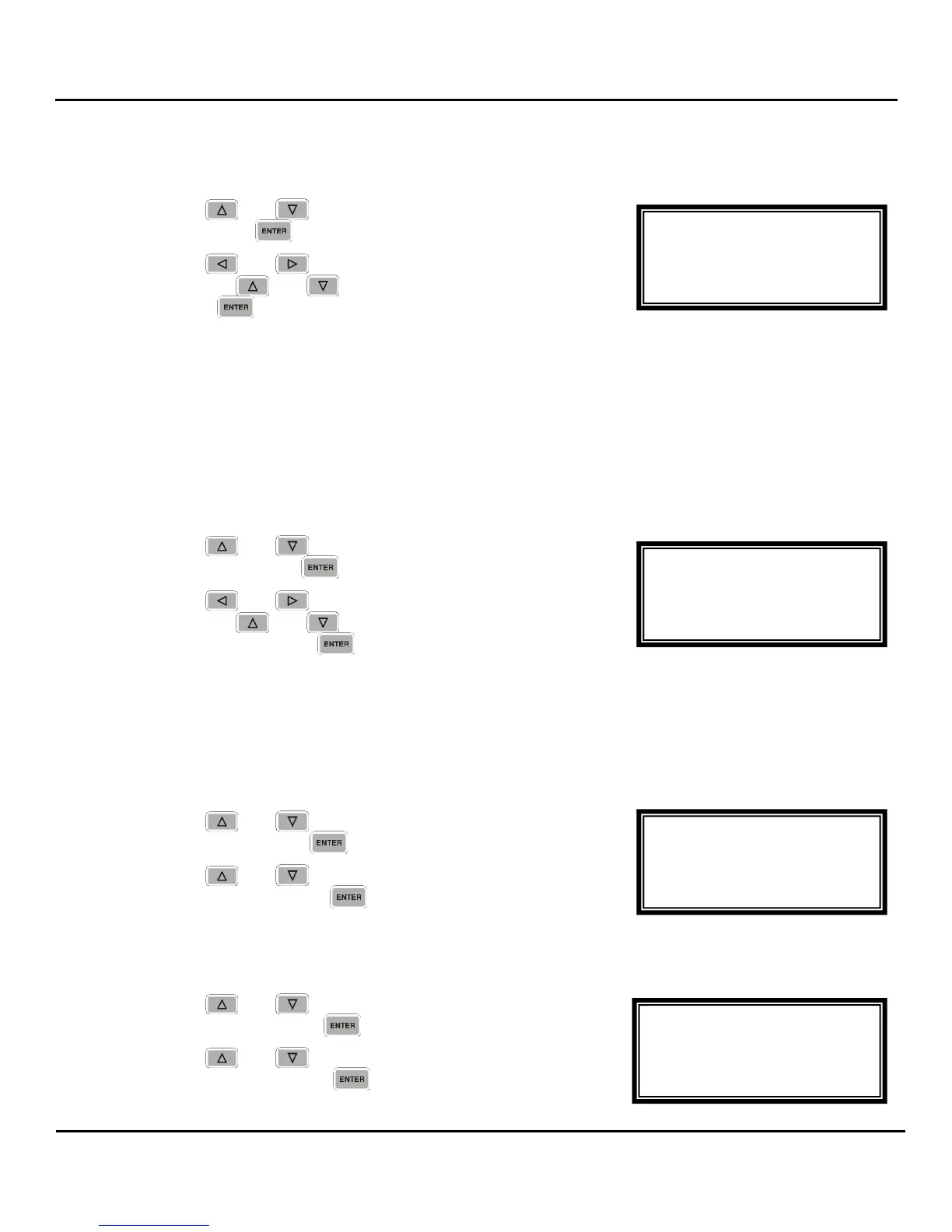

IP
1. Use the and buttons to move the cursor to “IP:”
then press the button.
2. Use the and buttons to select the column to edit
and use the and buttons to change the IP, then
press the button to save the selection.
Notes:- A Unicast or Multicast IP address may be chosen.
Unicast: X.X.X.X – 223.255.255.255
Multicast: 224.0.0.0 – 239.255.255.255
Suggested Multicast Range: 239.192.X.X.
- In case of unicast reception, the unit takes into account only the port number and not the source
IP address.
Destination Port
1. Use the and buttons to move the cursor to “Dest
Port:” then press the button.
2. Use the and buttons to select the column to edit
and use the and buttons to change the port (0 –
65536), then press the button to save the selection.
Forward Error Correction
This setting lets the unit know if it should be expecting FEC data with the active receive group. If no
FEC data is expected, this setting can be disabled to allow multicasts closer together on the same IP.
1. Use the and buttons to move the cursor to
“FEC:” then press the button.
2. Use the and buttons to select “enable” or
“disable”, then press the button to save the selection.
Synchronized Source Setup
1. Use the and buttons to move the cursor to
“SSRC:” then press the button.
2. Use the and buttons to select “Enable” or
“Disable”, then press the button to save the
selection.
MPEG/IP 1-4 2
FEC:Disable
►SSRC:Disable
SSRC Filt:0x00000000
MPEG/IP 1-4 2
Ip:239.192.1.50
Dest Port:01050
►FEC:Disable
MPEG/IP 1-4 2 ←→
Ip:239.192.1.50
►Dest Port:01050
FEC:Disable
MPEG/IP 1-4 2 ←→
►Ip:239.192.001.050
Dest Port:01050
FEC:Disable
To Next Page
