Time Electronics 5051 Plus - 7051 Terminal Panel

Time Electronics User Manual
5051 Plus and 7051 Plus Multifunction Calibrators v2.1
xx51+ Multifunction Calibrators Page 11 of 64

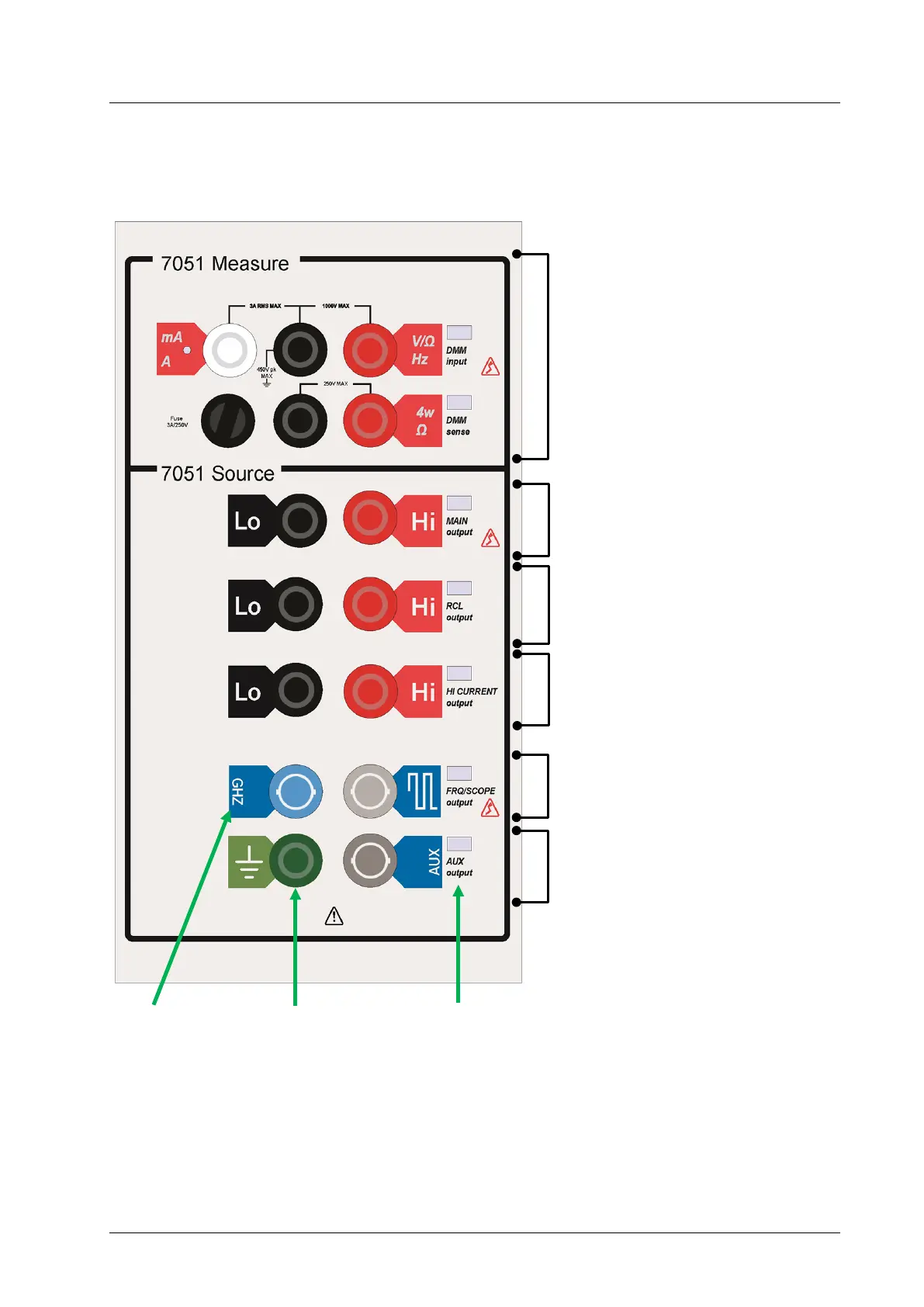

5.3. 7051 Terminal Panel
The terminal panel locates to the right side of the control centre module and features a Measure and
Source section.
Multimeter Section
• DCV to 1 kV
• ACV to 750 V
• DCI / ACI to 3 A
• Resistance: 0 to 100 MΩ
• Frequency: 3 Hz to 300 kHz
• Thermocouple Measure
• Pt100 Measure
Main Output
• DCV / ACV to 1 kV
• DCI / ACI to 200 mA
• 4-W Resistance Sense (optional)
RCL Output
• Resistance: 1 Ω to 120 MΩ
• Decade Resistance to 1 GΩ
• Capacitance 1 nF to 100 µF
• Inductance: 1 mH to 10 H
H
igh Current Output
• DCI / ACI 200 mA to 20 A
FRQ/Scope Output
• Amplitude to 200 V / Frequency
to 100 MHz
Aux Output
• ACV 20 kHz to 1 MHz (2 V max)
• ACV 20 kHz to 100 kHz (20 V max)
LED Function
Indications
2.2GHz Option
PE
Socket
