Time Electronics User Manual
5051 Plus and 7051 Plus Multifunction Calibrators v2.1
xx51+ Multifunction Calibrators Page 33 of 64

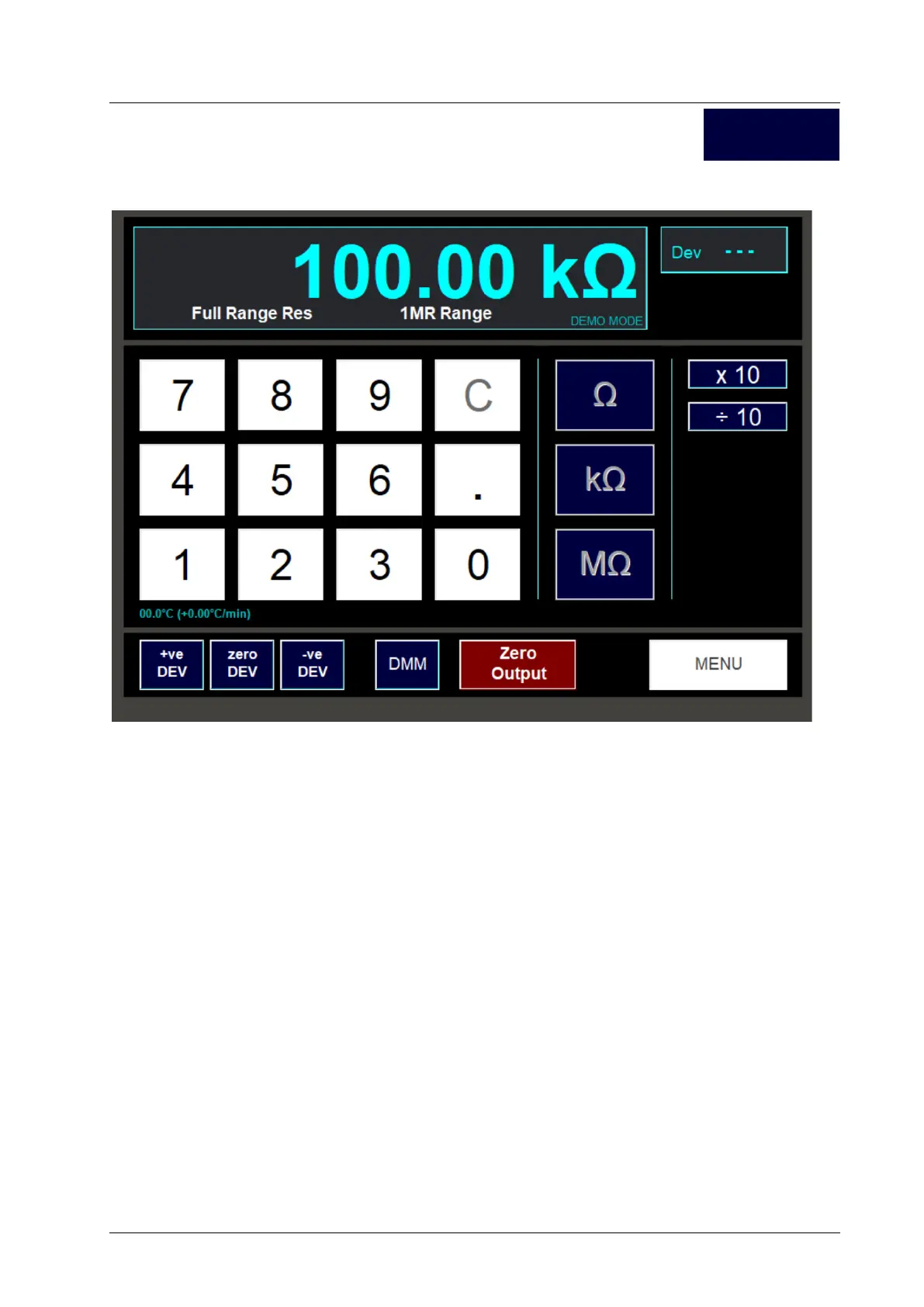

7.6.4. Full Range Resistance
Any resistance output between 1 ohm and 120M ohms may be selected.
7.6.4.1. Setting the Output Value
Enter the value required using the numeric keypad. Then press one of the unit buttons to set the
output.
Use the x10 and /10 buttons to multiply or divide the present output by ten.
Use the Dev buttons to deviate the output as required in the usual way.
Ensure screened leads are used for values above 100Kohms to avoid noise pickup.
7.6.4.2. Exiting the Full Range Resistance Screen
Press the Menu button to return to the R-G-C-L function selection screen.
