5051 Plus and 7051 Plus Multifunction Calibrators v2.1
xx51+ Multifunction Calibrators Page 31 of 64

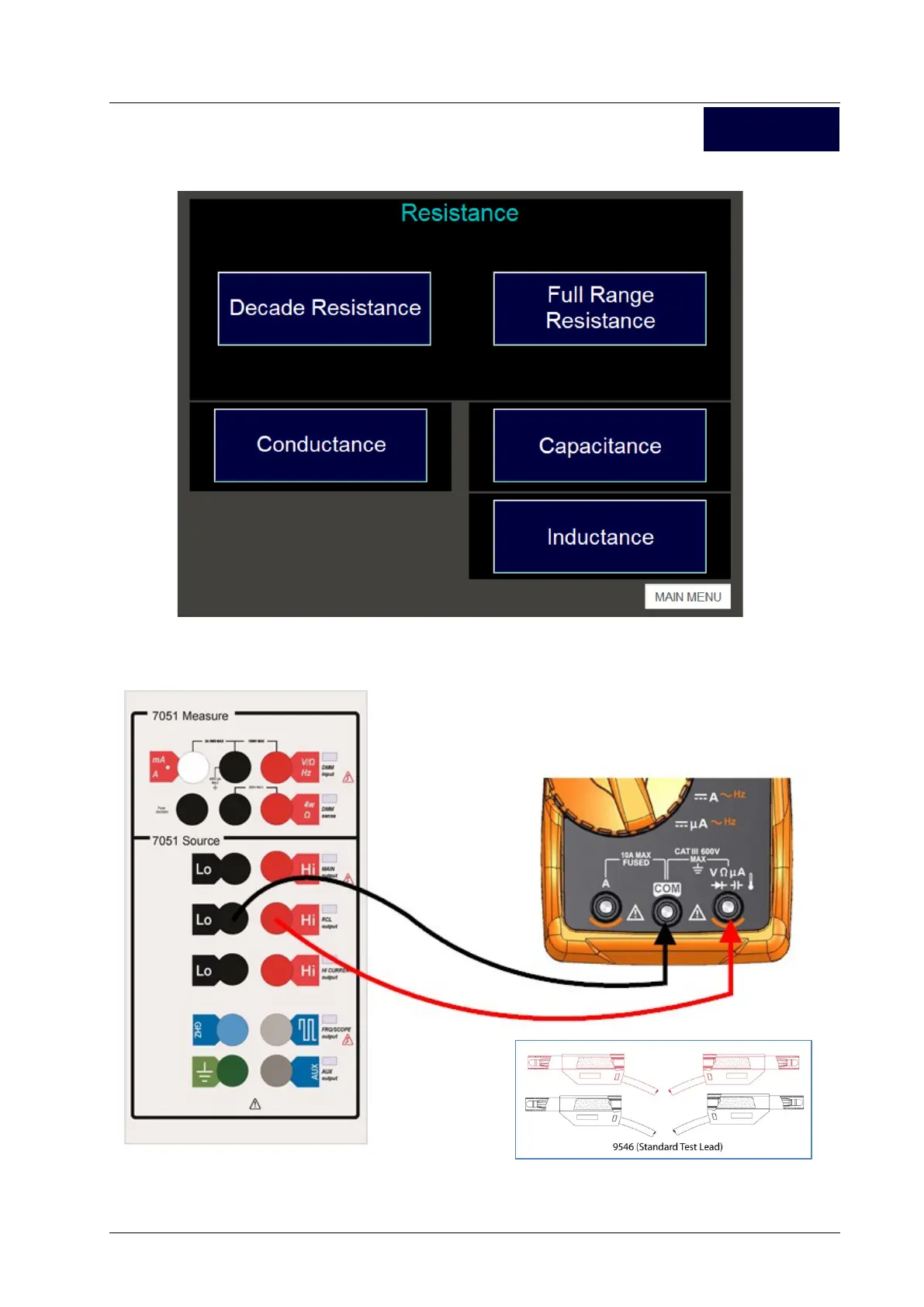

7.6.2. R-G-C-L Connection Diagram
Connection is via the RCL Output terminals for these functions:
R-G-C-L
