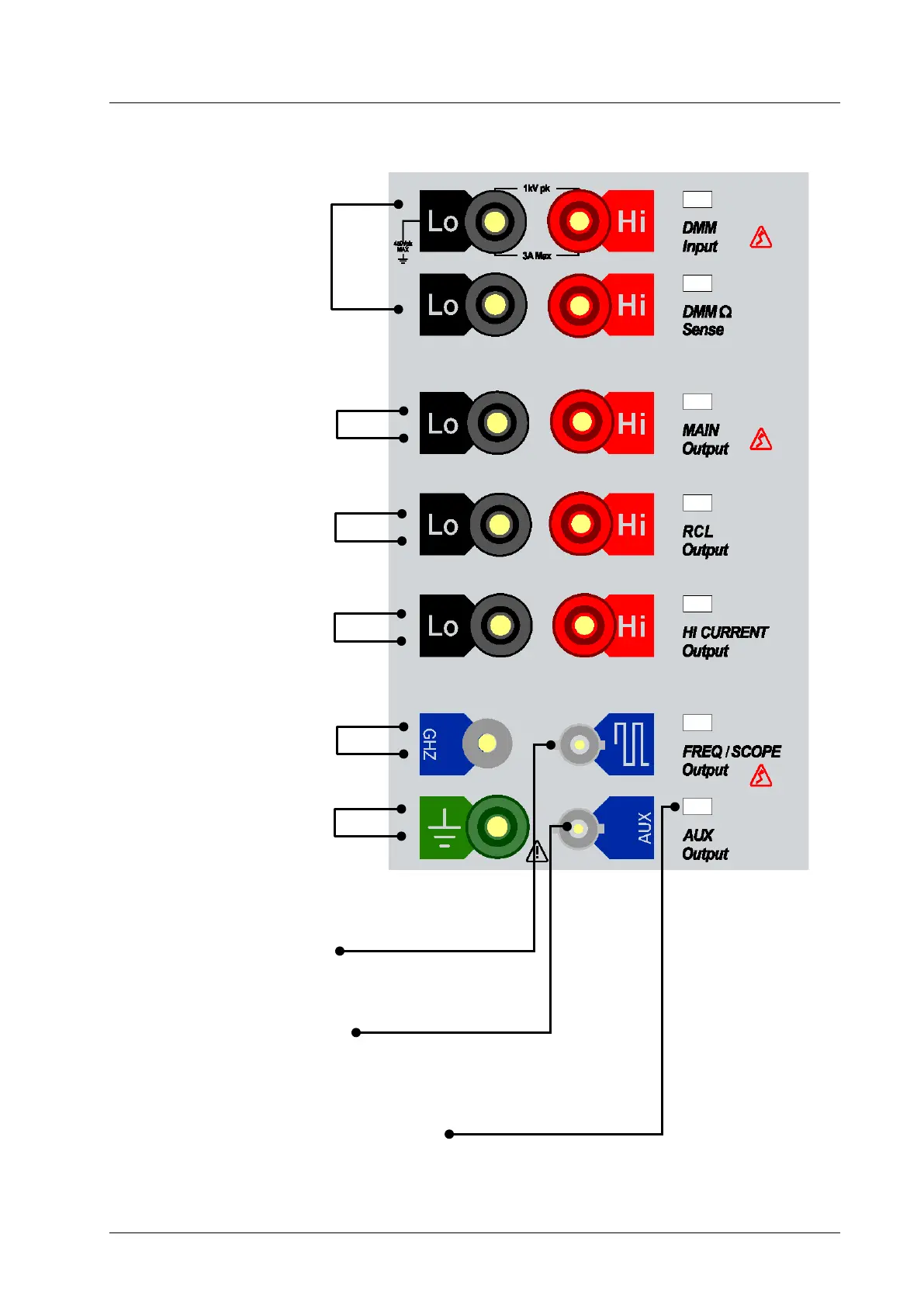

6.2. 5051 Terminal Panel
Main Output
•
DCV / ACV to 1 kV
•
DCI / ACI to 200 mA
•
4-W Resistance Sense (optional)
Multimeter Section
•
DCV to 1 kV
•
ACV to 750 V
•
DCI / ACI to 3 A
•
Resistance: 0 to 100 MΩ
•
Frequency: 3 Hz to 300 kHz
•
Thermocouple Measure
• Pt100 Measure
RCL Output
•
Capacitance 1 nF to 100 µF
•
Inductance: 1 mH to 10 H
•
Decade Resistance to 1 GΩ
•
Full Resistance: 1 Ω to 120 MΩ
H
igh Current Output
•
DCI / ACI 200 mA to 20 A
GHz Sweep (Option)
• 100 MHz to 2 GHz Sine wave
Protective Earth (PE)
FRQ/Scope Output
•
Amplitude to 200 V /
Frequency to 100 MHz
Aux Output
•
ACV 20 kHz to 1 MHz (2 V max)
•
ACV 20 kHz to 100 kHz (20 V max)
LED Terminal Indicators
