7.9. Oscilloscope Calibration
The xx51Plus is fitted as standard with an oscilloscope calibration feature.
The following functions are provided:
1) Amplitude signals for calibrating the ‘Y’ channels
2) Time Markers for the Time Base calibration
3) Frequency for fixed outputs between 0.1Hz and 100MHz
4) Bandwidth calibration using fast rise
5) Duty Cycle for selection output between 0% and 100% at 3 selectable frequencies

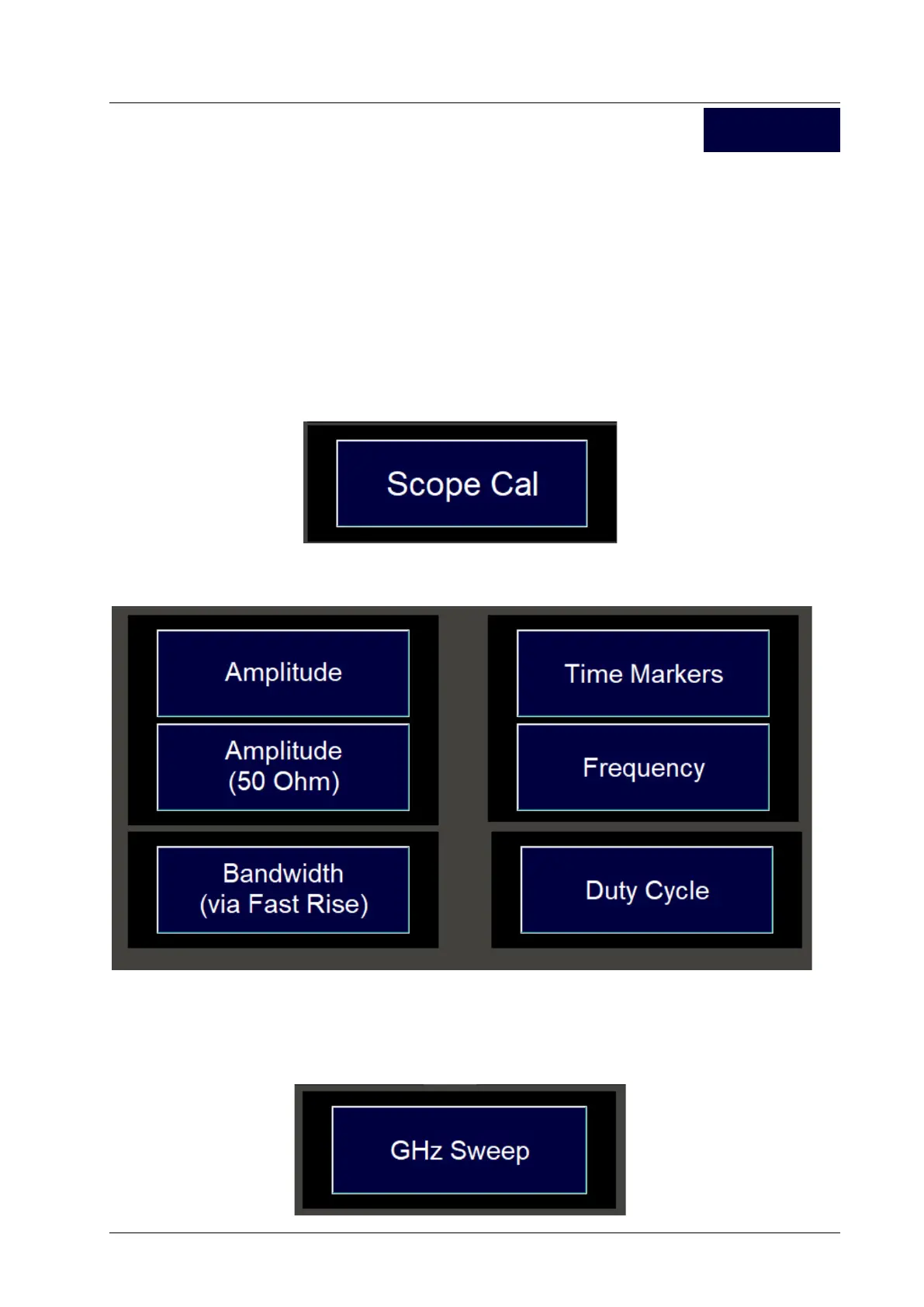

If the Oscilloscope Calibration option is fitted, the menu function selection screen will include a Scope
Cal button in the bottom right corner:
By pressing this button, the Oscilloscope Calibration function selection screen will be displayed:
This selection screen allows access to each of the oscilloscope calibration functions.
The signals are output via the BNC connectors located on the front panel.
Note that if the GHz Sweep option is fitted, the menu will display an extra button:
Scope Cal
