7.6. R-G-C-L Function Selection
R-G-C-L:
• R = Resistance
• G = Conductance
• C = Capacitance
• L = Inductance

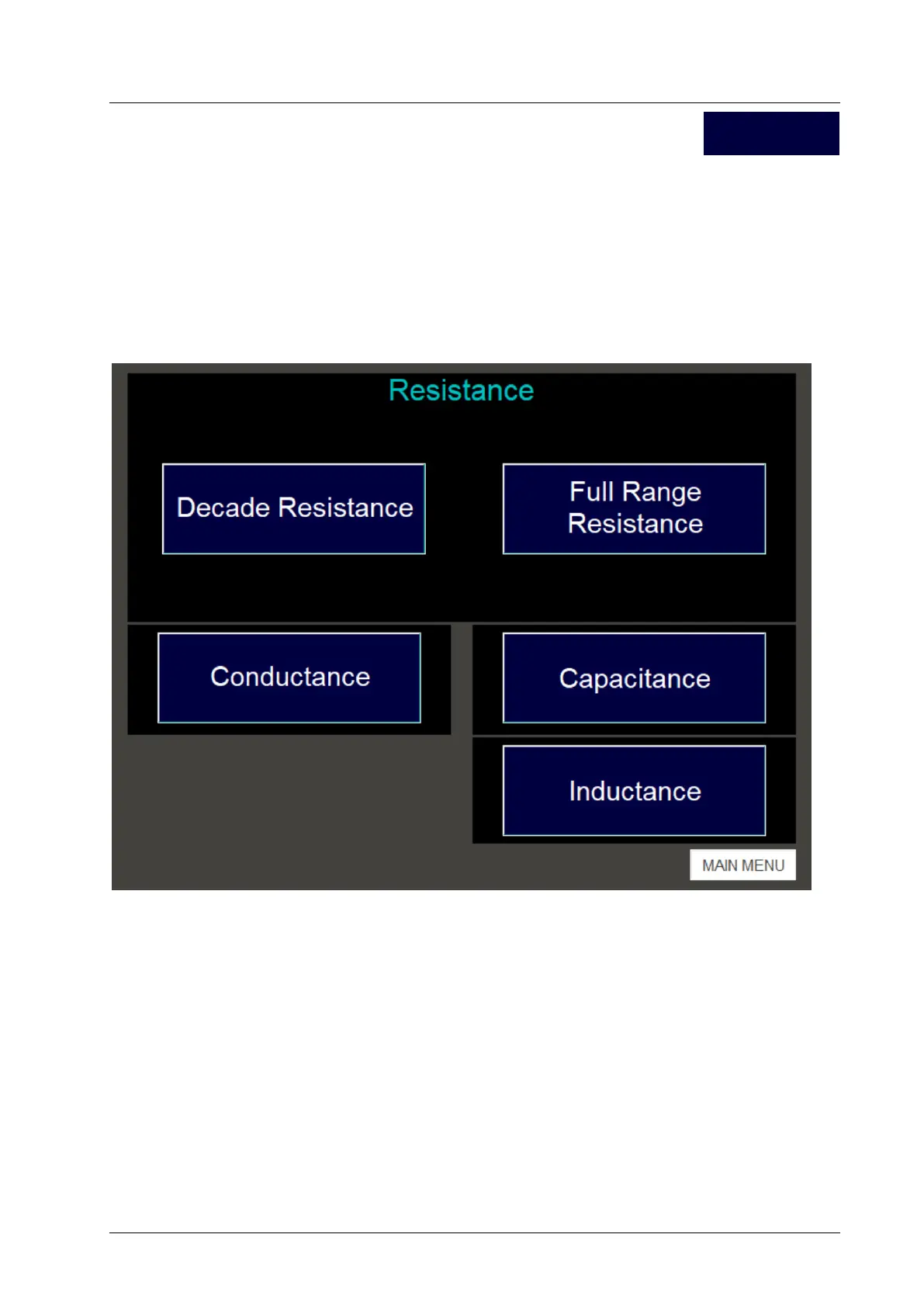

By pressing the R-G-C-L button on the main function selection screen, a new menu is displayed:
This R-G-C-L function selection screen allows selection of any of the resistance, conductance,
capacitance and inductance functions.
The xx51Plus features both Decade Resistance and Full Range (variable) Resistance.
R-G-C-L
