7.5. AC Current

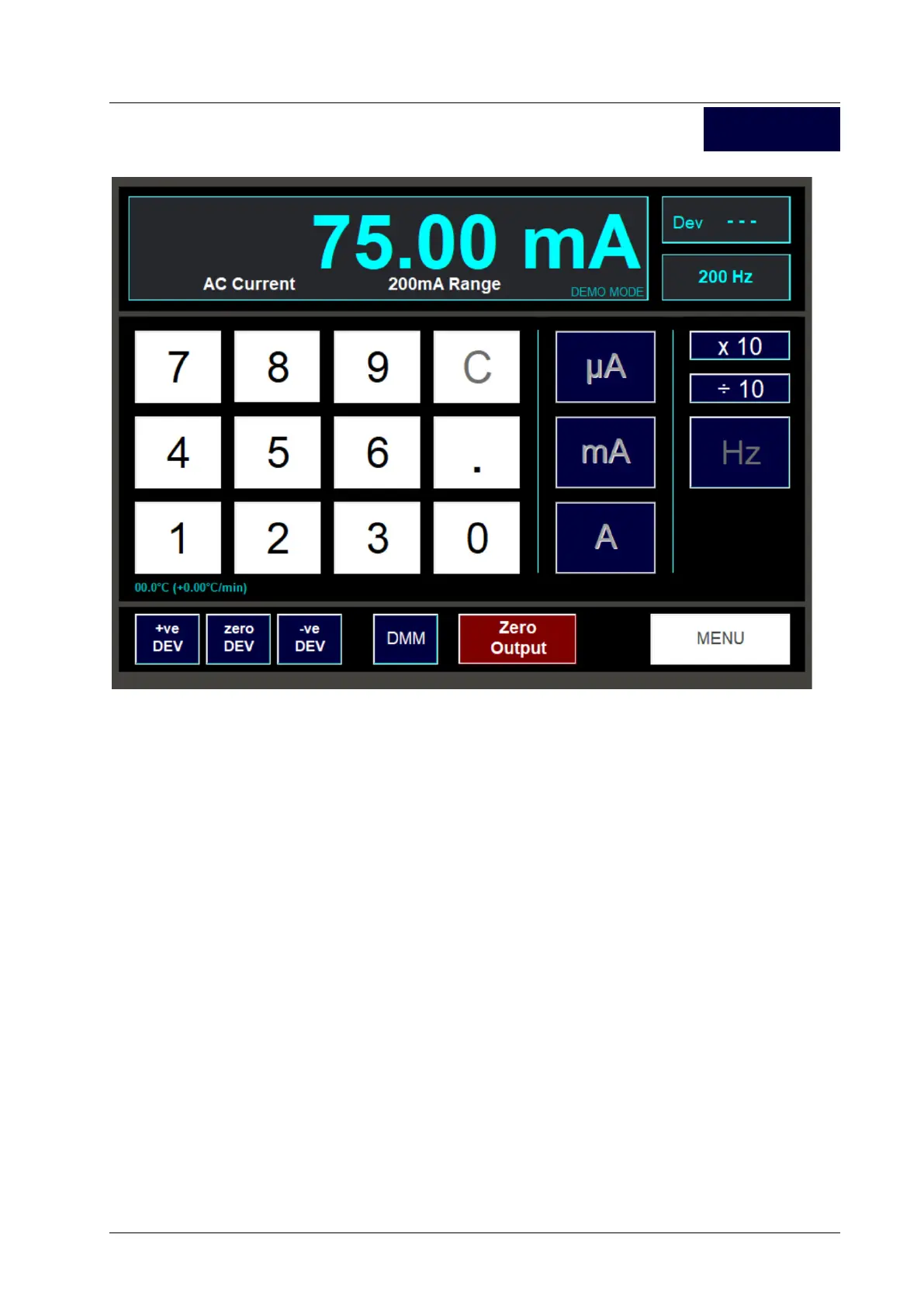

The operation of the ACI screen is the same as DCI. In addition, the frequency of the output may be
set by entering a value using the numeric keypad and then pressing the Hz button. The present
frequency is shown in the top-right corner of the screen.
7.5.1. AC Frequency Limits
Note, the AC frequency limits are:
10Hz – 1kHz 0 - 220mA
20Hz – 500Hz Above 220mA
If the frequency entered is too high or too low for the present output, it will be changed to the nearest
allowed frequency.
Lowest Output Range – 200uA
It should be noted that the xx51, as with other precision AC current sources is not able to output
exactly zero. There is always a small residual current on the output terminals even when zero is
selected. This is typically 6 to 9uA. The unit is calibrated to be correct at 20uA (10% of range full-
scale) but should not be used for accurate calibration below this value.
AC I
