Time Electronics User Manual
5051 Plus and 7051 Plus Multifunction Calibrators v2.1
xx51+ Multifunction Calibrators Page 32 of 64
7.6.3. Decade Resistance
Decade (or fixed) resistance is selected on the R-G-C-L menu.
If the 4-wire decade resistance option is fitted, the function will output through both MAIN and RCL
terminals.

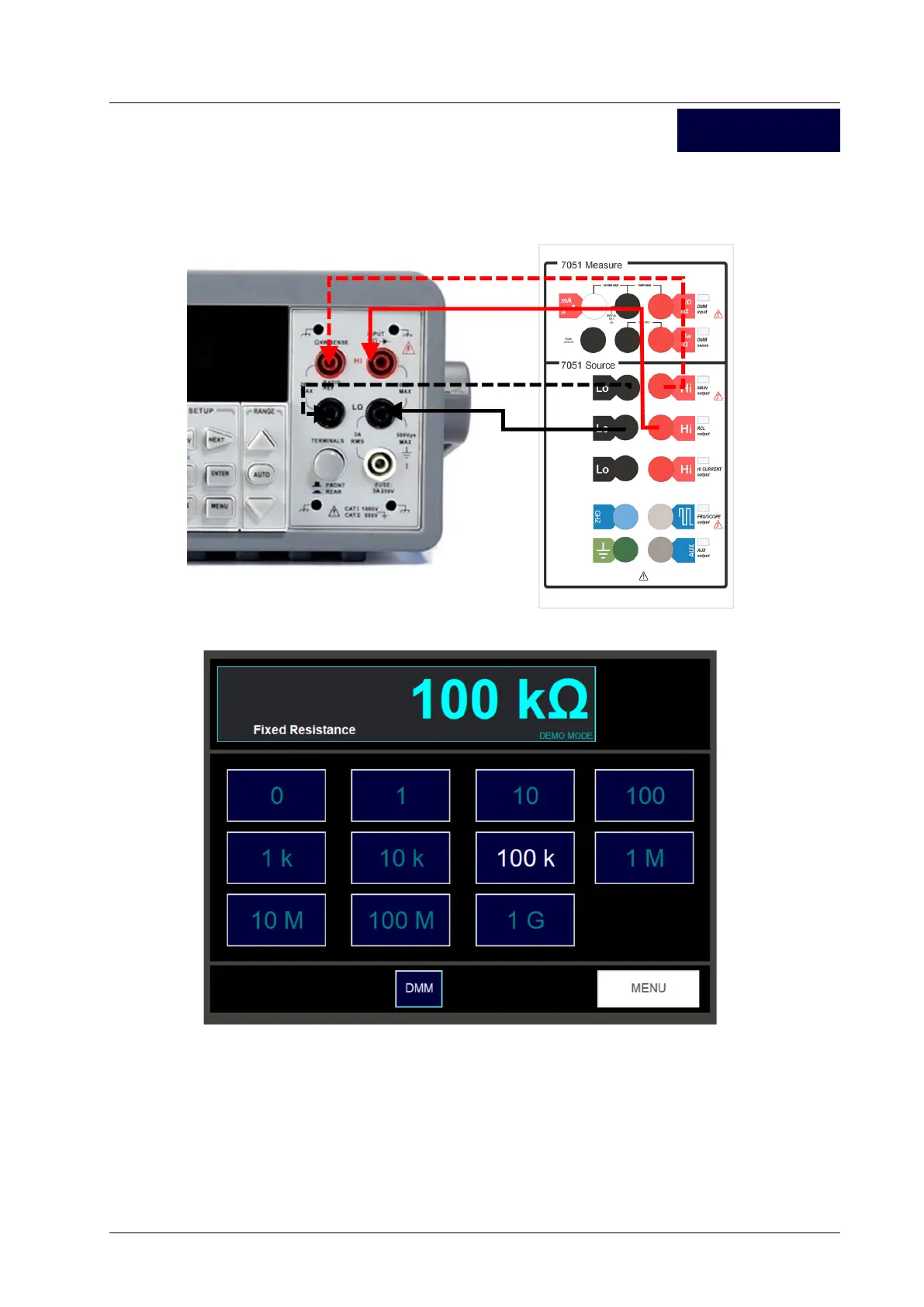

Here is the screen for decade resistance:
7.6.3.1. Setting the Output Value
Press the output button required in the main area of the screen. The new output will be applied to the
output terminals, and the readout at the top of the screen will display the new value.
7.6.3.2. Exiting the Decade Resistance Screen
Press the Menu button to return to the R-G-C-L function selection screen.
Decade Resistance
