10.2. 7112 Transducer Patch Box (7051 Only)

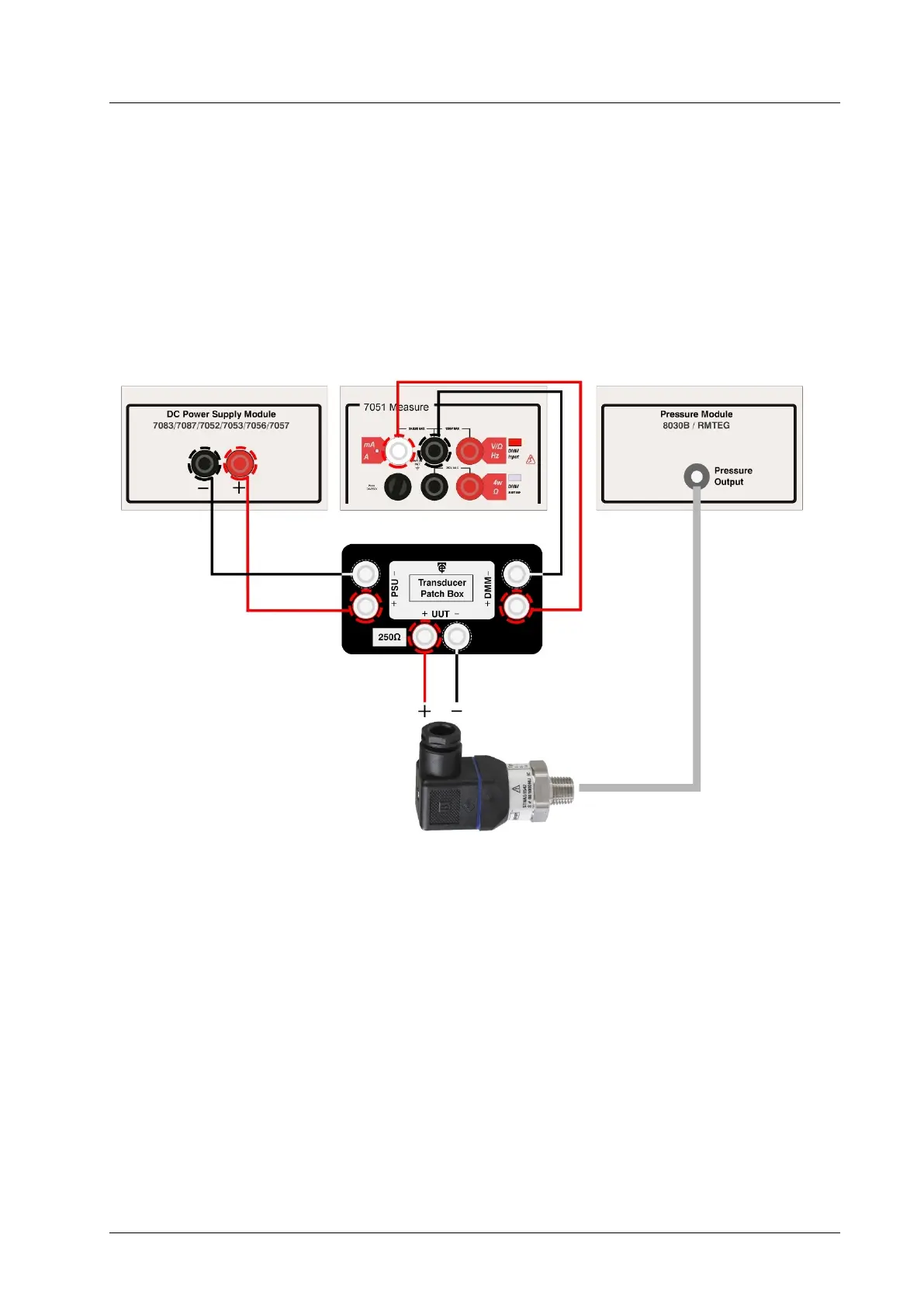

When testing instrumentation such as pressure transmitters you will use a combination of modules.
The optimal set up utilizes the 7112 transducer patch box also.
Connect a DC power supply (24V common) to the Patch Box “PSU” sockets.
Connect the Patch Box “UUT” sockets to the transmitter under test.
Connect the Patch Box “DMM” sockets to the 7051 mA Measure section.
Apply pressure to the transmitter with a pressure module such as 8030B or RMTEG.
