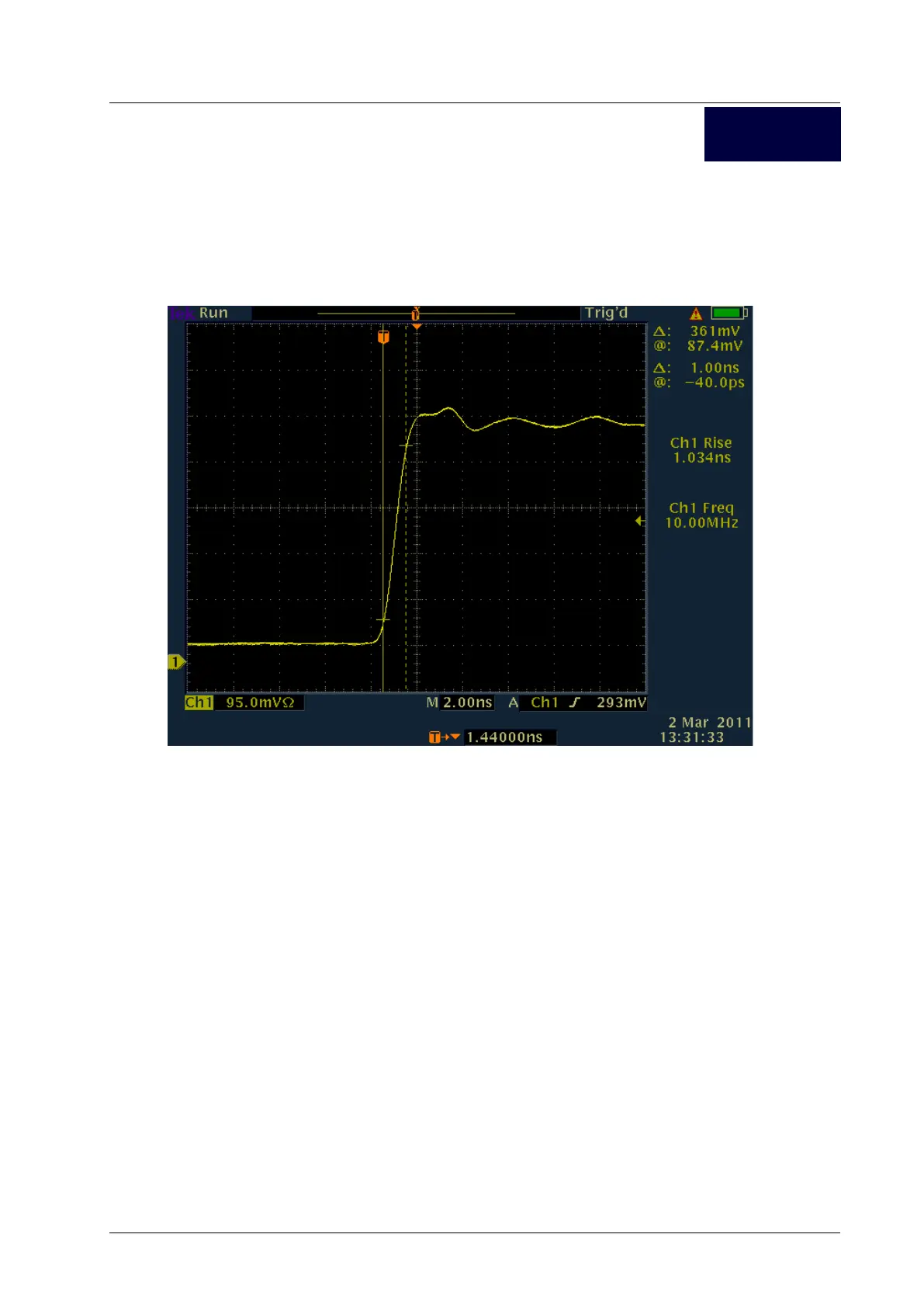

Shown below is an example of bandwidth determination of a TEK 3032 oscilloscope using the xx51’s
fast signal.
The measured rise time is about 1ns If 1ns is entered into the xx51’s bandwidth screen, a bandwidth
of 350 MHz is shown, which is approximately correct for this scope.
7.9.6.1. Exiting the Bandwidth Screen
Press the Menu button to return to the Scope Cal function selection screen.
Bandwidth
(via fast rise)
