3-70
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
Tips

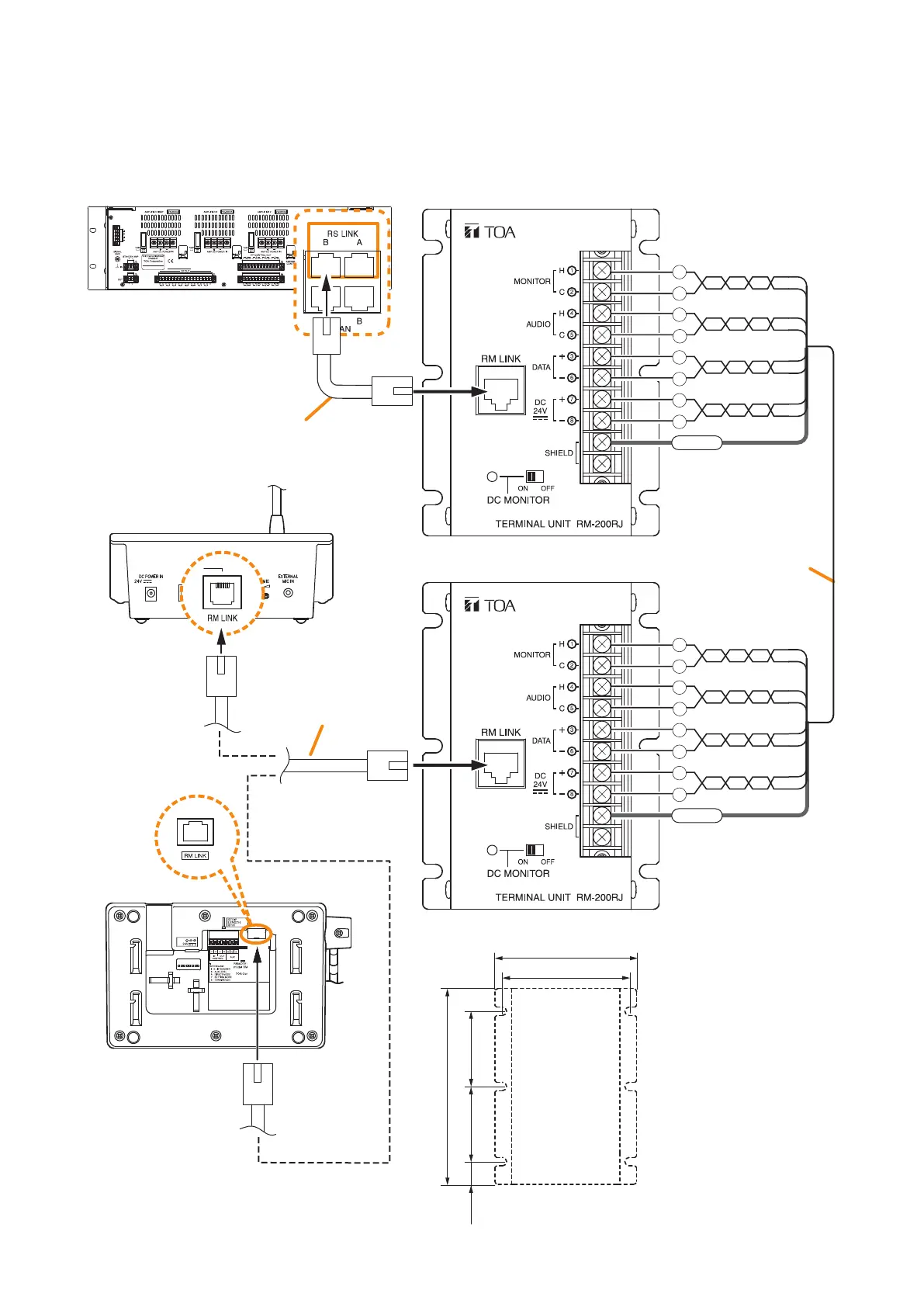

• When using a shielded CPEV cable, it is recommended to use an optional RM-200RJ Terminal Unit that
serves wiring conversion between the CPEV cable and STP Category 5 straight cable (with RJ45 connectors).
Connect the CPEV cable between the same terminals of both RM-200RJ units pairing cables 1 with 2, 4 with
5, 3 with 6, and 7 with 8 as shown below.
Over 4-pair shielded
CPEV cable (main cable)
STP Category 5 straight cable
(with RJ45 connectors)
RM-300X rear
44.5
116
44.513.5
75
84
[RM-200RJ Mounting dimensions]
RM-200RJ
RM-200RJ
1
2
5
6
3
4
7
8
Shield
1
2
5
6
3
4
7
8
Shield
STP Category 5
straight cable
(with RJ45 connectors)
or
Tip
The RM-200RJ can be
installed on a desk or to
a wall.
RM-500 bottom
VX-3000F
