2-19
Chapter 2 NOMENCLATURE AND FUNCTIONS
9. Failure indicator (Yellow/Red)
Flashes yellow if some problem within the system
is detected.
This indicator will light yellow if the signal to the
VX-3000F to which the RM-200SF is connected
is interrupted for 5 seconds or more.
Lights red when the unit is placed in reset state by
pressing the Reset Switch (11).
10. CPU indicator (Red)
Lights red when any one of the CPU switches
on the RM-200SFs connected within the system
is set to OFF or when the all-zone emergency
broadcasts is being made by any one of the RM-
300Xs connected within the system.
11. Reset switch
Used to reactivate the RM-200SF unit.
Holding down both this switch and the R3 key
of the Function keys (14) for 2 seconds or more
causes the Failure Indicator (9) to light red,
placing the RM-200SF in reset state.
12. Status indicators (Red/Yellow/Green)
Light, ash, or go off depending on the current
operation state of function keys, failure state or
emergency state. (See the separate Operating
Instructions, "INDICATOR STATUS OF REMOTE
MICROPHONES.")
13. Selection indicators (Green)
Light or go off depending on the current operation
state of function keys. (See the separate Operating
Instructions, "INDICATOR STATUS OF REMOTE
MICROPHONES.")
14. Function keys (R1 – R3)
Positioned in top-down order (R1, R2, R3).
Pressing a specic function key executes the
function that has been assigned to that key by
the VX-3000 Setting Software. Assignment of
functions to specic keys is done using the VX-
3000 Setting Software. (See the separate Setting
Software Instructions, "RM Event Settings.")
15. Microphone indicator (Green)
Lights or goes off depending on the current
operation state of the Talk key.
16. Broadcast Status Indicator (Yellow/Green)
Lights, ashes, or goes off depending on the
current operation state of the Talk key.
17. Talk key
Press this key to broadcast a voice announcement.
It must be pressed continuously for the duration
of the broadcast.
The talk key operation method is xed to "PTT,"
and can not be changed.
18. M icrophone
Used for voice announcements.
EXTENSION
19

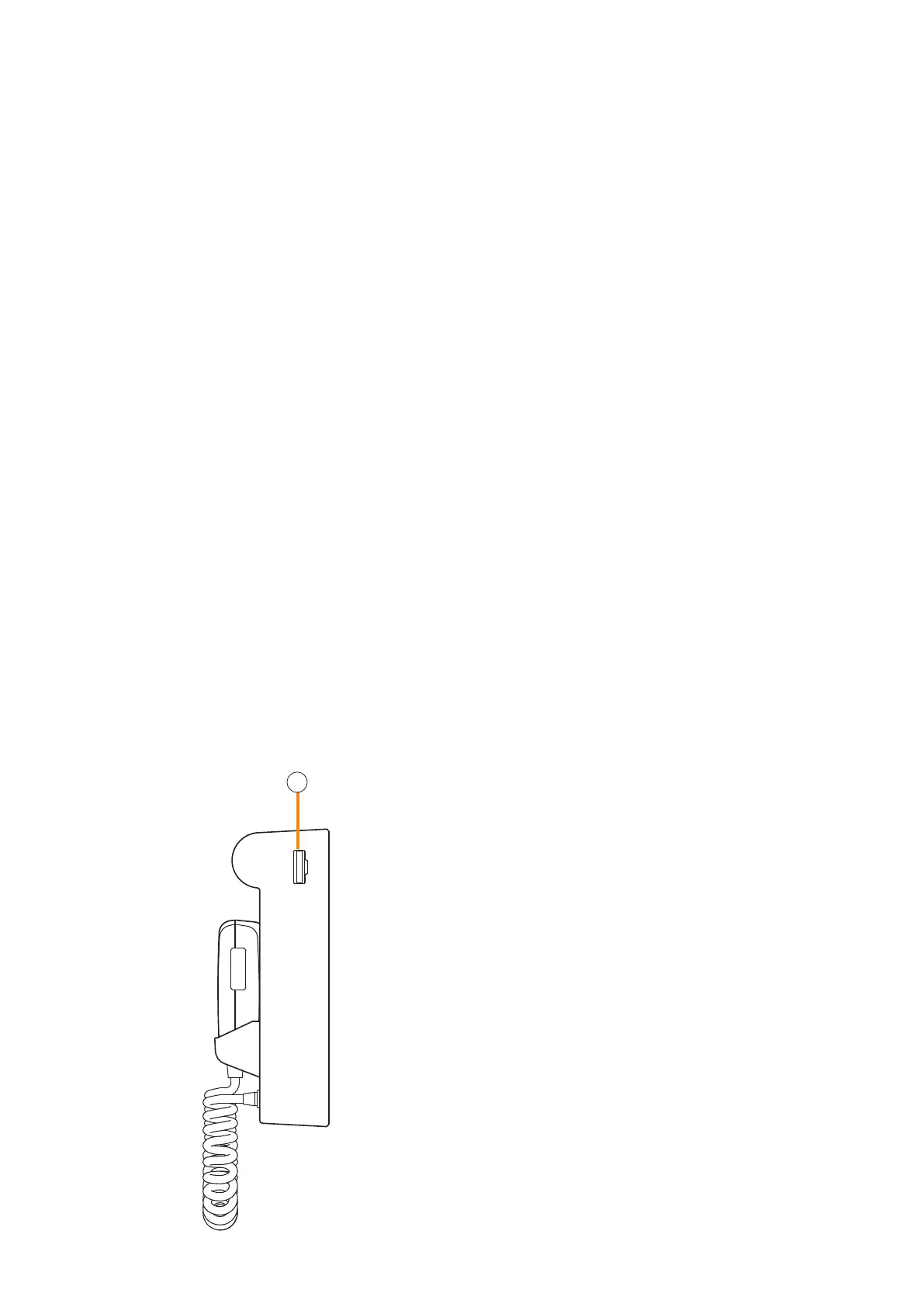

19. RM-320F connection terminal
Connect the RM-320F Remote Microphone
Extension unit to this terminal. (See p. 2-21.)
[Side]
