5-68
dummyheaddummyhead
FUEL SYSTEM

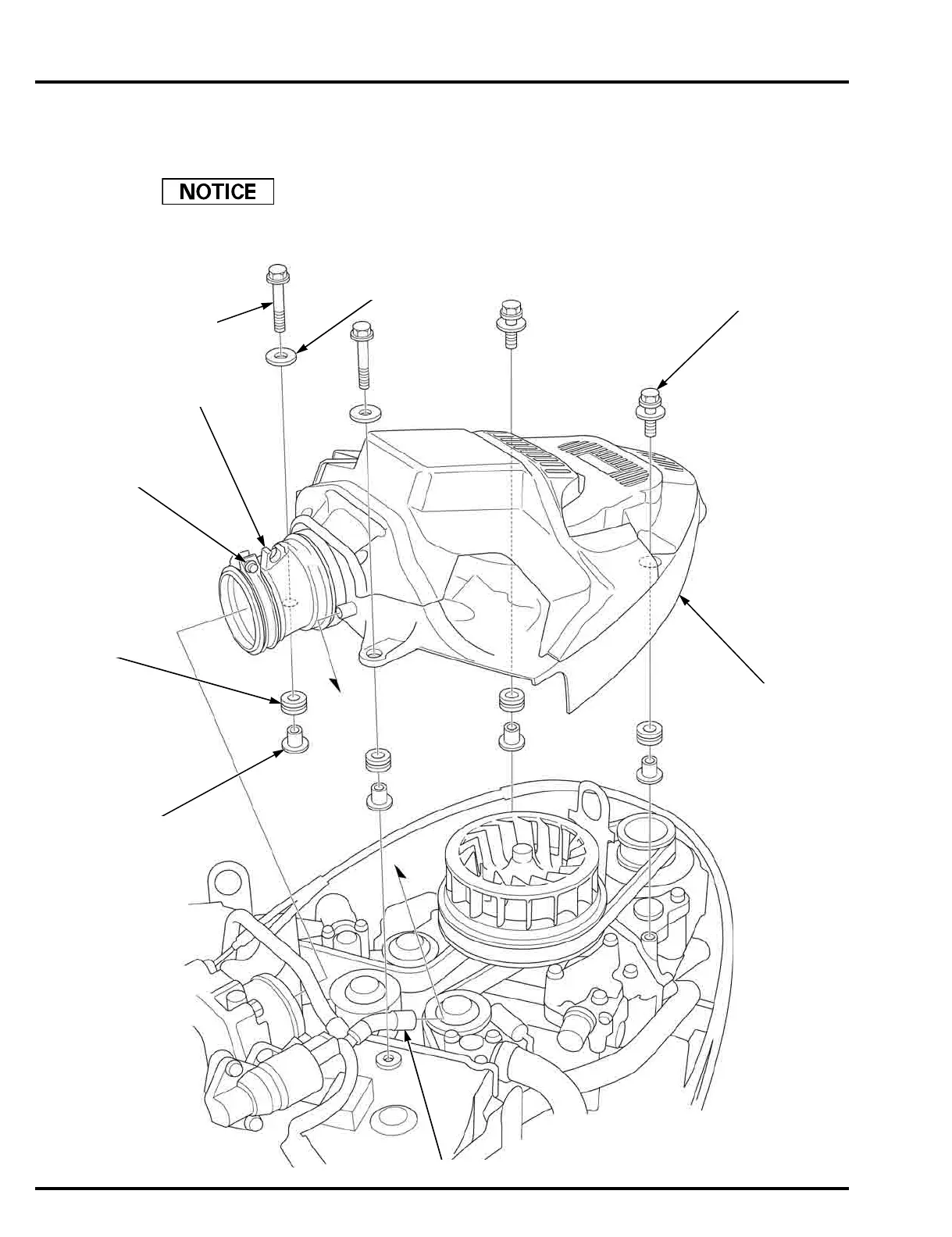

COOLING FAN COVER REMOVAL/
INSTALLATION
REMOVAL
• Do not disassemble the cooling fan cover assembly.
BOLT (6 x 60 mm) (2)
COOLING FAN COVER
Assy.
BOLT/WASHER (6 x 25 mm) (2)
HOSE CLAMP
AIR FLOW
CLAMP SCREW
GROMMET (4)
COLLAR (4)
WASHER (6 mm) (2)
CRANKCASE BREATHER HOSE
